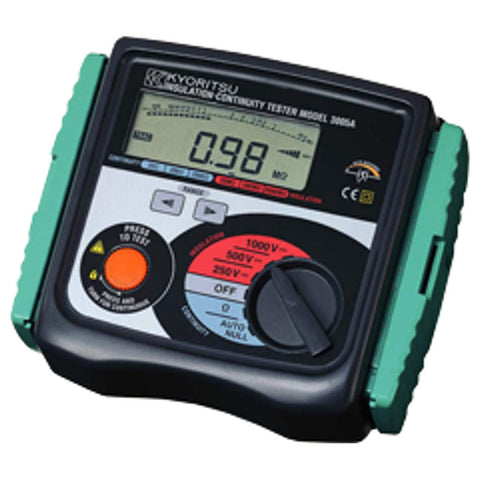

Kyoritsu Insulation Tester Digital 3005A

Kyoritsu Insulation Tester Digital 3005A


₹ 44,350.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Bargraph to display insulation resistance

  • Displays the value of external AC voltage along with flashing symbol

  • Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value

  • Live circuit warning beeper

  • Releasing the test button automatically discharges the charges stored in the circuit under test

  • 200mA continuity measuring current to IEC 61557

  • Minimum 1mA current on insulation tests to IEC 61557

Product Specification

Brand

Kyoritsu

Product Type

Insulation Tester Digital

Product Model

3005A

Insulation Resistance

Test Voltage

250V/500V/1000V

Measuring Ranges<Br>(Mid-Scale Value)

20MΩ/200MΩ/2000MΩ

Output Voltage On Open Circuit

Rated test voltage+20%, -0%

Nominal Current

1mA DC min.

Output Short Circuit Current

1.5 mA DC approx.

Accuracy

±1.5%rdg±5dgt (20MΩ/200MΩ)
±10%rdg±3dgt (2000MΩ)

Continuity Test

Measuring Ranges<Br>(Mid-Scale Value)

20Ω/200Ω/2000Ω

Output Voltage On Open Circuit

7 - 12V DC

Measuring Current

200mA DC min.

Accuracy

±1.5%rdg±5dgt (20Ω)
±1.5%rdg±3dgt (200Ω/2000Ω)

AC Voltage

AC Voltage Range

0 - 600V AC

Accuracy

±5%rdg±3dgt

General

Safety Standard

IEC 61010-1 CAT III 300V Pollution Degree 2
IEC 61010-2-031 IEC 61557-1/2/4

Ip Rating

IEC 60529-IP54

Emc Standard

IEC 61326-1

Power Source

R6 (AA) (1.5V) × 8

Dimensions

167(L) × 185(W) × 89(D)mm

Weight

970g approx

Included Accessories

7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 8, Shoulder Strap
Instruction Manual

Warranty

As Per Manufacturer TeRMS And Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan

Importer Details

Kyoritsu KEW India Instruments PVT. LTD. 4, Sardar Patel Nagar, Navrangpura, Ahmedabad, Gujarat 380006

Country of Origin

Japan
