48 hours

SKU # 1000067358

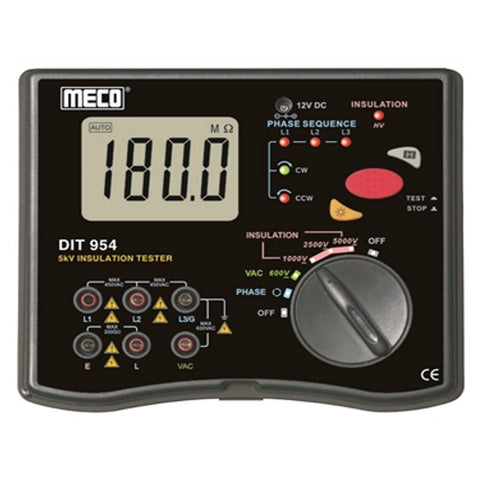

Meco Digital Insulation Tester With AC Voltage 5kV-200GΩΩ DIT 954

Meco Digital Insulation Tester With AC Voltage 5kV-200GΩΩ DIT 954


₹ 14,160.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 3½ Digit 1999 Count Large LCD Display

  • Range Selection & Single Person Push Button Operation

  • LCD with Green Backlight Function with Indicator Switch

  • Data Holding Function

  • Display with Annunciators

  • Measurement of AC Voltage upto 600VAC

  • Measurement of Phase Sequence Between (Phase - Phase Voltage) with LED Indicators & Beep Facility

  • Auto Range (Insulation Test)

  • Red LED Indicator for HV (High Voltage)

  • Inbuilt Protection Circuit to prevent the harm of reverse Voltages

  • Battery Operated with AC Adaptor

  • Suitable for Calculating PI & DAR (Manually)

  • As per EMC Standard IEC 61326-1 Class B

  • Over Voltage CAT III, 600V

  • As per Safety Standard IEC/EN 61010-1 & 61010-31

  • IP 44 Protection

Product Specification

Brand

Meco

Product Model

DIT 954

Product Type

Digital Insulation Testers

Electrical Specification

Test voltage

Range

Accuracy

Resolution

Insulation Resistance

1000V / 2500V / 5000V DC

0.1M V to 200GV

±(3%rdg+5 dgt.)

0.01MV

AC Voltage Measurement

0 - 600VAC (40 - 60Hz)

-

±(2%rdg+5 dgt.)

1V

Phase Sequence Test

100V - 450V (Phase - Phase) 40 - 60Hz

-

-

-

General Specifications

Display

31⁄2 Digit (1999 Counts) Large LCD Display with 29mm Digit Height

Accuracy

±(3%rdg+5 digit) for Insulation Resistance Range

±(2%rdg+5 digit) for AC Voltage Measurment

Over-Range Indication

'1' is displayed

Operating Temperature

0°C to 40°C (RH < 80%)

Storage Temperature

- 10°C to 50°C (RH < 75%)

Power

12V (8X1.5V) (R6AA size batteries) or AC Adaptor 12VDC

Standard Accessories

Insulation Resistance Measurement Test Leads for High Voltage x 1 Set, Phase Sequence Measurement Wires x 1 set, AC Adaptor x 1, 1.5V AA Batteries x 8, Heavy Duty Carry Case x 1, Instruction Manual x 1

Dimensions

190 x 155 x 75mm (approx.)

Weight

900 gms including batteries (approx. )

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Packer Details

Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300

Country of Origin

India
