SKU # 1000071584

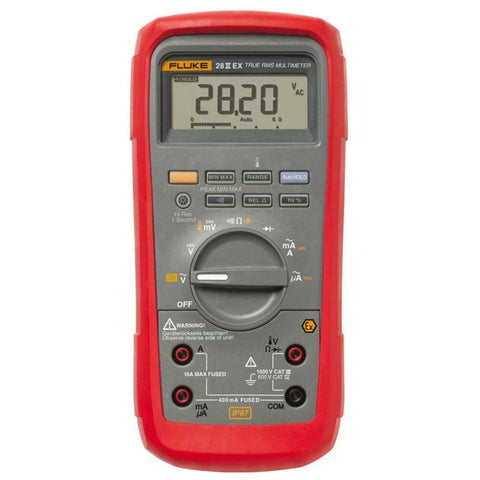

Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
A completely sealed, IP67 rated case
-
Withstands drops up to 10 ft or 3 m (with holster)
-
Dustproof per IEC 60529 IP6x
-
Waterproof per IEC 60529 IPx7
-
CAT III 1000 V, CAT IV 600 V
-
Reversible holster for added protection of the display when not in use
-
4-1/2 digit mode for precise measurements (20 000 counts)
-
True-rms ac voltage and current for accurate measurement on nonlinear signals
-
Measures up to 1000 V and 10A AC and DC (note that Ex zones require reduced measurements)
-
Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)
-
Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies
-
Resistance, continuity and diode test
-
10 000 μF capacitance range for components and motor caps
-
Conductance measurements for high resistance or leakage tests
-
Min/Max-Average and Peak capture to record transients and variations automatically
-
Relative mode to remove test lead interference on resistance measurements
-
Auto and manual ranging for maximum flexibility
-
Input Alert protects you by chirping and flashing “Lead when leads are plugged into the wrong inputs
Product Specification
|
Brand |
Fluke |
|
|
Product Type |
Digital Multimeter |
|
|
Product Model |
28 II Ex |
|
|
DC Voltage |
Range |
0.1 mV to 1000 V |
|
Accuracy |
±(0.05% + 1) |
|
|
AC Voltage |
Range |
0.1 mV to 1000 V |
|
Accuracy |
±(0.7% + 4) |
|
|
DC Current |
Range |
0.1 μA to 10 A |
|
Accuracy |
±(0.2% + 4) |
|
|
AC Current |
Range |
0.1 μA to 10 A |
|
Accuracy |
±(1% + 2) |
|
|
Resistance |
Range |
0.1 Ω to 50 MΩ |
|
Accuracy |
±(0.2% + 1) |
|
|
Conductance |
Range |
60.00 nS |
|
Accuracy |
±(1.0% + 10) |
|
|
Diode Test |
Range |
2.0 V |
|
Accuracy |
±(2.0% + 1) |
|
|
Duty Cycle |
Range |
0.0% to 99.9% |
|
Accuracy |
Within ±(0.2% per kHz + 0.1%) For Rise Times <1 µs |
|
|
Capacitance |
Range |
10 nF to 9999 μF |
|
Accuracy |
±(1% + 2) |
|
|
Frequency |
Range |
0.5 Hz to 199.99 kHz |
|
Accuracy |
±(0.005% + 1) |
|
|
Temperature |
Range |
-200°C to +1090°C (-328°F to +1994°F) |
|
Accuracy |
±(1% + 10)°C [±(1% + 10)°F] |
|
|
Display Counts |
6000 Counts/19,999 Counts In High-Resolution Mode |
|
|
Peak Capture |
Record Transients Up To 250 us |
|
|
Min/Max/Avg Recording |
Display Signals Up To Approximately 100 ms |
|
|
General Specifications |
||
|
Power |
Three AAA Batteries |
|
|
Battery Life: 400 Hours |
||
|
Display |
LCD, With Backlight |
|
|
External Protection |
Rubber Holster |
|
|
Size With Holster (H x W x L) |
6.4 x 10.0 x 19.8 cm (2.5 x 3.9 x 7.8 in) |
|
|
Safety Certifications |
||
|
ATEX |
{Ex} II 2G Ex ia IIC T4 Gb |
|
|
{Ex} I M1 Ex ia I Ma |
||
|
NEC-500 |
Class I, Div 1, Groups A-D, 130°C |
|
|
IECEx |
Ex ia IIC T4 Gb |
|
|
Ex ia I Ma |
||
|
GOST R Ex |
1Ex ia IIC T4 Gb X |
|
|
PO Ex ia I Ma X |
||
|
IP6X |
||
|
Weight With Holster |
700 g (1.54 lb) |
|
|
Warranty |
As Per Manufacturer Terms and Condition |
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Multimeter |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
