SKU # 1000071818

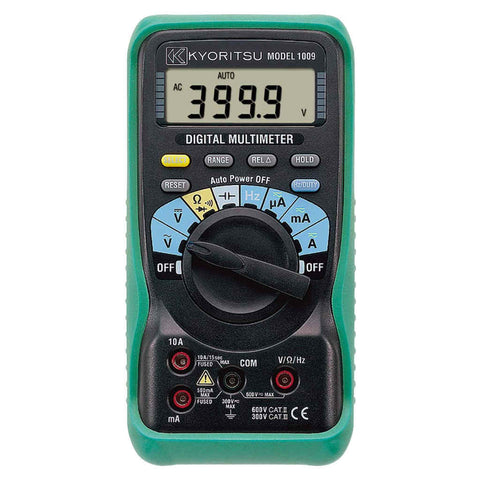

Kyoritsu Digital Multimeter 1009

Kyoritsu Digital Multimeter 1009

₹ 8,110.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

Display : 4000 counts
Auto range and manual range selector provided.(with range hold feature)
Resistance range provides audible continuity test
Automatically turns power off in about 30 minutes to conserve battery life
Direct current measurement up to 10A AC and DC
With Holster

Product Specification

Brand	Kyoritsu
Product Type	Digital Multimeter
Product Model	1009
DC V	400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V)
AC V	400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 – 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V)
DC A	400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA)±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A)
AC A	400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A)
Ω	400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ)
Continuity Buzzer	400Ω (Buzzer sounds below 100Ω)
Diode Test	1.5V Release Voltage:Approx. 0.4mA Test Current
Capacitance	40/400nF/4/40/100µF
Frequency	5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
Duty	0.1 – 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Applicable Standards	IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326
Power Source	R6 (1.5V) × 2
Dimensions	161(L) × 82(W) × 50(D)mm
Weight	Approx. 280g
Included Accessories	7066A (Test leads) 8919 (Ceramic fuse [10A/600V])× 1 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual
Warranty	As Per Manufacturer TeRMS And Conditions

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Digital Multimeter
Manufacturer Details	Kyoritsu 480 Sakado, Uwa-cho, Seiyo City, Ehime, 797-0045 Japan
Importer Details	Kyoritsu KEW India Instruments PVT. LTD. 4, Sardar Patel Nagar, Navrangpura, Ahmedabad, Gujarat 380006
Country of Origin	Japan
