48 hours

SKU # 1000017469

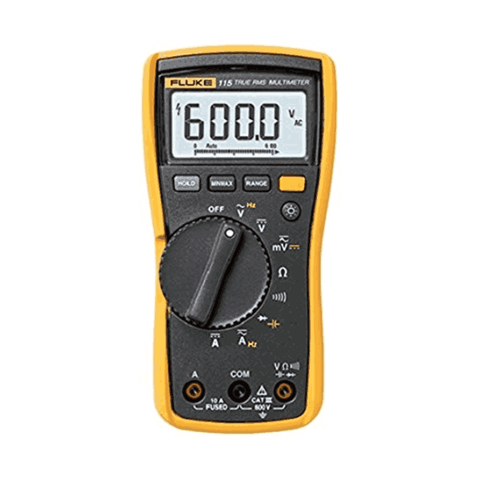

Fluke True-RMS Digital Multimeter 115

Fluke True-RMS Digital Multimeter 115


₹ 14,900.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The Fluke 115 True RMS digital multimeter provides the perfect answer

  • Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications

  • Measures resistance, continuity, frequency, and capacitance

  • Provides Min/Max/Average with elapsed time to record signal fluctuations

  • Comes with a holster with probe holders for easy storage

  • Features a compact ergonomic design for one-handed operation

  • Fits into optional ToolPak™ magnetic hanger for hands-free operation

  • CAT III 600 V safety rated

Product Specification

Brand

Fluke

Type

Resistance Meter

Model

115

Maximum Voltage Between Any Terminal And Earth Ground

600 V

Surge Protection

6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2

Display

Digital: 6,000 counts, updates 4 per second

Bar Graph

33 segments, updates 32 per second

Operating Temperature

-10°C to + 50°C

Storage Temperature

-40°C to + 60°C

Battery Type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Dc Millivolts

Range/Resolution

600.0 mV / 0.1 mV

Accuracy

± ([% of reading] + [counts]): 0.5% + 2

Dc Volts

Range/Resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V

Accuracy

± ([% of reading] + [counts]): 0.5% + 2

Ac Millivolts1 True Rms

Range/Resolution

600.0 mV / 0.1 mV

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

Ac Volts1 True Rms

Range/Resolution

6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)

Continuity

Range/Resolution

600 Ω / 1 Ω

Accuracy

Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.

Ohms

Range/Resolution

600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ

Accuracy

0.9% + 1

Range/Resolution

40.00 MΩ / 0.01 MΩ

Accuracy

5% + 2

Diode Test

Range/Resolution

2.00 V / 0.001 V

Accuracy

0.9% + 2

Capacitance

Range/Resolution

1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF

Accuracy

1.9% + 2

Range/Resolution

> 1000 μF

Accuracy

5% + 20%

Lo-Z Capacitance

Range

1 nF to 500 μF

Accuracy

10% + 2 typical

Ac Amps True Rms
(45 Hz To 500hz)

Range/Resolution

6.000 A / 0.001 A
10.00 A / 0.01 A

Accuracy

1.5% + 3
20 A overload for 30-seconds max

Dc Amps

Range/Resolution

6.000 A / 0.001 A
10.00 A / 0.01 A

Accuracy

1.0% + 3 ,20 A overload for 30-seconds max

Hz (V Or A Input)2

Range/Resolution

99.99 Hz / 0.01 Hz
999.9 Hz / 0.01 Hz
9.999 kHz / 0.001 kHz
50 kHz / 0.01 kHz

Accuracy

0.1% + 2


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Multimeter

Manufacturer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Packer Details

Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070

Country of Origin

India
