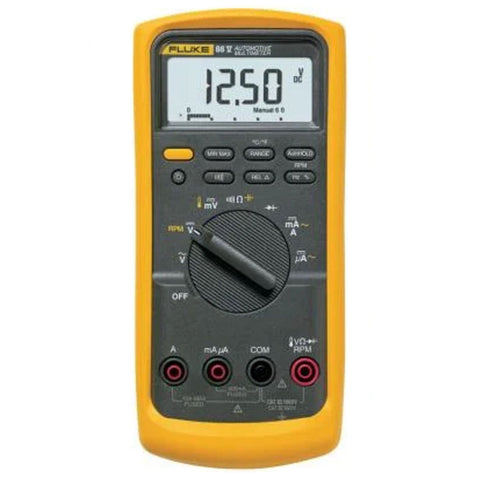

Fluke Deluxe Automotive Multimeter 88V
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Fluke 88V meter has measurement functions, troubleshooting features, and accuracy levels needed to solve problems on conventional and hybrid vehicles
-
The 88V is the most powerful automotive multimeter ever offered by Fluke
-
In addition to standard multimeter features such as the ability to measure voltage, current, continuity, and resistance, the 88V can perform
-
Pulse width
-
Duty cycle
-
Min/Max/Average recording
-
Diode tests
-
The pulse width function provides millisecond resolution for troubleshooting fuel injectors
-
Automotive measurements
-
The 88V meter can take care of many automotive needs, getting into more of the digital multimeters measurement capabilities - it can measure voltage up to 1000 V AC and DC, current up to 10 A, 20 A for up to 30 seconds and frequency to 200 kHz and % duty cycle. Add those features to RPM measurements with optional inductive pickup and millisecond pulse width measurements for fuel injectors to name a few
-
The 88V comes packed with the functions you need
-
Temperature measurements with optional temperature probe
-
Analog bar graph to track changing or unstable signals
-
Min/Max/Average recording with Min/Max Alert to capture variations automatically
-
Peak Min/Max to record transients as fast as 250 μs
-
88V multimeter designed for the garage
-
While working in a garage, the large display digits can help you focus on the vehicle while still being able to read the numbers
-
Plus, the two-level bright white backlight offers the additional visibility you may need
-
An optional magnetic hanger lets you hang the meter from most steel surfaces for easy set-up and viewing
-
The 88V is designed to be used in high energy environments like those found on hybrid vehicles
Product Specification
|
Brand |
Fluke |
|
|
Product Type |
Automotive Multimeter |
|
|
Product Model |
88V |
|
|
DCV |
Maximum Voltage |
1000 V |
|
Accuracy |
±(0.1% + 1) |
|
|
Best Resolution |
0.01 mV |
|
|
ACV |
Maximum Voltage |
1000 V |
|
Accuracy |
±(0.5% + 2) |
|
|
AC Bandwidth |
5 kHz |
|
|
Best Resolution |
0.01 mV |
|
|
DC Current |
Maximum Amps |
10 A |
|
Amps Accuracy |
±(0.4 % + 2) |
|
|
Best Resolution |
0.001 mA |
|
|
AC Current |
Maximum Amps |
10 A |
|
Amps Accuracy |
±(1.2% + 2) |
|
|
Best Resolution |
0.001 mA |
|
|
Resistance |
Maximum Resistance |
50 MΩ |
|
Accuracy |
±(0.4% + 1) |
|
|
Best Resolution |
0.1 Ω |
|
|
Capacitance |
Maximum Capacitance |
9,999 µF |
|
Accuracy |
±(1% + 2) |
|
|
Best Resolution |
0.01 nF |
|
|
Frequency |
Maximum Frequency |
200 KHz |
|
Accuracy |
±(0.005% + 1) |
|
|
Best Resolution |
0.01 Hz |
|
|
Duty Cycle |
Maximum Duty Cycle |
99.9% |
|
Accuracy |
Within 2% per KHz + 0.1% |
|
|
Best Resolution |
0.1% |
|
|
Temperature Measurement |
-200.0°C
– 1090°C |
|
|
80 BK Temperature Probe |
-40
°C – 260°C |
|
|
Conductance |
Maximum Conductance |
60.00 nS |
|
Accuracy |
±(1.0% + 10) |
|
|
Maximum Resolution |
0.01 nS |
|
|
Operating Range |
Operating Temperature |
-20°C – 55°C |
|
Storage Temperature |
-20°C – 55°C |
|
|
Physical |
5.2
x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in) |
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Multimeter |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
