Out of Stock!
SKU # 1000071577

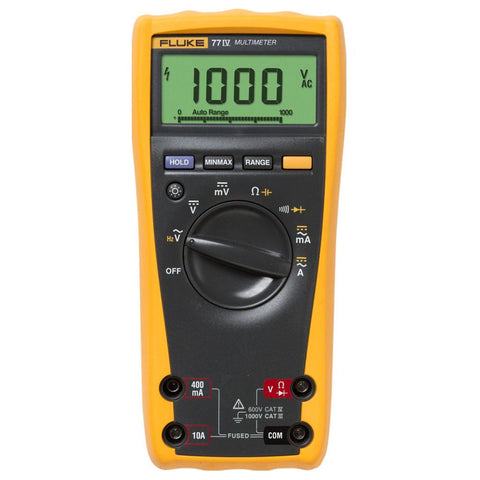

Fluke Digital Multimeter 77 IV
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The Fluke 77 IV digital multimeter has the features needed to repair most electrical and electronic problems
-
This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view
-
Wide 1000 V measurement range
-
Average responding AC measurements
-
0.3% accuracy
-
10 Amps continuous (20 A for 30 seconds)
-
Frequency and capacitance
-
Resistance and continuity
-
Large display
-
Backlight for work in dim areas
-
Min / Max to record signal fluctuations
-
Ergonomic overmolded housing with integrated probe holders
-
Free your hands with the optional TPAK magnetic hanger
-
Auto and Manual ranging
-
Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
Product Specification
|
Brand |
Fluke |
|
|
Product Type |
Digital Multimeter |
|
|
Product Model |
77 IV |
|
|
Voltage DC |
Range |
6.000 V – 1000 V |
|
Best Accuracy |
±(0.3% + 1) |
|
|
Best Resolution |
0.1 mV |
|
|
Voltage AC |
Range |
600.0 mV – 1000V |
|
Best Accuracy |
±(2.0% + 2) |
|
|
Best Resolution |
1.0 mV |
|
|
Amps AC |
Range |
60.00 mA – 10 A |
|
Best Accuracy |
2.5% + 2 |
|
|
Best Resolution |
0.01 mA |
|
|
Amps DC |
Range |
60.00 mA – 10A |
|
Best Accuracy |
1.5% + 2 |
|
|
Best Resolution |
0.01 mA |
|
|
Resistance |
Range |
600.0 Ω – 50 MΩ |
|
Best Accuracy |
±(0.5% + 1) |
|
|
Best Resolution |
0.1 Ω |
|
|
Capacitance |
Range |
1nF – 9,999 μF |
|
Best Accuracy |
±(1.2% + 2) |
|
|
Best Resolution |
1 nF |
|
|
Frequency |
Range |
99.99Hz – 99.99kHz |
|
Best Accuracy |
±(0.1% + 1) |
|
|
Best Resolution |
0.01 Hz |
|
|
General Specifications |
||
|
Maximum Voltage Between Any Terminal And Earth Ground |
1000 V |
|
|
Surge Protection |
8 kV peak per IEC 61010 |
|
|
Ohms Fuse for mA Inputs |
440 mA, 1000 V FAST Fuse |
|
|
Ohms Fuse for A Inputs |
11 A, 1000 V FAST Fuse |
|
|
Display |
Digital |
6000 Counts, Updates 4/Sec |
|
Bar Graph |
33 Segments, Updates 32/Sec |
|
|
Frequency |
10,000 Counts |
|
|
Capacitance |
1,000 Counts |
|
|
Altitude |
Operating |
2,000 Meters |
|
Capacitance |
12,000 Meters |
|
|
Temperature |
Operating |
-10°C to + 50°C |
|
Storage |
-40°C to + 60°C |
|
|
Temperature Coefficient |
0.1 x (specified accuracy / °C (< 18°C or > 28°C) |
|
|
Electromagnetic Compatibility (EN 61326–1:1997) |
In an RF field of 3 V/M, Accuracy = Specified Accuracy Except In Temperature: Specified Accuracy ±5°C (9°F) |
|
|
Relative Humidity (Maximum Non-Condensing) |
90%
to 35°C |
|
|
Battery Life |
400 Hours Typical (Alkaline) |
|
|
Safety |
ANSI / ISA S82.02.01, CSA C22.2–1010.1, IEC 61010 to 1000 V Measurement Category III, 600 V Measurement Category IV |
|
|
Certifications |
CSA, TÜV (EN61010), Π, (N10140) |
|
|
Size (H x W x L) |
4.3 x 9 x 18.5 cm |
|
|
Weight |
420 g |
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Multimeter |
Manufacturer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Packer Details |
Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070 |
Country of Origin |
India |
