Available

SKU # 1000040482

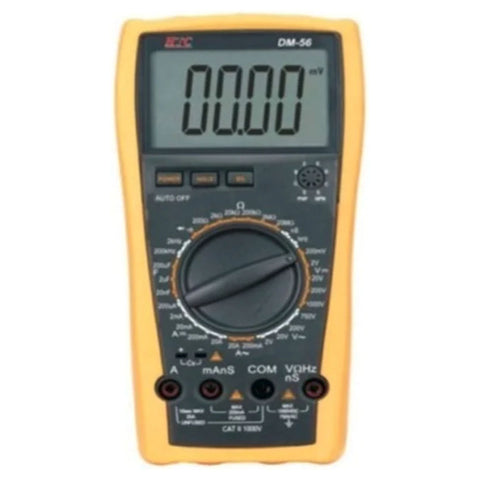

HTC Digital Multimeter With Conductance DM – 56

HTC Digital Multimeter With Conductance DM – 56

Visit the HTC Store

₹ 3,090.00

₹ 4,170.00

26% off

Inclusive of 18%
(₹ 556.20) GST

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festive Deals

Coupon Image

Use the coupon codes purchase of ₹5,000/- & above

Above ₹5,000 Use
RE100
Above ₹10,000 Use
RE200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 4½ Digital Multimeter

  • 20,000 Counts

  • Large LCD Display with Manual Range

  • No Power-OFF under natural operation

  • Data Hold, Max

  • Conductance, Capacitance, Frequency

  • Backlight

  • Standard Accessories: Test Leads, Holster, Manual

Product Specification

Brand

HTC

Product Code

DM-56

Product Type

Digital Multimeter With Conductance

Model No

HTC-A13

DC Voltage Range

10μV ~ 1000V

DC Voltage Accuracy

±(0.05% + 3digit)

AC Voltage Range

10μV ~ 750V

AC Voltage Accuracy

±(0.8% + 25digit)

DC Current Range

0.01μA ~ 20A

DC Current Accuracy

±(0.5% + 4digit)

AC Current Range

10μA ~ 20A

AC Current Accuracy

±(1.5% + 25digit)

Resistance Range

0.01Ω~ 200MΩ

Resistance Accuracy

±(0.2% + 5digit)

Conductance Range

(0.1~100)nS

Conductance Accuracy

±(1.0% + 3digit)

Capacitance Range

0.1pF ~ 200uF

Capacitance Accuracy

±(3.5% + 10digit)

Frequency Range

200kHz

Frequency Accuracy

±(3.0% + 15digit)

hFE (NPN or PNP) Range

0 ~ 1000

hFE (NPN or PNP) Accuracy

Basic current is approx. 10μA, Vce is approx 3.0V

Input impedance

10MΩ

Sampling Rate

3 times per second

AC Frequency Response

40-400Hz

Power

9V (6F22)

Continuity Buzzer

Approx. < 30Ω +10Ω

Low Battery Display

Approx. < 7.5V

Auto Power OFF

Approx. 30 min.

Dimension

185(H) x 93(W) x 35(D)mm

Warranty

As Per Manufacturer Terms And Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

1 Piece

Weight

1 kg

Generic Type

Digital Multimeter

Manufacturer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Packer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Country of Origin

India
