SKU # 1000068621

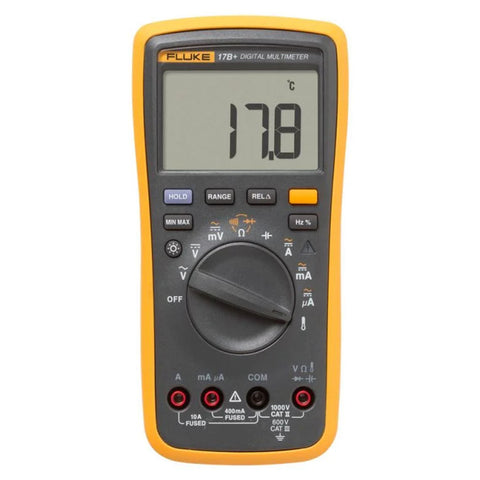

Fluke Digital Multimeter 4000Counts 17B+

₹ 12,970.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

600 V Cat III safety rating
50% bigger display with bright white backlight
Over-voltage indicator
Frequency and temperature measurement
Voltage, resistance, continuity, capacitance
Input terminal for ac and dc current measurements to 10 A current
Diode test, data hold

Product Specification

Brand		Fluke
Product Type		Digital Multimeter
Product Model		17B+
Function	Range	Resolution	Accuracy
AC Volts (40 Hz To 500hz)1	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0% + 3
DC Volts	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5% + 3
AC Millivolts	400.0 Mv	0.1 mV	3.0% + 3
DC Millivolts	400.0 Mv	0.1 mV	1.0% + 10
Diode Test2	2.000 V	0.001 V	10%
Resistance(Ohms)	400.0 Ω 4.000 Kω 40.00 Kω 400.0 Kω 4.000 Mω 40.00 Mω	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5% + 3 0.5% + 2 0.5% + 2 0.5% + 2 0.5% + 2 1.5% + 3
Capacitance3	40.00 Nf 400.0 Nf 4.000 Μf 40.00 Μf 400.0 Μf 1000 Μf	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2% + 5 2% + 5 5% + 5 5% + 5 5% + 5 5% + 5
Frequency1 Hz (10 Hz – 100 Khz)	50.00 Hz 500.0 Hz 5.000 Khz 50.00 Khz 100.0 Khz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1% + 3
Duty Cycle1	1% To 99%	0.1%	1% typical 4
AC Current Μa (40 Hz To 400 Hz)	400.0 Μa 4000 Μa	0.1 μA 1 μA	1.5% + 3
AC Current Ma (40 Hz To 400 Hz)	40.00 Ma 400.0 Ma	0.01 mA 0.1 mA	1.5% + 3
AC Current A (40 Hz To 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
DC Current Μa	400.0 Μa 4000 Μa	0.1 μA 1 μA	1.5% + 3
DC Current Ma	40.00 Ma 400.0 Ma	0.01 mA 0.1 mA	1.5% + 3
DC Current A	4.000 A 10.00 A	0.001 A 0.01 A	1.5% + 3
Temperature	50 °C- 400 °C 0 °C- 50 °C -55 °C- 0 °C	0.1C	2% ±1 °C ±2 °C 9% ±2 °C
Backlight	-	-	Yes
General Specification
Maximum Voltage Between Any Terminal And Earth Ground		1000 V
Display (LCD)		4000 counts, updates 3/sec
Battery Type		2 AA, NEDA 15A, IEC LR6
Battery Life		500 hours minimum (50 hours in LED Test mode without load. The hours with load depends on the type of LED under test.)
Temperature
Operating		0 °C to 40 °C
Storage		-30 °C to 60 °C
Relative Humidity
Operating Humidity		Non-condensing (<10°C) ≤90% RH at 10 °C to 30 °C ≤75% RH at 30 °C to 40 °C
		40 MΩ range ≤80% RH at 10 °C to 30 °C ≤70% RH at 30 °C to 40 °C
Altitude
Operating		2000 m
Storage		12,000 m
Temperature Coefficient		0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
Fuse Protection For Current Inputs		440 mA, 1000 V Fast Fuse, Fluke specified part only. 11A, 1000V Fast Fuse, Fluke specified part only.
Ip Rating		IP 40
Safety		IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2
Electromagnetic Environment		IEC 61326-1: Portable
Electromagnetic Compatibility		Applies to use in Korea only
Size (H X W X L)		183 x 91 x 49.5 mm
Weight		455 g
Warranty		1 Year

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	Digital Multimeter
Manufacturer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Packer Details	Fluke, Fluke Technologies Pvt Ltd, Art Guild House, Kurla West Mumbai-400070
Country of Origin	India
