SKU # 1000136710

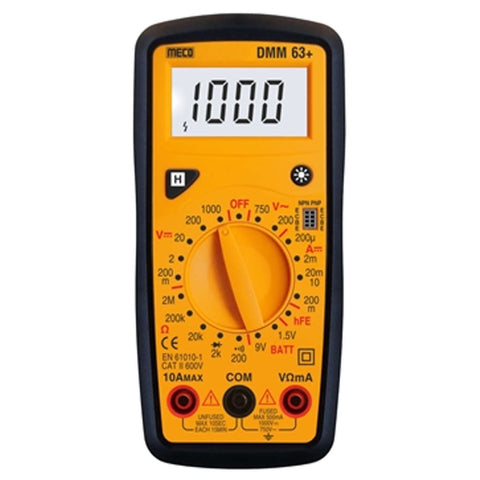

Meco Digital Multimeter 2000 Count 63+
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
3½ Digits
-
2000 Counts
-
DC Voltage upto 1000V
-
AC Voltage upto 750V
-
DC Current upto 10A
-
Battery Test (1.5V, 9V)
-
Resistance upto 2MΩ
-
Audible Continuity
-
Diode Test
-
hFE Test (Transistor Test)
-
Data Hold
-
LCD with Backlight
-
Low Battery Indication
ProductSpecification
| Brand | Meco |
| Product Type | Digital Multimeter |
| Product Model | 63+ |
| Ranges | |
| DC Voltage | 200mV/2/20/200/1000V |
| Accuracy | ±(0.5% rdg + 3 dgt) 200mV ±(0.8% rdg + 5 dgt) 2V, 20V, 200V ±(1.0% rdg + 5 dgt) 1000V |
| AC Voltage | 200/750 V [45-450Hz] |
| Accuracy | ±(2.0% rdg + 10 dgt) |
| DC Current | 200 µA/2mA/20mA/200mA/10A |
| Accuracy | ±(1.8% rdg + 2 dgt) 200µA, 2mA, 20mA ±(2.0% rdg + 2 dgt) 200mA ±(2.0% rdg + 10 dgt) 10A |
| Battery Test | |
| Ranges | 1.5V, 9V |
| Resolution | 1mV, 10mV |
| Internal Resistance | 10.5Ω ± 1.0Ω, 780Ω ± 200Ω |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ |
| Accuracy | ±(1.0%rdg+4dgt) on all ranges, except ±(1%rdg+10dgt) on 200Ω |
| Sp.Function | Audible Continuity, Battery Test, Diode Test, hFE Test |
| Power | Two 1.5V “AAA” Battery |
| Low Battery | Sign is indicated |
| Battery Life | 200 hours typical |
| Accessories | One pair of test leads, Battery [installed], Instruction Manual |
| Dimension | 160 x 76 x 32 mm (Approximate) |
| Weight (Including Battery) | 155 gms (Approximate) |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) L x B x H | 16 x 7.6 x 3.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.200 kg |
| Generic Name | Digital Multimeter |
| Manufacturer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Packer Details | Meco Instruments Pvt. Ltd. TTC Industrial Area, 400 710,, Plot No. EL-1, S Central Rd, Electronic Zone, MIDC Industrial Area, Mahape, Navi Mumbai, Maharashtra 400705 Phone: 022 2767 3300 |
| Country Of Origin | India |
