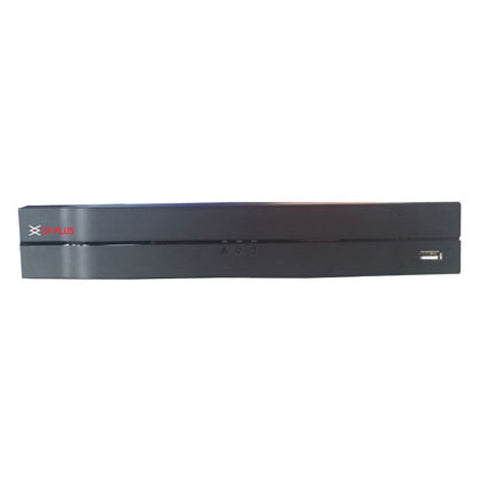

CP Plus 4 Channel Digital Video Recorder 4K-N/5MP CP-UVR-0401L1-4KI3

CP Plus 4 Channel Digital Video Recorder 4K-N/5MP CP-UVR-0401L1-4KI3

Visit the CP Plus Store

₹ 6,650.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs

  • Support each channel upto 8MP IP Camera; Maximum 64 Mbps incoming bandwidth

  • Up to 4 channels video stream (analog channel) Perimeter Protection, SMD Plus

  • AI Instastream, Instastream, H.265 dual-stream Video Compression

  • Support 1 SATA HDDs up to 16TB, 2 USB Ports

  • Up to 1 channel video stream (analog channel) human face recognition

  • IoT & POS functionalities

  • Mobile Software: iCMOB, gCMOB

  • CMS Software: KVMS Pro

  • System Overview

  • This DVR has gathered momentum across the globe for its outstanding performance and premium record- ing quality as it can be applied in any situation for IP video surveillance

  • This Series of DVRs supports the input, recording and transmission functions

  • Along with that, this DVR also enjoys the help of a built-in deep learning module as this product adopts the vid- eo image that is structured on deep learning algorithms

  • Smart Motion Detection (SMD Plus)

  • CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected

  • Face Recognition

  • This technology can be used to extract faces from a range of cameras and is capable of processing large quantities of faces in real-time or post-event and can provide alerts to help with access and authentication, border security, and crowd control

  • Multi-Signal Support

  • CP PLUS DVRs are equipped with UNI+ technology which sup-ports all HD and analog video formats

  • This helps the user up- grade their systems without requiring major overhauls

  • Addtional IP Cameras Support

  • In some installations, customers have specific features and functions that are available in IP cameras only, such as two- way communication, edge storage, alarm I/O, etc

  • CP PLUS DVRs provide additional IP camera support to provide flexibil-ity so that the desired solution features can be made accessi-ble

  • KVMS Pro

  • The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc

  • It is re-leased with the surveillance hardware and exclusively sup-ports CP PLUS devices

Product Specification

Brand

CP Plus

Product Type

DVR

Product Code

CP-UVR-0401L1-4KI3

Processor

Industrial-grade processor

Operating System

Embedded LINUX

IP Camera Input

4+4 Ch(analog channels are converted into IP channels) each channel up to 8MP Incoming
bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE)
will be disabled

Camera Input

1. CVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps
3. AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fp

Analog Camera Input

4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be config-
ured

Two-Way Talk

Yes (share the same audio input with the first channel)

User Interface

GUI,WEB Interface

Perimeter Performance AI By DVR (Number Of Channel)

Advanced Model : 1 channel, 10 IVS for each channel General Model : 4 channels, 10 IVS for
each channel

Face Detection Performance Of AI By DVR

1 channel (up to 8 face images/s)

Video Output

1 HDMI, 1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Database Capacity

Up to 10 face databases and 20,000 images

SMD Plus By DVR

4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by
leaves, rain and lighting condition change

Face Recognition Performance Of AI DVR

1 ch

Compression

H.265; H.264+; H.264

Encode Strategy

AI Instastream, Instastream

Encoding Capacity

Main stream: All channel 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4K-N,
4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps);
Sub stream: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)

Multi Screen Preview

When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9

Network Mode

Single-address mode

Bit Rate

32 kbps–6144 kbps

Audio Input

1 channel RCA, 4-channel BNC (Coaxial Audio)

Audio Output

1 channel, RCA

Audio Compression

G.711a; G.711u; PCM

Audio Bit Rate Audio Sample Rate

64Kbps Per Channel 8KHz, 16 bit

General Alarm

Motion detection, video loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt,
buzzer, log, preset, email

Smart Phone

iPhone, iPad, Android Phone

Hard Disk

1 SATA port, up to 16TB(The Maximum HDD capacity varies with environment temperature)

Recording Playback

1/4

Recording Mode

General, motion detection; intelligent; alarm; POS

Browser

Chrome, IE9 or later, Firefox

Playback

Instant playback, general playback, event playback, tag playback, smart playback (face and
motion detection)

Backup Mode

USB Device/ Network

Interface Ports

1 HDMI, 1 VGA, 2 USB Ports(2.0), 1 RS485

Ethernet

1 RJ-45 port (10/100Mbps)

Protocols

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS,ONVIF 21.06,
CGI Conformant, InstaOn

Power Supply

DC12V/2A

Power Consumption

<7W

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

0%–90% (RH)

Dimension

325.0 × 257.2 × 55.0 mm

Weight

1.16 kg

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

9.7 x 9.5 x 6

Unit Of Measurement

1 Piece

Weight

0.319 kg

Generic Type

4 Channel DVR

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
