SKU # 1000134802

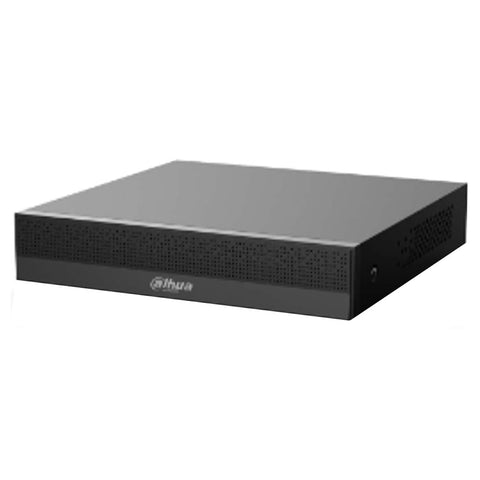

Dahua 8 Channel Digital Video Recorder 1U 1HDD DH-XVR4B08-V2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
H.265+/H.265 dual-stream video compression
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 10 channels IP camera inputs, each channel up to 6MP; Maximum 40 Mbps incoming bandwidth
-
Series Overview
-
Dahua, as a technology leader is always the first ever developed the shining new technology in the security industry, and today we present cooper series XVR
-
Designed as a full compatibility product , XVR is able to provide end user the simplicity of analog system namely lower system cost, simple instllation and use of existing cable
-
And with the adoption of smart H.265+/H.265, the series improves encoding efficiency, saving of bandwidth/storage cost
-
It is ideal for a wide range of civil applications such as retail store, home protection and so on
-
featuring high performance with attractive costs, the cooper series offers a great solution for users facing budget constraints who both require quality and performance
-
Functions
-
Smart Codec
-
With advanced scene-adaptive rate control algorithm, dahua smart codec technology realize the higher encoding efficiency than H.265 and H.264 provides high-quality video, and reduces the cost of storage and transmission
-
HDCVI/AHD/TVI/CVB Auto-Detect
-
The XVR can auto recognize the signal fo front-camera without andy setting
-
It makes operation more friendly and convenient
-
High Definition Camera Input
-
The XVR supports up to 2MP HDCVI camera and 6MP IP camera input
-
Coaxial Audio/Upgrade/Alarm
-
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation
-
Long Distance Transmission
-
The HDCVI System supports long distance transmission over coaxial cable and UTP max 800 m for 1080p and 1200 m for 720p
Product Specification
| Brand | Dahua |
| Product Type | DVR |
| Product Model | DH-XVR4B08-V2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded linux |
| Video And Audio | |
| Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera Input | 1080p@25/30 fps, 720p@25/30 fps |
| AHD Camera Input | 1080p@25/30 fps, 720p@25/30 fps |
| TVI Camera Input | 1080p@25/30 fps, 720p@25/30 fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 8+2 channels, each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-Way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main Stream: 8 channel the 1st channel 1080n/720p{1 fps-25/30 fps}other 1080n/720p Sub Stream: 8-channel CIF {1 fps-7 fps} |
| Bit Rate | 32 kbps-4096 kbps per channel |
| Record Mode | Manual Schedule (general, continous); MD (video detection: Motion Detection, video loss, Tampering Alarm Stop |
| Record Interval | 1 min-60 min (default: 60 min), Pre-record: 1s-30 s post-record 10s-300s |
| Audio Compression | G.711A;G.711U;PCM |
| Audio Sample Rate | 8 Khz, 16 bit per channel |
| Audio Bit Rated | 64 kbps per channel |
| Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion |
| Network | |
| Interface | 1 RJ-45 Port (100 Mbps) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; UPnP; RTSP; UDP; SMTP; NTP; |
| Maximum User Access | 128 users |
| Smart Phone | iPhone; iPad; Android |
| Interoperability | ONVIF, CGI Conformant |
| Video Detection And Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, |
| Video Detection | Motion Detection, MD zones:396 (22 x 18) video loss and tampering |
| Playback And Backup | |
| Playback | 1/4/9 |
| Search Mode | Time/Date; Alarm;MD and Exact search (accurate to second) |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB ports(USB 2.0) |
| Electrical | |
| Power Supply | DC 12 V/1.5 A |
| Power Consumption | < 7 W |
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Installation | Desktop installation |
| Third-Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Dimensions | 198 × 202.9 × 41.5 mm |
| Gross Weight | 1.02 kg |
| Net Weight (Without HDD) | 0.62 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 198 × 202.9 × 41.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.02 kg |
| Generic Type | 8 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
