SKU # 1000134801

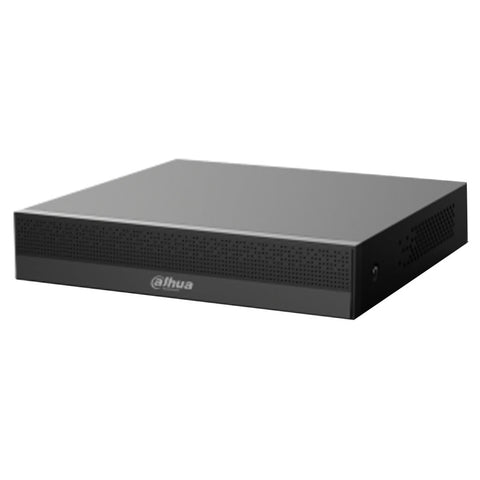

Dahua 4 Channel WizSense Digital Video Recorder 1U 1HDD DH-XVR4B04H-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
H.265+/H.265 dual-stream video compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 6 channels IP camera inputs, each channel up to 6MP; Maximum 32 Mbps incoming bandwidth
-
Up to 4 channels video stream ( analog channel ) SMD Plus
-
Series Overview
-
Dahua technology, a world-leading video-centric smart IOT solution and service provider, debuted its new XVR series, cooper series featuring SMD plus to benefit customers from AI upgraded
-
The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities
-
Functions
-
SMD Plus
-
With intelligent algorithm, dahua smart motion detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by concerned targets to realize effective and accurate alarm
-
AI Coding
-
Compared With H.265/H.264 AI coding can reduce more than 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details
-
Smart Codec
-
With advanced scene-adaptive rate control algorithm, dahua smart codec technology realizes the higher encoding effficency than H.265 and H.264 provides high-quality video, and reduces the cost of storage and transmission
-
HDCVI/AHD/TVI/CVBS Auto Detection
-
The XVR can auto recognize the signal of front-camera without any settingsIta makes operation more friendly and convenient
-
High Definition Camera Input
-
The XVR supports up to 2 MP HDCVI camera and 2MP IP camera Input
-
Coaxial Audio/Upgrade/Alarm
-
The integrated desing can reduce wiring troubles which makes it much more cost-effetive and convenient for installation
-
Long Distance Transmission
-
The HDCVI system supports long distance transmission over coaxial cable and UTP,max 800 m for 1080p and 1200 m for 720p
Product Specification
| Brand | Dahua |
| Product Type | Digital Video Recorder |
| Product Model | DH-XVR4B04H-I |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video, Audio And SMD Plus | |
| Performance | 4 Channel |
| AI Search | Search by target classification (Human, Vehicle) |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
| AHD Camera | 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera | 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 4+2 Channel, each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-Way Talk | Reuse audio in/out, RCA |
| Recording | |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
| Video Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | Interface |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection And Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback And Backup | |
| Playback | 4CH: 1/4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
| Auxiliary Interface | |
| USB | 2 USB 2.0 |
| Electrical |
|
| Power Supply | DC12V/1.5A |
| Power Consumption (Without HDD) | < 4 W |
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Installation | Desktop installation |
| Dimensions | 198.3 × 203.4 × 41.5 mm |
| Gross Weight | 1.02 kg (2.25 lb) |
| Net Weight (Without HDD) | 0.55 kg (1.2 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 198 × 202.9 × 41.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.02 kg |
| Generic Type | 4 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
