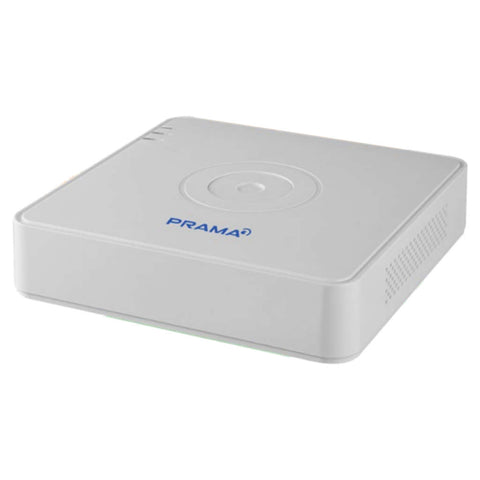

Prama HT-DVI DVR 4 Channel PT-DR1A08Q-K1

Prama HT-DVI DVR 4 Channel PT-DR1A08Q-K1

Visit the Prama Store

₹ 5,250.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • H.265 Pro+/H.265 Pro/H.265 video compression

  • HDTVI/AHD/CVI/CVBS/IP video input

  • Audio via coaxial cable

  • Up to 6/12/24-ch IP camera inputs (up to 6 MP)

  • Maximum 800 m for 1080p and 1200 m for 720p HDTVI signal

  • Up to 6 TB capacity per HDD

  • Compression and Recording

  • H.265 Pro+ can improve encoding efficiency and reduce the data storage cost

  • Full channel recording at up to 4 MP lite resolution

  • Storage and Playback  Smart search for efficient playback

  • Support the 3rd party cloud storage

  • Network & Ethernet Access

  • PRAMA-ONLINE & DDNS (Dynamic Domain Name System) for easy network management

  • Maximum 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

Product Specification

Brand

Prama

Product Type

DVR

Product Model

PT-DR1A08Q-K1

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access:

1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled:

4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bit Rate

32 Kbps to 6 Mbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bit Rate

64 Kbps

Video Bit Rate

2-ch (up to 10-ch) Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps

Video And Audio

Ip Video Input


2-ch (up to 10-ch)

1-ch (up to 5-ch)
Enhanced IP mode on:
2-ch (up to 6-ch), each up
to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input


8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

AHD Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ

8-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the fIRst audio input

Synchronous Playback

8-ch

Network

Total Bandwidth

96 Mbps

Incoming Bandwidth (Enhanced IP Mode)

48 Mbps

Remote Connection

64

Network Protocol

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 6 TB capacity for each disk

USB Interface

Real panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1.33 A

Consumption(Without HDD)

12 W

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

260 × 222 × 45 mm

Unit of Measurement

1 Piece

Weight

1 kg

Generic Type

4 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
