SKU # 1000134804

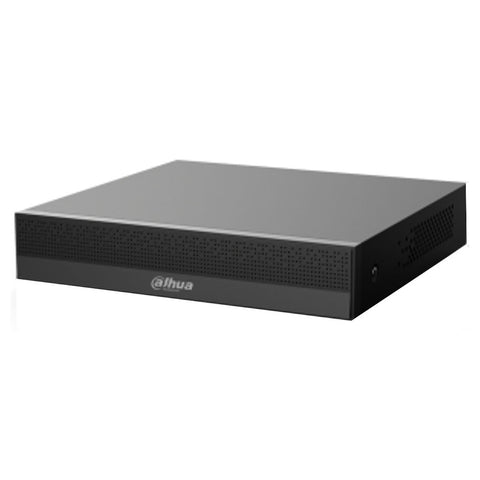

Dahua 8 Channel WizSense Digital Video Recorder 1U 1HDD DH-XVR4B08H-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
H.265+/H.265 dual-stream video compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 12 channels IP camera inputs, each channel up to 6MP; Maximum 64 Mbps incoming bandwidth
-
Up to 8 channels video stream ( analog channel ) SMD Plus
-
Series Overview
-
Dahua, as a technology leader is always the first ever developed the shining new technology in the security industry, and today we present cooper series XVR
-
Designed as a full compatibility product , XVR is able to provide end user the simplicity of analog system namely lower system cost, simple instllation and use of existing cable
-
And with the adoption of smart H.265+/H.265, the series improves encoding efficiency, saving of bandwidth/storage cost
-
It is ideal for a wide range of civil applications such as retail store, home protection and so on
-
featuring high performance with attractive costs, the cooper series offers a great solution for users facing budget constraints who both require quality and performance
-
Functions
-
Smart Codec
-
With advanced scene-adaptive rate control algorithm, dahua smart codec technology realize the higher encoding efficiency than H.265 and H.264 provides high-quality video, and reduces the cost of storage and transmission
-
HDCVI/AHD/TVI/CVB Auto-Detect
-
The XVR can auto recognize the signal fo front-camera without andy setting
-
It makes operation more friendly and convenient
-
High Definition Camera Input
-
The XVR supports up to 2MP HDCVI camera and 6MP IP camera input
-
Coaxial Audio/Upgrade/Alarm
-
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation
-
Long Distance Transmission
-
The HDCVI System supports long distance transmission over coaxial cable and UTP max 800 m for 1080p and 1200 m for 720p
Product Specification
| Brand | Dahua |
| Product Type | Digital Video Recorder |
| Product Model | DH-XVR4B08H-I |
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video And Audio | |
| Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera | 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
| AHD Camera | 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera | 5MP, 4MP, 1080p@25/30 fps, 720p@25/30 fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 8+4 channel, each channel up to 6MP |
| Audio In/Out | 1/1, RCA |
| Two-Way Talk | Reuse audio in/out, RCA |
| Recording | |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 5M-N; 4M-N; 1080p; 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) |
| Video Bit Rate | 32Kbps ~ 6144Kbps Per Channel |
| Record Mode
| Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback And Backup | |
| Playback | 1/4/9 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
| Auxiliary Interface | |
| USB | 2 USB 2.0 |
| Electrical | |
| Power Supply | DC12V/1.5A |
| Power Consumption (Without HDD) | < 7 W |
| Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Installation | Desktop installation |
| Dimensions | 198 × 202.9 × 41.5 mm |
| Gross Weight | 1.12 kg (2.45 lb) |
| Net Weight (Without HDD) | 0.57 kg (1.25 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 198 × 202.9 × 41.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.12 kg |
| Generic Type | 8 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
