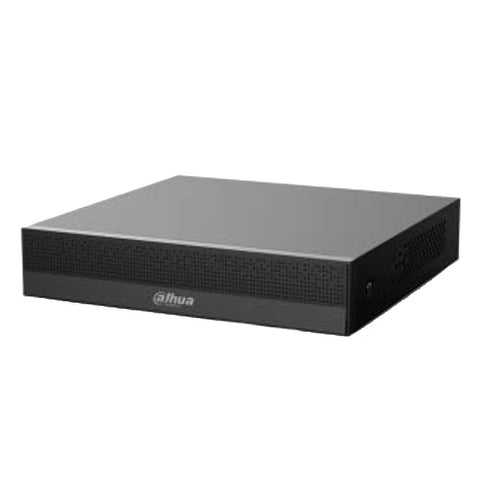

Dahua Cooper Series 4 Channel Penta-brid 1080N/720P 1U Digital Video Recorder XVR4B04
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
H.265+/H.265 dual-stream video compression
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 5/10 channels IP camera inputs, each channel up to 2MP/6MP; Max 20/40Mbps Incoming Bandwidth
-
Long transmission distance over coax cable
-
Supports 1 SATA HDD, up to 6TB
-
Smart H.265+
-
HDCVI/AHD/TVI/CVBS/IP Auto-detect
-
IPC Input Supported
-
Coaxial Audio/Upgrade/Alarm
-
Long Distance Transmission
-
Smart Search
-
Perfect Image Quality
-
P2P
Product Specification
|
Brand |
Dahua |
|
Product Type |
Digital Video Recorder |
|
Series |
Cooper |
|
Product Code |
XVR4B04 |
|
System |
|
|
Main Processor |
Embedded Processor |
|
Operating System |
Embedded LINUX |
|
Video And Audio |
|
|
Analog Camera Input |
4 Channel, BNC |
|
HDCVI Camera |
4CH: 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps 8CH: 1080P@25/30fps, 720P@25/30fps |
|
AHD Camera |
1080P@25/30, 720P@25/30fps |
|
TVI Camera |
1080P@25/30, 720P@25/30fps |
|
CVBS Camera |
PAL/NTSC |
|
IP Camera Input |
4CH: 4+1, each channel up to 2MP |
|
Audio In/Out |
1/1, RCA |
|
Two-Way Talk |
Reuse audio in/out, RCA |
|
Recording |
|
|
Video Compression |
H.265+/H.265/H.264+/H.264 |
|
Resolution |
1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
|
Record Rate |
Main Stream: 4CH: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps) 8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps) Sub stream: 4CH: CIF/QCIF (1~15fps) 8CH: CIF/QCIF (1~7fps) |
|
Video Bit Rate |
32Kbps ~ 4096Kbps Per Channel |
|
Record Mode |
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Record Interval |
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- record: 10 ~ 300 sec |
|
Audio Compression |
AAC(only for the 1st channel), G.711A, G.711U, PCM |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Display |
|
|
Interface |
1 HDMI ,1 VGA |
|
Resolution |
1920×1080, 1280×1024, 1280×720 |
|
Multi-Screen Display |
When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 |
|
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
|
Network |
|
|
Interface |
1 RJ-45 Port (100M) |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
|
Max. User Access |
128 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF 16.12, CGI Conformant |
|
Video Detection And Alarm |
|
|
Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
Alarm Input |
N/A |
|
Relay Output |
N/A |
|
Playback And Backup |
|
|
Playback |
4CH: 1/4 |
|
Search Mode |
Time /Date, Alarm, MD and Exact Search (accurate to second) |
|
Playback Function |
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
|
Backup Mode |
USB Device/Network |
|
Storage |
|
|
Internal HDD |
1 SATA Port, up to 6TB capacity |
|
Esata |
N/A |
|
Auxiliary Interface |
|
|
USB |
2 USB 2.0 |
|
Rs232 |
N/A |
|
Rs485 |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V/1.5A |
|
Power Consumption (without HDD) |
<10W |
|
Construction |
|
|
Dimensions |
Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
|
Net Weight (without HDD) |
0.54kg (1.19lb) 0.56kg (1.23lb) |
|
Installation |
Desktop installation |
|
Environmental |
|
|
Operating Conditions |
-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
|
Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|
Third-Party Support |
|
|
Third-Party Support |
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
Certifications |
|
|
|
FCC: Part 15 Subpart B |
|
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
|
|
UL: UL 60950-1 |
|
Warranty |
2 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Channel DVR |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
