SKU # 1000134807

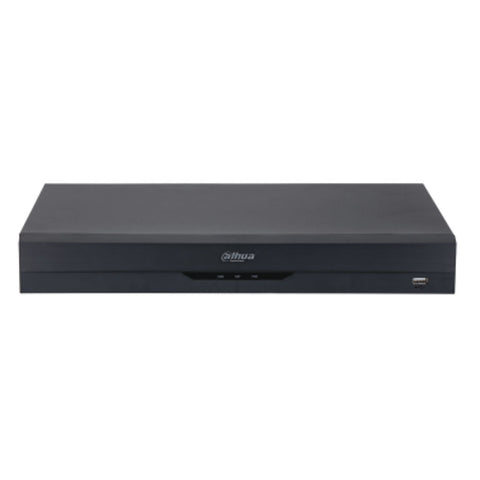

Dahua 16 Channel WizSense Digital Video Recorder 1U 2HDD DH-XVR5216AN-I3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
-
4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
-
2-channel face recognition for analog channels which supports face comparison
-
16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
-
Supports up to 24-channel IP camera input and each channel can be up to 6 MP
-
The incoming bandwidth reaches 128 Mbps
-
Smart H.265+ and H.265 dual-stream video compression
-
IoT and POS capabilities
-
Series Overview
-
Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model
-
Please refer to the specifications below for information on the number of channels)
-
This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to
raise the security level of various indoor and outdoor facilities -
Functions
-
Face Recognition
-
Dahua Face Recognition technology extracts the features of captured faces and compares them with that in face database
-
Perimeter Protection
-
Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc
-
Enables system to act secondary recognition for the targets
-
Improves alarm accuracy
-
SMD Plus
-
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm
-
AI Coding-ABR
-
Compared with H.265, AI coding-ABR can save 50% on storage costs, and save bit rate for complex scenes, which can prioritize image quality in dynamic scenes
-
Irregular Black Block Masking
-
Dahua's black block masking function supports the use of irregular shapes for masking, ensuring privacy in public and private locations
ProductSpecification
| Brand | Dahua |
| Product Type | DVR |
| Product Model | DH-XVR5216AN-I3 |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance AI By Recorder (Number Of Channels) | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 Attributes |
| Face Detection Performance Of AI By Recorder (Number Of Channels) | 2 Channel(up to 12 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance Of AI by Recorder (Number Of Channels) | 2 Channel |
| SMD Plus | |
| SMD Plus By Recorder | 16 Channel Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus By Camera | 24 Channel |
| AI Video Quality Analytics | |
| AI Video Quality Analytics By Recorder
| 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
| Scene Changing | |
| Scene Changing By Recorder | 1 Channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking By Recorder | 1 Channel |
| Audio And Video | |
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used |
| Encoding Capacity | Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps) |
| Dual-Stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | Audio Bit Rate |
| Video Output | 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode. |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode. |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 1-Channel RCA 16-Channel BNC (Coaxial Audio) |
| Audio Output | 1- Channel RCA |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| Disk Interface | 2 SATA ports Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | <12 W(without HDD) |
| Operating Temperature | |
