SKU # 1000134805

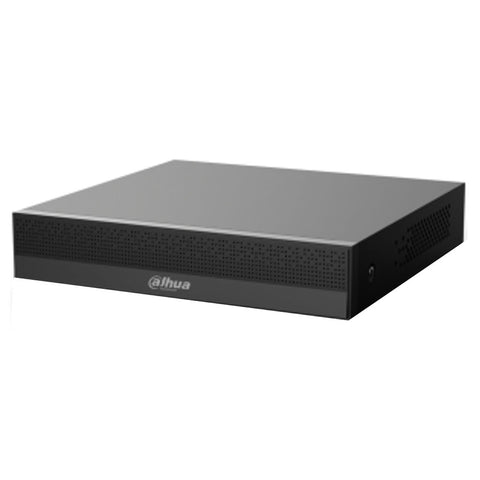

Dahua 16 Channel WizSense Digital Video Recorder 1U 1HDD DH-XVR4B16-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
H.265+/H.265 Dual-Stream Video Compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 18 channels IP camera inputs, each channel up to 6MP; Maximum 64 Mbps Incoming Bandwidth
-
Long transmission distance over coax cable
-
Up to 8 channels video stream (analog channel) SMD Plus
-
Dahua Technology, a world−leading video−centric smart IoT solution and service provider, debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade
-
The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities
-
SMD Plus
-
SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm
-
It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes
-
Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details
-
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras
-
The XVR can auto recognize the signal of front-camera without any setting
-
It makes operation more friendly and convenient
-
High Definition Camera Input
The XVR supports up to 1080p HDCVI camera and 6MP IP camera input -
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost−effective and convenient for installation -
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p
Product Specification
| Brand | Dahua |
| Product Type | Digital Video Recorder |
| Product Model | DH-XVR4B16-I |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| SMD Plus | |
| SMD Plus By Recorder | 8-Channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 16 Channel, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured |
| Camera Input | 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps |
| IP Camera Input | Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. |
| Encoding Capacity | Main Stream |
| Dual-Stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | 1/4/8/9/16 |
| Third-Party Camera Access | ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS, Android |
| Interoperability | ONVIF 21.06; CGI Conformant |
| Browse | Chrome |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | General, motion detection, alarm; |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback |
| Alarm | |
| General Alarm | Motion detection, video loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| Audio Input | 1- Channel RCA |
| Audio Output | 1- Channel RCA |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature. |
| USB | 2 USB ports (USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <10 W |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–90% (RH) |
| Installation | Desktop |
| Product Dimensions | 260 × 231.4 × 47.6 mm |
| Packaging Dimensions | 333 × 315 × 89 mm |
| Gross Weight | 1.42 kg (3.13 lb) |
| Net Weight | 0.89 kg (1.96 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 37.5 × 289.6 × 53 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.42 kg |
| Generic Type | 16 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
