SKU # 1000134800

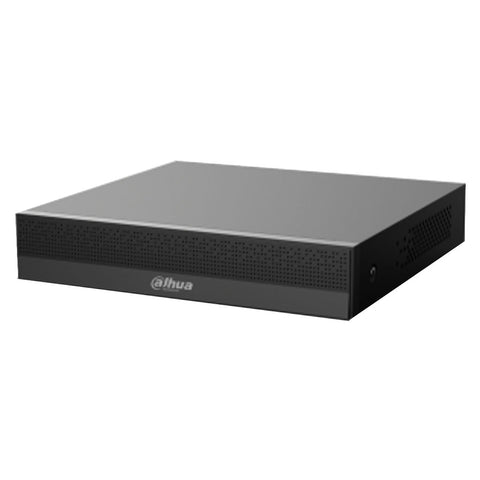

Dahua 4 Channel WizSense Digital Video Recorder 1U 1HDD DH-XVR4B04-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
H.265+/H.265 dual-stream video compression
-
Supports Full-channel AI-Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 5 channels IP camera inputs, each channel up to 2MP; Maximum 21.5 Mbps incoming bandwidth
-
Up to 4 channels video stream ( analog channel ) SMD Plus
-
Launched by dahua technology wizsense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm
-
It focuses on human and vehicle with high accuracy, enabling users to fast act on defined target
-
Based on Dahua’s advanced technologies, wizsense provides intelligent, simple and inclusive products and solutions
-
Series Overview
-
Dahua technology, a world-leading video-centric smart IOT solution and service provider, debuted its new XVR series, cooper series featuring SMD plus to benefit customers from AI upgraded
-
The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities
-
Functions
-
SMD Plus
-
With intelligent algorithm, dahua smart motion detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by concerned targets to realize effective and accurate alarm
-
AI Coding
-
Compared With H.265/H.264 AI coding can reduce more than 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details
-
Smart Codec
-
With advanced scene-adaptive rate control algorithm, dahua smart codec technology realizes the higher encoding effficency than H.265 and H.264 provides high-quality video, and reduces the cost of storage and transmission
-
HDCVI/AHD/TVI/CVBS Auto Detection
-
The XVR can auto recognize the signal of front-camera without any settingsIta makes operation more friendly and convenient
-
High Definition Camera Input
-
The XVR supports up to 2 MP HDCVI camera and 2MP IP camera Input
-
Coaxial Audio/Upgrade/Alarm
-
The integrated desing can reduce wiring troubles which makes it much more cost-effetive and convenient for installation
-
Long Distance Transmission
-
The HDCVI system supports long distance transmission over coaxial cable and UTP,max 800 m for 1080p and 1200 m for 720p
Product Specification
| Brand | Dahua |
| Product Type | Digital Video Recorder |
| Product Model | DH-XVR4B04-I |
| System |
|
| Main Processor | Embedded processor |
| Operating System | Embedded linux |
| Performance | 4 Channel |
| AI Search | Search by target classification (Human, Vehicle) |
| Video And Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera Input | 108p@ 25/30 fps, 720p@25/30/50/60 fps |
| AHD Camera Input | 108p@ 25/30 fps, 720p@25/30/50/60 fps |
| TVI Camera Input | 108p@ 25/30 fps, 720p@25/30/50/60 fps |
| CVBS Camera Input | PAL/NTSC |
| IP Camera Input | 4+1 channels, each channel up to 2MP |
| Audio In/Out | 1/1, RCA |
| Two-Way Talk | Reuse audio in/out, RCA |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; CIF |
| Record Rate | Main Stream; All channels 1080N/720P/960H/D1/CIF/{1-25/30fps) Sub Stream: CIF[1-15 fps] |
| Bit Rate | 32 kbps-4096 kbps per channel |
| Record Mode | Manual schedule [general, continuous] MD video detection: motion Detection, video loss, tampering) Alarm;stop |
| Record Interval | 1 min-60 min(default:60 min) pre-record:1s-30s post-record |
| Audio Compression | G.711A; G.711U; PCM |
| Audio Sample Rate | 8 KHz, 16 bit per channel |
| Audio Bit Rate | 64 kbps per channel |
| Display |
|
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion |
| Network |
|
| Interface | 1 RJ-45 port (100 Mbps) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; UPnP; RTSP; UDP; SMTP; NTP;DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP |
| Maximum User Access | 128 users |
| Smart Phone | iPhone; iPad; Android |
| Interoperability | ONVIF, CGI Conformant |
| Video Detection And Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, |
| Video Detection | Motion detection MD zones: 396 (22 x 18) video loss and tampering |
| Playback And Backup | |
| Playback | 1/4 |
| Search Mode | Time/Date; Alarm; MD and Exact Search (accurate to Second) |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB ports(USB 2.0) |
| Electrical | |
| Power Supply | DC 12 V/1.5 A |
| Power Consumption (Without HDD) | < 7 W |
| Dimensions | 198 × 202.9 × 41.5 mm |
| Net Weight | 0.57 kg |
| Gross Weight | 1.04 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 198 × 202.9 × 41.5 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.04 kg |
| Generic Type | 4 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
