SKU # 1000134806

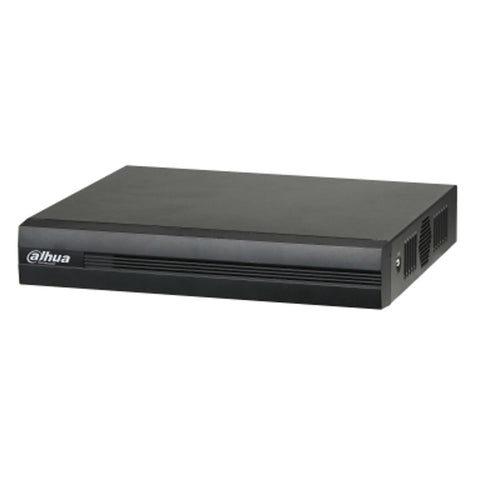

Dahua 16 Channel WizSense Digital Video Recorder 1U 1HDD DH-XVR4B16H-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
H.265+/H.265 dual-stream video compression
-
Supports Full-channel AI Coding
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 24 channels IP camera inputs, each channel up to 6MP; Maximum 128 Mbps incoming bandwidth
-
Long transmission distance over coax cable
-
Up to 16 channels video stream (analog channel) SMD Plus
-
POS functionalities
-
Dahua Technology, a world−leading video−centric smart IoT solution and service provider, debuted its new XVR series, Cooper Series featuring SMD Plus to benefit customers from AI upgrade
-
The series are designated to reduce false-alarm rates and human surveillance costs, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities
-
SMD Plus
-
SMD Plus, referred to as Smart Motion Detection Plus, which is an upgrading version of SMD that greatly improves the alarm accuracy by loading deep-learning algorithm
-
It analyzes person and vehicle shapes based on motion detection and send alarms only when person and vehicle intrudes
-
Compared with H.265, AI codec can reduce up to 50% bit rate and storage requirements while have no loss of decoding compatibility, providing clear human and vehicle details
-
Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras
-
The XVR can auto recognize the signal of front-camera without any setting
-
It makes operation more friendly and convenient
-
High Definition Camera Input
The XVR supports up to 1080p HDCVI camera and 6MP IP camera input -
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost−effective and convenient for installation -
Long Distance Transmission
The HDCVI system supports long distance transmission over coaxial cable and UTP, max 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p
ProductSpecification
| Brand | Dahua |
| Product Type | DVR |
| Product Model | DH-XVR4B16H-I |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux |
| SMD Plus | |
| SMD Plus By Recorder | Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio And Video | |
| Analog Camera Input | 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured |
| Camera Input | 1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. |
| IP Camera Input | 16+8 channels, each channel up to 6MP |
| Encoding Capacity | All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps) |
| Dual-Stream | Supported (D1/CIF (1 fps–15 fps)). |
| Video Frame Rate | PAL: 1 fps–25 fps. |
| Video Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Audio Sampling | 8 KHz, 16 bit Per Channel |
| Audio Bit Rate | 64 Kbps Per Channel |
| Bit Rate Type | Video stream and composite stream. |
| Video Output | 1 HDMI, 1 VGA |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9/16 |
| Third-Party Camera Access | Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung |
| Compression Standard | |
| Video Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Audio Compression | G.711A/G.711u/PCM |
| Network | |
| Network Protocol | HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Mobile Phone Access | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Browser | Chrome, IE9 or above, Firefox |
| Network Mode | Single-address mode |
| Recording Playback | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB Device/Network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Alarm | |
| General Alarm | Motion detection, Video Loss, tampering |
| Anomaly Alarm | No disk, disk error, low space, offline, ip conflict, MAC conflict |
| Alarm Linkage | Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
| Ports | |
| Audio Input | 1, RCA (external)16, BNC (coaxial) |
| Audio Output | 1, RCA |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SATA Port,up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| USB | 2 USB Ports (2 USB 2.0) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Power Supply | DC12V, 2A |
| Power Consumption | Lower than 12 W |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Operating Humidity | 10%–90% |
| Installation | Desktop |
| Packaging Dimensions | 333 × 89 × 315 mm |
| Product Dimensions | 260 × 231.4 × 47.6 mm |
| Gross Weight | 1.43 kg (3.16 lb) |
| Net Weight | 0.93 kg (2.05 lb) |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 37.5 × 289.6 × 53 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.93 kg |
| Generic Type | 16 Channel DVR |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
