Out of Stock!

SKU # 1000082994

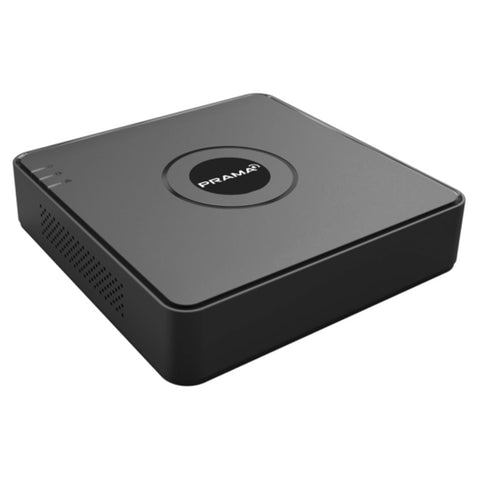

Prama DVR 4Ch 1080p PT-DR1A04G-K1

Prama DVR 4Ch 1080p PT-DR1A04G-K1

Visit the Prama Store

₹ 2,590.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression

  • HDTVI/AHD/CVI/CVBS/IP video input

  • Up to 6/12-ch IP camera inputs (up to 1080p/5 MP) Max. 1200 m for 720p HDTVI signal

Product Specification

Brand

Prama

Product Code

PT-DR1A04G-K1

Product Type

Digital Video Recorder

Power Supply

12 VDC

Consumption (Without HDD)

8 W

Working Temperature

-10 ºC to +55 ºC (14 ºF to 131 ºF)

Working Humidity

10% to 90%

Video/Audio Input

Video Compression

H.264+/H.264

Analog Video Input

4-Ch
BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection

HD-TVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

IP Video Input

1-ch(up to 5-ch)
Up to 1.3MP Resolution

Audio Compression

G.711u

Audio Input/Two-Way Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio Output

HDMI/VGA Output

1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Encoding Resolution

When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

Video Bit Rate

32 Kbps to 4 Mbps

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Bit Rate

64 Kbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Synchronous Playback

4-ch

Network Management

Remote Connections

32

Network Protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

Hard Disk

SATA

1 SATA Interface

Capacity

Up to 6 TB Capacity For Each Disk

External Interface

Network Interface

1, RJ45 10M/100M Self-Adaptive Ethernet Interface

USB Interface

Rear panel: 2 × USB 2.0

Dimensions(W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight(Without HDD)

0.8 kg (1.8 lb)

Warranty

5 Years


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

4 Channel DVR

Manufacturer Details

STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444

Packer Details

STAR TECH COMPUTER & SECURITY, P NO 21, SUDERSHANPURA INDUSTRIAL AREA NEAR 22 GODOWN, Jaipur, Rajasthan-302006, India, Phone: +91-8448233444

Country of Origin

India
