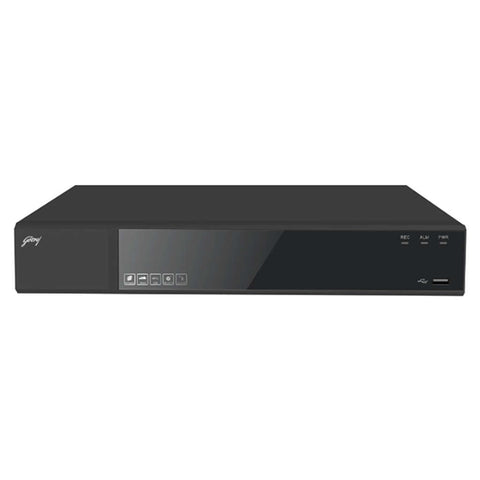

Godrej Elite 4 Channel 5MP DVR STP-UR4S1-1960P

Godrej Elite 4 Channel 5MP DVR STP-UR4S1-1960P

Visit the Godrej Store

₹ 7,775.00

Quantity

Pack Qty : 1.0



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Support AHD/TVI/CVI/CVBS/IP Cameras

  • Support AHD/TVI/CVI Cameras UP To 2MP

  • Support Smart Detection & Smart Playback

  • Support Extra Ip Channels

  • Support H.264+/H.264

  • Support Time Division & Instant Playback

  • Support Google Drive & Dropbox Cloud Storage

  • 4ch 5MP 5 in 1 UVR

  • 4ch 5MP 12fps Recording/4ch Playback

  • Video I/O:4/1; Audio I/O: 4/1

  • HDMI,VGA,CVBS,SATA*1(8T HDD)

  • 3G/4G,WIFI,PTZ,USB Mouse, DC12V/1.5A Adapter

  • Smart Function/Cloud Storage/Cloud Upgrade,H.264+/Extra 4CH IP/Event Stream

Product Specification

Brand

Godrej

Product Type

Digital Video Recorder

Product Code

STP-UR4S1-1960P

Color

Black

Series

Elite

Chipset

Hi3521A

Video Input

4ch(1.0Vp-p, 75 Ω)

TVI

5MP,3MP,1080P, 720P

CVI

4MP,1080P, 720P

AHD

5MP,4MP,1080P, 720P

IPC

Up to 6ch 2MP

CVBS

up to 8ch when no analog input,resolution up to 5MP

Audio Input

4-ch, RCA(2.0 Vp-p, 1 KΩ)

Two-Way Audio

1-ch, multiplex with Audio Input(RCA)

HDMI

1ch, resolution:

1920×1080/60Hz,1440×900/60Hz,1280×1024/60Hz,

1280×720/60Hz,1024×768/60Hz

VGA

1ch, resolution: 1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz

CVBS output

1-ch,BNC(1.0Vp-p,75Ω), resolution: PAL:704x576, NTSC:704x480

Audio Output

1-ch, RCA(Linear, 1kΩ)

Multi-screen display

4CH: 1/4/6/8

Video Compression

H.264+/H.264

Encoding Resolution

5MP/4MP/3MP/1080P/1080P Lite/720P/960H/D1

Frame Rate(fps)

Main stream4CH 5MP@12fps4MP@15fps 1080P / 1080P Lite / 720P / 960H / D1@25fpsP/ 30fpsN

Video Bit Rate

11Kbps~5727Kbps

Record Mode

Manual, Schedule, Alarm

Audio Compression

G.711a

Audio Bit Rate

64kbps

Playback Number

4CH Playback

Playback Mode

Normal / Time Division / Label / Event / Picture playback

Backup Mode

USB Device/Network

Intelligent Detection

4CH Line Crossing&Area Intrution

Smart Playback

Line Crossing / Area Intrution / Motion Detection

Cloud Storage

Support

Cloud Upgrade

Support

Ethernet

1 RJ-45 10 /100/1000 Mbps self-adaptive Ethernet interface

Network Function

HTTPs, HTTP, TCP/IP, Ipv4, UPnP, RTSP, RTCP, UDP, SMTP, SNMP, Multicast, IGMP, NTP, DHCP,DNS IP Filter, DDNS, FTP, P2P

Max. User Access

32 users

Smart Phone

iPhone, iPad, Android

SATA

1 SATA interfaces

Capacity

Up to 8TB capacity for each HDD

Serial Interface

Standard RS-485(half-duplex)

USB Interface

Front panel: 1 × USB 2.0,Rear panel: 1 × USB 2.0

Power Supply

DC12V,1.5A

Power Consumption

15W(without HDD)

Working Environment

-10°C~+55°C / 10%~90%RH

Dimension (W×D×H)

250 x 230 x 45mm

Weight(withOut HDD)

1.5kg

Warranty

1 Year


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

4 Channel DVR

Manufacturer Details

Godrej & Boyce Mfg. Co. Ltd. Registered office address Pirojshanagar, Vikhroli, Mumbai- 400079, India. Phone: +91-22-6796 5656 / 5959

Packer Details

Godrej & Boyce Mfg. Co. Ltd. Registered office address Pirojshanagar, Vikhroli, Mumbai- 400079, India. Phone: +91-22-6796 5656 / 5959

Country of Origin

India
