48 hours

SKU # 1000121941

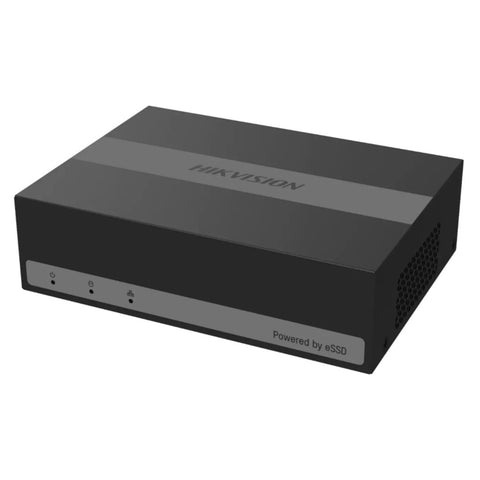

Hikvision Edvr Series eSSD DVR 4Channel 1080p DS-E04HGHI-B

Hikvision Edvr Series eSSD DVR 4Channel 1080p DS-E04HGHI-B

Visit the Hikvision Store

₹ 3,240.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festival sale

Coupon Image

Use the coupon codes

Above ₹3,000 Use
CN100
Above ₹7,000 Use
CN150
Above ₹15,000 Use
CN200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Powered by eSSD technology

  • Low power consumption

  • Scene-adaptive bitrate control video compression

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0

  • HDTVI/AHD/CVI/CVBS/IP video inputs

  • Up to 1080p Lite@30 fps encoding capability

Product Specification

Brand

Hikvision

Product Type

DVR

Product Model

DS-E04HGHI-B

Series

Edvr

Motion Detection

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

65 Pro/H.265

Encoding Resolution

1080p Lite/720p/WD1/4CIF/CIF

Frame Rate

Main stream
1080p Lite/720p/WD1/4CIF/CIF@25 fps (P)/30 fps (N)Note:1080p Lite/720p is 15 fps by default
Sub-stream:4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N

Video Bitrate

According to the actual scene, scene-adaptive bitrate control technology would
automatically allocates appropriate bitrate to ensure the stability of recording period

Stream Type

Video, Video & Audio
Note: In order to protect privacy, the device will only record video (without audio) by
default. If you want to record audio, you shall manually enable audio recording. For
operation details, refer to the user manual.

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video And Audio

IP Video Input

1-ch,Up to 1080p resolution,Support H.265+/H.265 IP camera

Analog Video Input

4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

080p25, 1080p30, 720p25, 720p3

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60H

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

4-ch via coaxial cable

Audio Output

1-ch via HDM

Synchronous Playback

4-ch

Network

Total Bandwidth

64 Mbps
Incoming bandwidth: 1 Mbps

Remote Connection

32

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Capacity

Built-in 330 GB eSSD (300 GB available)
Note:
The device can store about 2 weeks videos for 4-ch analog cameras (default parameters),
this estimation is for reference only.

Usb Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1 A

Consumption

5.4 W (with eSSD)

Working Temperature

-10 °C to 45 °C (14 °F to +113 °F)

Working Humidity

10% to 90%

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (MM) - L x B x H

151 × 121× 46 mm

Unit of Measurement

1 Piece

Weight

0.5 kg

Generic Type

4 Channel DVR

Manufacturer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Packer Details

Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900

Country of Origin

India
