SKU # 1000134844

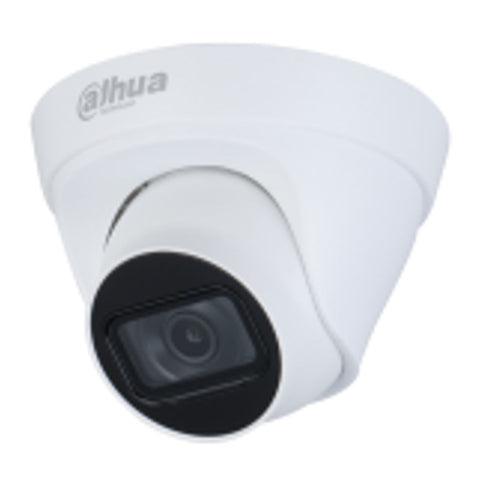

Dahua 2 MP Entry IR Fixed Focal Eyeball Network Camera DH-IPC-HDW1230T2

₹ 1,930.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

ProductDescription

Key Features

2-MP 1/3.2Inch CMOS image sensor, low luminance, and high-definition image
Outputs Maximum 2 MP (1920 × 1080) @30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, and the Maximum illumination distance is 30 m
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
12 VDC power supply, easy for installation
IP67 protection

Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage
These technologies improve the camera's defense against external cyber threats and prevent

malicious programs from compromising the device
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak
It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes
Wide voltage: The camera allows ±30% (for some power supplies)
Input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage

ProductSpecification

Brand	Dahua
Product Type	Network Camera
Product Model	DH-IPC-HDW1230T2
Camera
Image Sensor	1/3.2Inch CMOS
Effective Pixels	1920(H) x1080(V)
RAM/ROM	64MB/16MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)
S/N Ratio	>56 dB
IR Distance	Up to 30 m (98.43 ft) (IR LED)
IR On/Off Control	Auto/ Manual
IR LEDs	2
Angle Adjustment	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed
Mount Type	M12
Focal Length	3.6 mm
Maximum Aperture	F2.0
Angle Of View	H: 79°; V: 43°; D: 94°
Focus Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	3.6 mm	55.0 m (180.45 ft)	22.0 m (72.18 ft)	11.0 m (36.09 ft)	5.5 m (18.04 ft)
Video
Video Compression	H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability	2 Streams
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 12Kbps ~ 4096Kbps H.264: 32Kbps ~ 4096Kbps
Day/Night	Auto (ICR) / Color / B/W
BLC Mode	BLC / HLC /DWDR
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D DNR
Motion Detection	Off / On (4 areas, Rectangle)
Region Of Interest	Off / On (4 areas)
Smart Illumination	Support
Image Rotation	0°/180°
Mirror	Yes
Privacy Masking	4 Areas
Alarm
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P
Interoperability	ONVIF (Profile S; Profile T); CGI
User/Host	6 (Total bandwidth: 24 M)
Edge Storage	FTP
Web Viewer	IE, Chrome, Firefox
Smart Phone	IOS, Android
Cyber Security	Configuration encryption; Trusted execution; Digest; Security logs; HTTPS; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption
Power
Power Supply	12 VDC/PoE
Power Consumption	Basic: 1.2 W (12 VDC); 2.1 W (PoE) Maximum (ICR switch + illuminator intensity): 2.8 W (12 VDC); 4 W (PoE)
Environmental
Operating Conditions	–40 °C to +50 °C (–40 °F to +122 °F) / Less than 95% RH
Storage Conditions	–40 °C to +60 °C (–40 °F to +140 °F) / Less than 95% RH
Ingress Protection	IP67
Casing	Plastic
Dimensions	103.2 × Φ109.9 mm
Gross Weight	0.38 kg (0.84 lb)
Net Weight	0.24 kg (0.53 lb)
Warranty	As Per Manufacturer Terms and Condition
