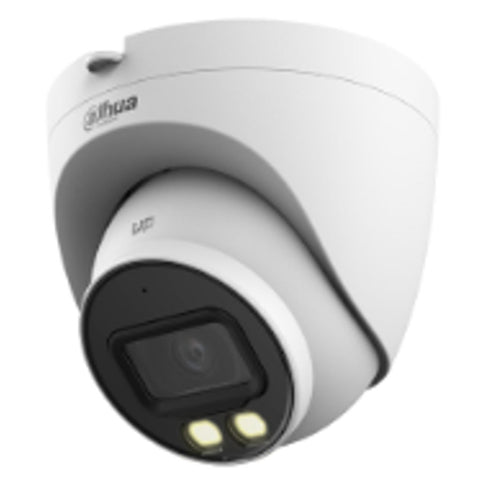

Dahua 2 MP Full Color Eyeball Wizsense Network Camera DH-IPC-HDW2249T-S-LED

Dahua 2 MP Full Color Eyeball Wizsense Network Camera DH-IPC-HDW2249T-S-LED


₹ 5,150.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Key Features

  • 2-MP 1/2.8Inch CMOS image sensor, low luminance, and high definition

  • Outputs Maximum 2 MP (1920 × 1080)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate

  • Built-in warm light and the max. illumination distance is 30 m

  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

  • Supports Maximum 256 G Micro SD card; built in Mic

  • 12 VDC/PoE power supply

  • IP67 protection

  • SMD Plus

  • Series Overview

  • With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection

  • With starlight technology, this series camera provides a better image effect in the condition of low
    illuminance

  • Functions

  • SMD Plus

  • With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm

  • Perimeter Protection

  • With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately

  • In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced

  • Smart H.265+ & Smart H.264+

  • With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission

  • Full-Color

  • With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra- low illuminance

  • With this photosensitivity technology, the camera can capture more available light, and display more colorful image details

  • Cyber Security

  • Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage

  • These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device

  • Protection (IP67, Wide Voltage)

  • IP67: The camera passes a series of strict test on dust and soak

  • It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes

  • Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage

ProductSpecification

Brand

Dahua

Product Type

Network Camera

Product Model

DH-IPC-HDW2249T-S-LED

Camera

Image Sensor

1/2.8Inch CMOS

Maximum Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination

0.002 lux@F1.0

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (Warm light)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Maximum Aperture

F1.0

Field Of View

2.8 mm: H: 106°; V: 55°; D: 125° 3.6 mm: H: 85°; V: 45°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft) 3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm


45.5 m
(149.28 ft)

18.2 m
(59.71 ft)

9.1 m
(29.86 ft)

4.6 m
(15.09 ft)

3.6 mm


53.8 m
(176.51 ft)

21.5 m
(70.54 ft)

10.8 m
(35.43 ft)

5.4 m
(17.72 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the
classification and accurate detection of vehicle and
human)

Smart Search

Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

Stream Capability

2 Streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region Of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-In MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK And API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage
