SKU # 1000083027

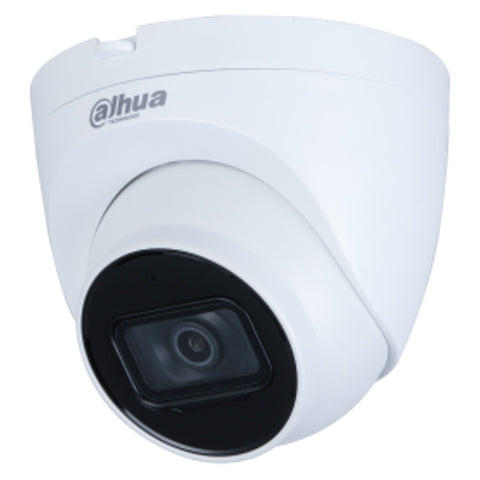

Dahua IR Fixed-Focal Eyeball Network Camera 4MP DH-IPC-HDW2431TP-AS-S2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
4MP, 1/3” CMOS image sensor, low illuminance, high image definition
-
Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
-
H.265 coding, high compression ration, low bit rate
-
Built-in IR LED, max IR distance: 30 m
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire
-
Abnormality detection: Motion detection, video tampering,no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
-
Max. 256 GB SD card and built-in Mic
-
12V DC/POE power supply
-
IP67 protection
-
Smart H.265+ & Smart H.264+
-
Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission
-
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast
-
The bright and dark area can get clear video even in high brightness environment or with backlight shadow
-
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance
-
It widely applies to various environments of low illuminance
-
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion
-
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device
-
Protection (IP67, wide voltage)
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Network Camera |
||||
|
Model |
DH-IPC-HDW2431TP-AS-S2 |
||||
|
Series |
Lite |
||||
|
Camera |
|||||
|
Image Sensor |
1/3” 4Megapixel progressive CMOS |
||||
|
Max. Resolution |
2688 (H) × 1520 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
|
Min. Illumination |
0.008 Lux @ F1.6 |
||||
|
S/N Ratio |
>56 dB |
||||
|
Illumination Distance |
30 m (98.43 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
2 (IR LED) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm 3.6 mm |
||||
|
Max. Aperture |
F1.6 F1.6 |
||||
|
Field of View |
2.8 mm: Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0° 3.6 mm : Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0° |
||||
|
Iris Type |
Fixed |
||||
|
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recogniz |
Identify |
|
2.8 mm |
56 m (183.73 ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (18.37 ft) |
|
|
3.6 mm |
80 m (262.47 ft) |
32.0 m (104.99 ft) |
16.0 m (52.49 ft) |
8.0 m (26.25 ft) |
|
|
Smart event |
|||||
|
IVS |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
|
Video Frame Rate |
Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
Disable/Enable (4 areas, rectangle) |
||||
|
Region Of Interest(RoI) |
Yes (4 areas) |
||||
|
Smart Illumination |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-In MIC |
Yes |
||||
|
Audio Compression |
G.711A; G.711Mu; G.726 |
||||
|
Alarm |
|||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
SDK And API |
Yes |
||||
|
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||
|
User/Host |
20 |
||||
|
Storage |
FTP; Micro SD card (support max. 256 G); NAS; SFTP |
||||
|
Browser |
IE Google Firefox |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE |
||||
|
Power Consumption |
Basic power consumption: 2.1W (12V DC), 2.5W (POE) Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.7W (12V DC), 6.6W (POE) |
||||
|
Environment |
|||||
|
Operating Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Operating Humidity |
≤95% |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Storage Humidity |
≤95% |
||||
|
Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal + Plastic |
||||
|
Dimensions |
100.9 mm × Φ109.9 mm (3.97" × Φ4.33") |
||||
|
Net Weight |
0.39 kg (0.86 lb) |
||||
|
Gross Weight |
0.52 kg (1.15 lb) |
||||
|
Warranty |
As Per Manufacturer Terms and Condition |
||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
