SKU # 1000134878

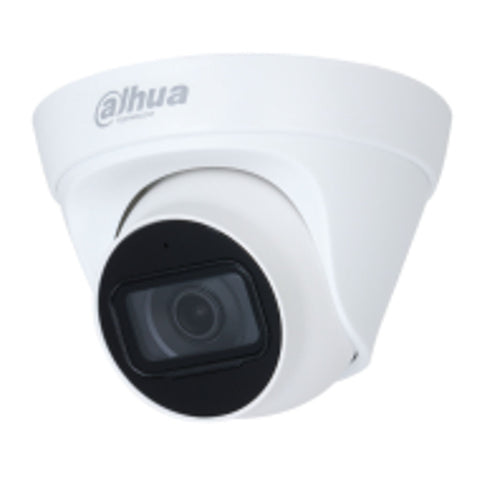

Dahua 4 MP Entry IR Fixed Focal Eyeball Network Camera DH-IPC-HDW1431T1P-A-S4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
4-MP 1/2.7Inch CMOS image sensor, low luminance, and high definition image
-
Outputs 4 MP (2560 × 1440) @25/30 fps, and supports maximum 4 MP (2688 × 1520) @20 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
-
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Maximum IR LEDs Length 30m
-
Built-In MIC
-
12V DC/PoE power support
-
IP67
-
Series Overview
-
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences,
small-sized retail stores, and other small and medium-sized enterprises -
Functions
-
Smart H.265+ & Smart H.264+
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Motion Detection
-
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records
-
Cyber Security
-
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storag
-
These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
ProductSpecification
| Brand | Dahua | ||||
| Product Type | Network Camera | ||||
| Product Model | DH-IPC-HDW1431T1P-A-S4 | ||||
| Camera | |||||
| Image Sensor | 1/2.7Inch CMOS | ||||
| Maximum Resolution | 2688 (H) × 1520 (V) | ||||
| ROM | 16 MB | ||||
| RAM | 128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Minimum Illumination | 0.03 lux@F2.0 (Color, 30 IRE) 0.003 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||
| S/N Ratio | > 56 dB | ||||
| Illumination Distance | 30 m (98.43 ft) (IR) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (IR LED) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Maximum Aperture | 2.8 mm: F2.0 3.6 mm: F2.0 | ||||
| Field Of View | 2.8 mm: Horizontal: 104°; Vertical: 58°; Diagonal: 124° 3.6 mm: Horizontal: 88°; Vertical: 48°; Diagonal: 103° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.2 m (3.94 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 56.0 m (183.73 ft) | 22.4 m (73.49 ft) | 11.2 m (36.75 ft) | 5.6 m (18.37 ft) | |
| 3.6 mm | 76.0 m (249.34 ft) | 30.4 m (99.74 ft) | 15.2 m (49.87 ft) | 7.6 m (24.93 ft) | |
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) | ||||
| Stream Capability | 2 Streams | ||||
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | ||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region Of Interest (RoI) | Yes (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Built-In MIC | Yes | ||||
| Audio Compression | G.711A; G.711Mu; G.726 | ||||
| Alarm | |||||
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| SDK And API | Yes | ||||
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; trusted boot; trusted execution; trusted upgrade | ||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast | ||||
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | ||||
| User/Host | 6 (Total bandwidth: 36 M) | ||||
| Storage | FTP | ||||
| Browser | IE Chrome Firefox | ||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Client | iOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN 62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B | ||||
| Power | |||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||
| Power Consumption | Basic: 1.9 W (12 VDC); 2.9 W (PoE) Maximum (ICR + H.265 + IR intensity): 3.8 W (12 VDC); 5 W (PoE) | ||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Operating Humidity | ≤ 95% | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Protection | IP67 | ||||
| Casing | Metal + Plastic | ||||
| Product Dimensions | 85.5 × Φ109 mm | ||||
| Net Weight | 0.25 kg (0.6 lb) | ||||
| Gross Weight | 0.37 kg (0.8 lb) | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
OtherDetails
| Dimension (CM) - L x B x H | 85 x 109 x 29 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.37 kg |
| Generic Type | Network Camera |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
