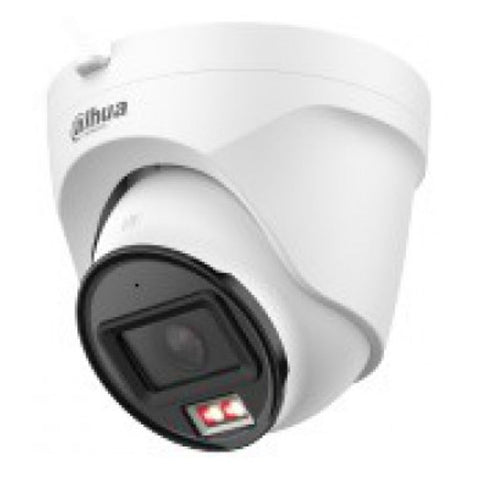

Dahua 4 MP Smart Dual Light Eyeball WizSense Network Camera DH-IPC-HDW1439T2-A-IL
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
4-MP 1/3Inch CMOS image sensor, low luminance, and high definition image
-
Outputs maximum 4 MP (2560 × 1440)@30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in multi-core light, the maximum IR distance is 30 m and the maximum warm light distance is 15 m
-
DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Built in Mic
-
12 VDC/PoE power supply, easy for installation
-
IP67 protection
-
Series Overview
-
The Dahua Silver Series camera is designed with simplicity for practicality
-
Plug and play, it immediately outputs images when connected to the Dahua NVR
-
It supports remote monitoring through the Dahua mobile app, and triggers alarms for motion detection, video tampering, and security exception, providing you with a convenient and secure IP service
-
Functions
-
Smart H.265+ & Smart H.264+
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Dual Light
-
Dahua Dual Light Technology has flexible illumination modes
-
The warm light in the camera can be used to output full-color videos 24/7, and the IR light can be accessed for general monitoring
-
The lights can also be manually selected to suit the scene, making the technology suitable for use in residential areas, retail stores, roads and many other locations
-
Motion Detection
-
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
-
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage
-
These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device
-
Protection (IP67, Wide Voltage)
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
ProductSpecification
| Brand | Dahua | ||||
| Product Type | Network Camera | ||||
| Product Model | DH-IPC-HDW1439T2-A-IL | ||||
| Camera | |||||
| Image Sensor | 1/3Inch CMOS | ||||
| Maximum Resolution | 2560 (H) × 1440 (V) | ||||
| ROM | 16 MB | ||||
| RAM | 64 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Minimum Illumination | 0.008 lux@F1.6 (Color, 30 IRE); 0.0008 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | ||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | Up to 30 m (98.43 ft) (IR); Up to 15 m (49.21 ft) (Warm light) | ||||
| Illuminator On/Off Control | Auto;Manual | ||||
| Illuminator Number | 2 (Multi-core (IR + warm) light) | ||||
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Field Of View | 2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 64.0 m ( 209.97 ft) | 25.6 m ( 83.99 ft) | 12.8 m ( 41.99 ft) | 6.4 m ( 21.00 ft) | |
| 3.6 mm | 85.4 m ( 280.18 ft) | 34.2 m ( 112.20 ft) | 17.1 m ( 56.10 ft) | 8.5 m ( 27.89 ft) | |
| Video | |||||
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps ) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | ||||
| Stream Capability | 2 Streams | ||||
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | VBR;CBR | ||||
| Video Bit Rate | H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | DWDR | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region Of Interest (RoI) | Yes (4 areas) | ||||
| Illumination | Yes | ||||
| Image Rotation | 0°/180° | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Built-In MIC | Yes, Built-In MIC | ||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | ||||
| Alarm | |||||
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P | ||||
| Interoperability | ONVIF (Profile S & Profile T); CGI | ||||
| User/Host | 6 (Total bandwidth: 24 M) | ||||
| Storage | FTP | ||||
| Browser | IE; Chrome; Firefox | ||||
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care | ||||
| Mobile Client | iOS;Android | ||||
| Cyber Security | Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | ||||
| Power | |||||
| Power Supply | |||||
