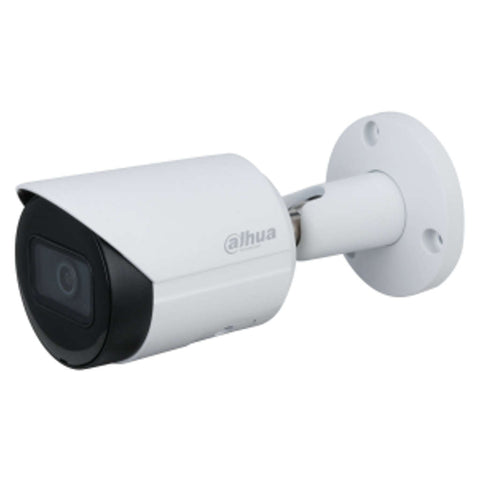

Dahua IR Fixed-Focal Bullet Network Camera 4MP DH-IPC-HFW2431S-S-S2

Dahua IR Fixed-Focal Bullet Network Camera 4MP DH-IPC-HFW2431S-S-S2

₹ 4,940.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 4MP, 1/3” CMOS image sensor, low illuminance, high image definition

  • Outputs 4MP (2560 × 1440)@25/30fps, Max. supports 4MP (2688 × 1520)@20 fps

  • H.265 codec, high compression ration, ultra-low bit rate

  • Built-in IR LED, max IR distance: 30 m

  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

  • Intelligent detection: Intrusion, tripwire

  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection

  • Supports max. 256 GB Micro SD card

  • 12V DC/PoE power supply

  • IP67 protection

  • System Overview

  • With upgraded H.265 encoding technology, Dahua Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space

  • This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination

  • It supports SD card storage, waterproof function, dust-proof function, complying to the standards of IP67

  • Functions

  • Smart ( H.265+ & H.264+ )

  • Adopting advanced algorithm of auto stream control according to the environment, Dahua smart encoding technology realizes the higher effi-ciency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission

  • Wide dynamic range (WDR)

  • Dahua adopts advanced Wide Dynamic Range (WDR) technology

  • Youcan get clear details in the environment of strong brightness contrast

  • In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear image

  • Starlight

  • Dahua Starlight technology mainly applies to the environment of low illu-mination, and it can provide clear colorful video

  • Even in the environmentof min. illumination, the technology can guarantee the good image effect

  • Intelligent Video Analysis (IVS)

  • With advanced video algorithm, Dahua camera supports intelligent detec-tion, such as tripwire and

  • intrusion and so on

  • Protection (IP67, wide voltage)

  • IP67: The camera passes a series of strict test on dust and soak

  • It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes

  • Wide voltage:The camera allows ±30% input voltage tolerance (wide volt-age range), and it is widely applied to outdoor environment with instable voltage

Product Specification

Brand

Dahua

Product Type

Network Camera

Model

DH-IPC-HFW2431S-S-S2

Series

Lite

Camera

Image Sensor

1/3” 4Megapixel progressive CMOS

Effective Pixels

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Min. Illumination

0.008 Lux@F1.6

IR Distance

30 m (98.43 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm 3.6 mm

Max. Aperture

F1.6 F1.6

Field Of View

2.8 mm:Pan: 102.0°Tilt: 55.0°Diagonal: 121.0°
3.6 mm :Pan: 84.0°Tilt: 45.0°Diagonal: 100.0°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recogniz

Identify

2.8 mm

56 m (183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

3.6 mm

80 m

(262.47 ft)

32.0 m

(104.99 ft)

16.0 m

(52.49 ft)

8.0 m

(26.25 ft)

Smart Event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main Stream

2688 × 1520 (1 fps-20 fps)

2560 × 1440 (1 fps-25/30 fps)

Sub Stream

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability

2 Stream

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region Of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec

User/Host

20

Edge Storage

Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH

Storage Temperature

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

166.2 mm × Φ70 mm (6.54" × Φ2.76")

Net Weight

0.48 kg (1.1 lb)

Gross Weight

0.57 kg (1.3 lb)

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (MM)

166.2 x 70

Unit Of Measurement

1 Piece

Generic Name

Network Camera

Weight

0.6 kg

Manufacturer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China

Packer Details

Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China

Importer Details

Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100

Country Of Origin

China
