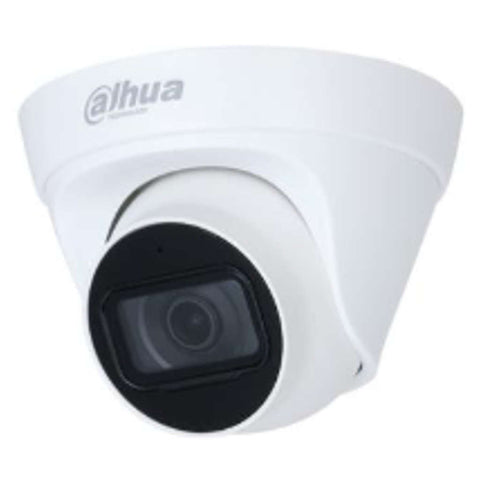

Dahua Entry IR Fixed-Focal Eyeball Network Camera 2MP DH-IPC-HDW1230T1P-A-S4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
2-MP 1/2.8" CMOS image sensor,low luminance,and high definition image
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, audio detection and illegal access
-
Functions
-
With advanced scene-adaptive rate control algorithm,Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264,provides high-quality video,and reduces the cost of storage and transmission
-
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
-
Motion Detection
-
When moving objects appear in the monitoring image,Dahua Motion Detection technology triggers alarm or records
-
Dahua network cameras employ a series of security technologies,including security authentication and authorization, access control protocols,trusted protection,encrypted transmission and encrypted
storage -
These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies)input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
| Brand | Dahua | ||||
| Product Type | Network Camera | ||||
| Product Model | DH-IPC-HDW1230T1P-A-S4 | ||||
| Series | Entry | ||||
| Camera | |||||
| Image Sensor | 1/2.8” 2Megapixel progresive CMOS | ||||
| Effective Pixels | 1920(H) x1080(V) | ||||
| RAM/ROM | 64MB/16MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) | ||||
| S/N Ratio | More than 56dB | ||||
| IR Distance | Distance up to 30m(98.4ft) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 1 | ||||
| Pan/Tilt/Rotation Range | Pan:0° ~360° ;Tilt:0° ~78° ;Rotation:0° ~360° | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm 3.6 mm | ||||
| Maximum Aperture | |||||
| Angle Of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 88°; Vertical: 47°; Diagonal: 104° | ||||
| Focal Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.62 ft) | ||||
| DORI Distance | |||||
| Lens | Detect | Observe | Recognize | Identify | |
| 2.8 mm | 38.6 m (126.64 ft) | 15.4 m (50.52 ft) | 7.7 m (25.26 ft) | 3.9 m (12.80 ft) | |
| 3.6 mm | 49.7 m (163.06 ft) | 19.9 m (65.29 ft) | 9.9 m (32.48 ft) | 5.0 m (16.40 ft) | |
| Video | |||||
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Frame Rate | Main stream: 1920 × 1080@1–25/30 fps Sub stream: 704 × 576@1–25 fps 704 × 480@1–30 fps | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | ||||
| Day/Night | Auto(IR-Cut) / Color / B/W | ||||
| BLC Mode | BLC / HLC /DWDR | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | Off / On (4 Zone, Rectangle) | ||||
| Region Of Interest | Off / On (4 Zone) | ||||
| Smart IR | Support | ||||
| Digital Zoom | 16x | ||||
| Flip | 0°/90°/180°/270° | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711A; G.711Mu; G.726 | ||||
| Built-In MIC | Yes | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP | ||||
| Interoperability | ONVIF (Profile S); CGI; P2P; Genetec | ||||
| Streaming Method | Unicast / Multicast | ||||
| User/Host | 6 (Total bandwidth: 36 M) | ||||
| Edge Storage | FTP | ||||
| Web Viewer | IE, Chrome, Firefox | ||||
| Management Software | Smart PSS, DSS, DMSS | ||||
| Mobile Phone | IOS, Android | ||||
| Electrical | |||||
| Power Supply | DC12V PoE (802.3af) | ||||
| Power Consumption | Basic: 1.2 W ( 2 VDC); 2 W (PoE) Max. (ICR + H.265 + IR intensity): 3.1 W (12 VDC); 4.1 W (PoE) | ||||
| Environmental | |||||
| Operating Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH | ||||
| Storage Conditions | -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Construction | |||||
| Casing | Metal+Plastic | ||||
| Colour | White | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (MM) – LxΦ | 85.5 x 109 |
| Unit Of Measurement | 1 Piece |
| Generic Name | Network Camera |
| Weight | 0.370 kg |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China |
| Importer Details | Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
| Country Of Origin | China |
