Out of Stock!
SKU # 1000118071

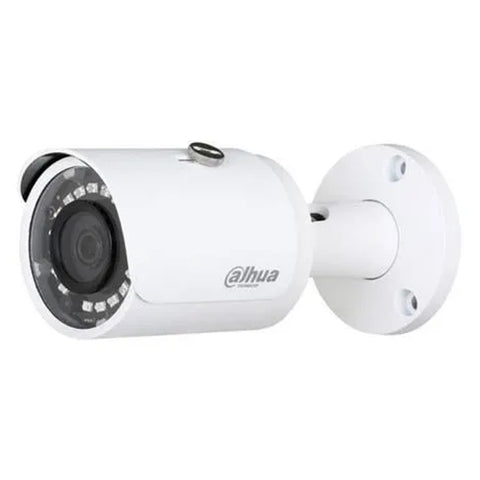

Dahua IR Mini Bullet Network Camera 4MP DH-IPC-HFW14B0SP
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4Megapixel progressive CMOS
-
H.265+ & H.265 dual-stream encoding
-
20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
-
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
-
MultIPle network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
-
2.8 mm fixed lens (3.6mm optional)
-
Max IR LEDs Length 30m
-
IP67, PoE
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Bullet Camera |
||||
|
Product Model |
DH-IPC-HFW14B0SP |
||||
|
Camera |
|||||
|
Image Sensor |
1/3” 4Megapixel progresive CMOS |
||||
|
Effective Pixels |
2688(H)x1520(V) |
||||
|
RAM/ROM |
256MB/16MB |
||||
|
Scanning System |
Progressive |
||||
|
Minimum Illumination |
0.09Lux/F2.0( Color,1/3s,30IRE) 0.5Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
||||
|
S/N Ratio |
More than 50dB |
||||
|
IR Distance |
Distance up to 30m(98ft) |
||||
|
IR On/Off Control |
Auto/ Manual |
||||
|
IR LEDs |
18 |
||||
|
Lens |
|||||
|
Lens Type |
Fixed |
||||
|
Mount Type |
Board-in |
||||
|
Focal Length |
2.8 mm (3.6 mm optional) |
||||
|
Maximum Aperture |
F2.0/F2.0 |
||||
|
Angle of View |
H:101°/80°, V:54°/44° |
||||
|
Focus Control |
Fixed |
||||
|
Close Focus Distance |
0.8 |
||||
|
Lens |
Detect Observe Recognize Identify |
||||
|
DORI Distance |
|||||
|
Lens |
Detect |
Observe |
Recognize |
Identify |
|
|
2.8 mm |
56m(184ft) |
22.4m(73.5ft) |
11.2m(36.7ft) |
5.6m(18.4ft) |
|
|
3.6 mm |
80m(262.5ft) |
32m(105ft) |
16m(52.5ft) |
8m(26.3ft) |
|
|
PTZ |
|||||
|
Pan/Tilt Range |
Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
||||
|
Video |
|||||
|
Compression |
H.265/H.264H/MJPEG(Sub Stream) |
||||
|
Smart Codec |
Support H.265+/H.264+ |
||||
|
Streaming Capability |
2 Streams |
||||
|
Resolution |
4M(2688X1520)/3M(2304×1296)/1080P(1920×1080)/7 20P(1280×720)/VGA(640×480)/D1(704×576/704×480)/ CIF(352×288/352×240) |
||||
|
Frame Rate |
Main Stream: 4M(1 ~ 20fps) Sub Stream: D1(1 ~ 20fps) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Bit Rate |
H.264: 32K~6144K H.265: 12K~ 6144K |
||||
|
Day/Night |
Auto(ICR) / Color / B/W |
||||
|
BLC Mode |
BLC / HLC / DWDR |
||||
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
||||
|
Region of Interest |
Off / On (4 Zone) |
||||
|
Electronic Image Stabilization (EIS) |
N/A |
||||
|
Smart IR |
Support |
||||
|
Digital Zoom |
16x |
||||
|
FlIP |
0°/90°/180°/270° |
||||
|
Mirror |
Off / On |
||||
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||
|
Audio |
|||||
|
Compression |
N/A |
||||
|
Network |
|||||
|
Ethernet |
RJ-45 (10/100Base-T) |
||||
|
Protocol |
HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;T LS;SSH |
||||
|
Interoperability |
ONVIF Profile S&G, API |
||||
|
Streaming Method |
Unicast / Multicast |
||||
|
Maximum User Access |
10 Users/20 Users |
||||
|
Edge Storage |
NAS(Network Attached Storage) Local PC for instant recording |
||||
|
Web Viewer |
IE, Chrome, Firefox, Safari |
||||
|
Management Software |
Smart PSS, DSS,DMSS |
||||
|
Smart Phone |
IOS, Android |
||||
|
Certifications |
|||||
|
Certifications |
N/A |
||||
|
Interface |
|
||||
|
Video Interface |
N/A |
||||
|
Audio Interface |
N/A |
||||
|
RS485 |
N/A |
||||
|
Alarm |
N/A |
||||
|
Electrical |
|||||
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
||||
|
Power Consumption |
<4.2W |
||||
|
Environmental |
|||||
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||
|
Ingress Protection |
IP67 |
||||
|
Vandal Resistance |
N/A |
||||
|
Construction |
|||||
|
Casing |
Metal |
||||
|
Warranty |
As Per Manufacturer Terms and Condition |
||||
OtherDetails
|
Dimension (CM) - L x B x H |
Φ71.6m ×164.7 mm |
|
Unit of Measurement |
1 Piece |
|
Weight |
0.49Kg |
|
Generic Type |
Network Camera |
|
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
|
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
|
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
|
Country of Origin |
China |
