SKU # 1000103124

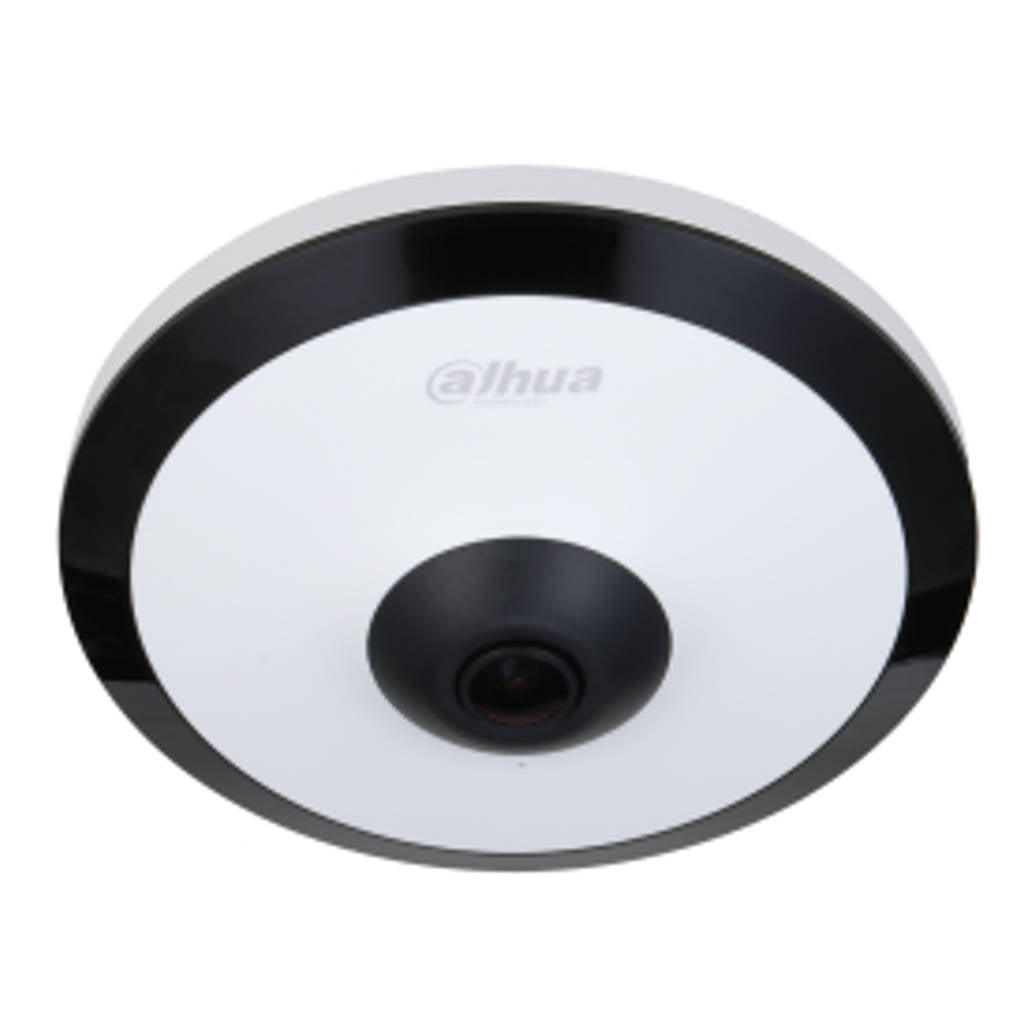

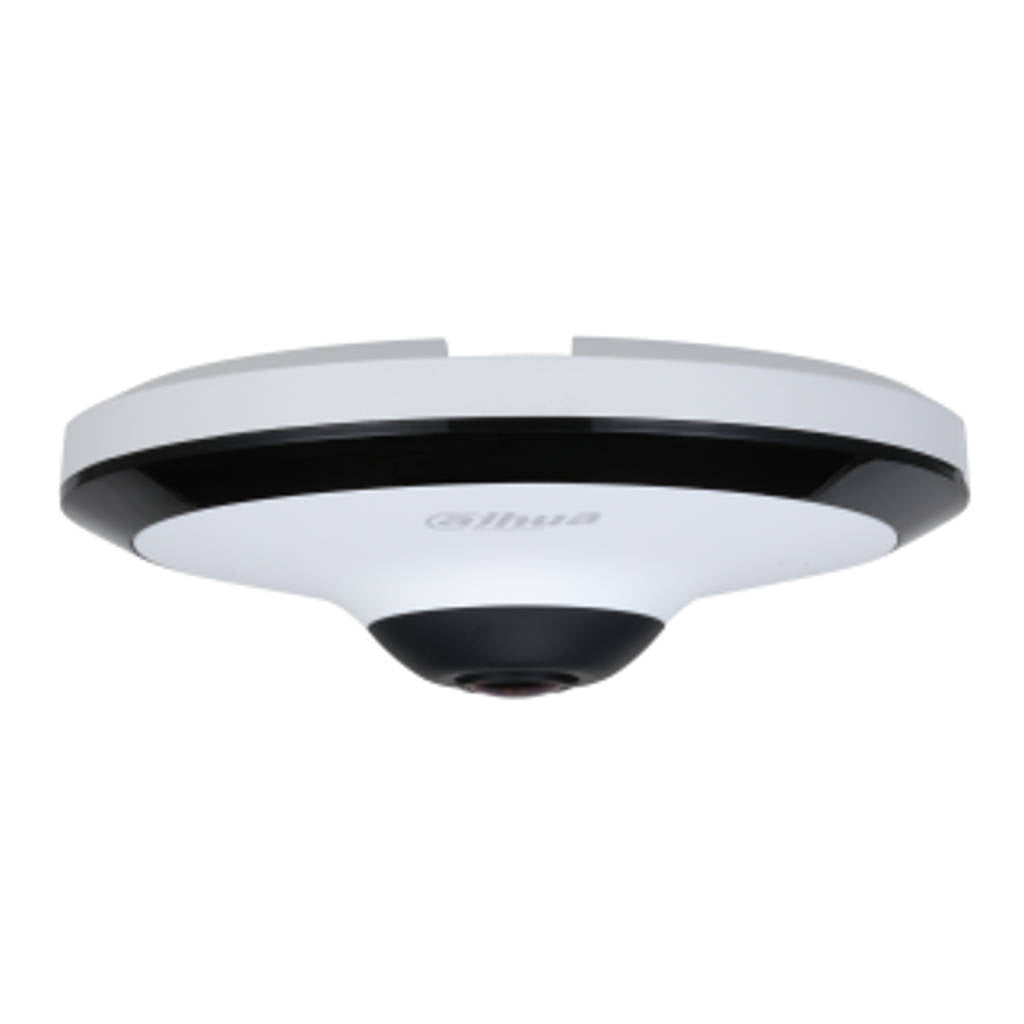

Dahua WizMind IR Fisheye Network Camera 5MP DH-IPC-EW5541P-AS
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs Maximum 5MP (2592 × 1944) @25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in efficient IR illuminator, and the Maximum illumination distance: 10 m
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Intelligent detection: Intrusion, tripwire, people counting in area
-
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
-
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports Maximum 256 G Micro SD card, built-in Mic
-
12V DC/PoE power supply, easy for installation
-
Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported
-
With fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely
applied in various scenes such as airports, shopping centers, banks and hotels.
-
Functions
-
Smart H.265+ & Smart H.264+
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the
-
higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Heat Map
-
Duhua heat map technology is used to display the crowd density and people appearance probability Display the crowd status by differentcolors
-
Generally, the crowd status is the statistics of people quantity in space and time dimensions
-
In Area No
-
With advanced stereo image technology and deep leaning algorithm, Dahua In Area No. technology recognizes human targets accurately to count people in area in real-time. You can set people quantity threshold, when the number larger or smaller than the threshold, it triggers linkage
-
It is applicable in the scene that has limit on people quantity.
-
With advanced Wide Dynamic Range (120dB WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast
-
The bright and dark area can get clear video even in high brightness environment or with backlight shadow
-
Cyber Security
-
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device
-
Protection (wide voltage)
-
The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
| Brand | Dahua | ||
| Product Type | Netwok Camera | ||
| Product Code | DH-IPC-EW5541P-AS | ||
| Series | WizMind | ||
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS | ||
| Maximum Resolution | 2592 (H) × 1944 (V) | ||
| ROM | 128 MB | ||
| RAM | 512 MB | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||
| Minimum Illumination | 0.006 Lux@F2.0 (Color, 30IRE) 0.0006 Lux@F2.0 (B/W, 30IRE) 0 Lux (Illuminator on) | ||
| S/N Ratio | > 56 dB | ||
| Illumination Distance | 10 m (32.8 ft) | ||
| Illuminator On/Off Control | Auto/Manual | ||
| Illuminator Number | 3 (IR LED) | ||
| Lens Type | Fixed-focal | ||
| Mount Type | M12 | ||
| Focal Length | 1.4 mm | ||
| Maximum Aperture | F2.0 | ||
| Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° | ||
| Iris Type | Fixed | ||
| DORI Distance | |||
| Detect | Observe | Recognize | Identify |
| 28 m (91.9 ft) | 11.2 m (36.7 ft) | 5.6 m (18.4 ft) | 2.8 m (9.2 ft) |
| Close Focus Distance | 0.2 m (0.7 ft) | ||
| DORI Distance | Detect Observe Recognize Identify 28 m 11.2 m 5.6 m 2.8 m (91.9 ft) (36.7 ft) (18.4 ft) (9.2 ft) | ||
| Heat Map | Yes | ||
| IVS (Perimeter Protection) | Tripwire; intrusion | ||
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas | ||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps) sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) third stream (1280 × 720 @1–25/30 fps) | ||
| Stream Capability | 3 streams | ||
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||
| Bit Rate Control | CBR/VBR | ||
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps | ||
| Day/Night | Auto (ICR)/Color/B/W | ||
| BLC | Yes | ||
| HLC | Yes | ||
| WDR | 120 dB | ||
| Scene Self-Adaptation (SSA) | Yes | ||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||
| Gain Control | Auto/Manual | ||
| Noise Reduction | 3D DNR | ||
| Motion Detection | OFF/ON (4 areas) | ||
| Region of Interest (ROI) | Yes (4 areas) | ||
| Smart Illumination | Yes | ||
| Privacy Masking | 4 areas | ||
| Built-in MIC | Yes | ||
| Audio Compression | PCM; G.711a; G.711Mu; G726 | ||
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception | ||
| SDK and API | Yes | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | ||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P | ||
| User/Host | 20 (Total bandwidth: 64 M) | ||
| Storage | FTP; SFTP; Micro SD card (support Maximum 256 G); NAS | ||
| Browser | IE: IE8, IE9 and IE11 Chrome Firefox | ||
| Management Software | Smart PSS; DSS; DMSS | ||
| Mobile Phone | IOS; AndROId | ||
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||
| Port |
| ||
| Audio Input | 1 Channel (RCA port) | ||
| Audio Output | 1 Channel (RCA port) | ||
| Alarm Input | 1 Channel in: 5mA 3V–5V DC | ||
| Alarm Output | 1 Channel out: 300mA 12V DC | ||
| Power Supply | 12V DC/PoE | ||
| Power Consumption | Basic power consumption: 3.6W (12V DC); 4.4W (PoE) Maximum power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE) | ||
| Operating Conditions | –10°C to +50°C (14°F to +122°F)/Less than 95% RH | ||
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) | ||
| Casing | Metal + plastic | ||
| Dimensions | 44.6 × Φ126.2 mm | ||
| Weight | 441 g | ||
| Warranty | As Per Manufacturer Terms and Condition | ||
