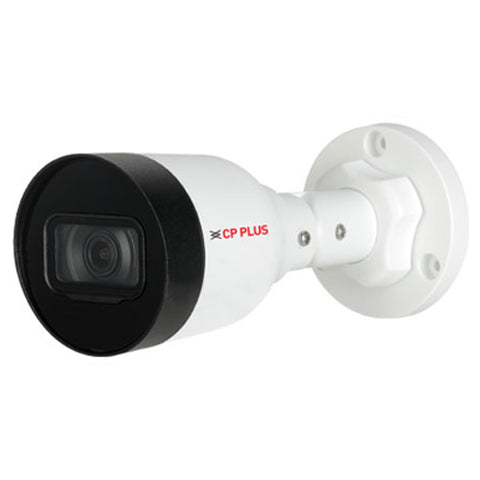

CP Plus WDR IR Network Bullet Camera 4MP 30Mtr CP-UNC-TA41PL3C-D
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4MP PS CMOS Image Sensor(0.84667cm)
-
Maximum 4MP(2560 × 1440)@25/30fps, and 4MP(2688 × 1520)@20fps
-
Smart H.265+/Smart H.264+ Dual-stream encoding
-
WDR(120dB), Day/Night(ICR), 3D-NR, ROI, AWB, AGC, BLC, HLC
-
3.6mm fixed lens(2.8mm Optional)
-
IR Range of 30 Mtrs, IP67, PoE
-
Support Built-in Mic
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-UNC-TA41PL3C-D |
|
Image Sensor |
1/3” 4MP Progressive scan CMOS(0.84667cm) |
|
Effective Pixels |
2688(H) x 1520(V) |
|
Minimum Illumination |
0.03Lux@F2.0 |
|
S/N Ratio |
>56dB |
|
Shutter Speed |
Auto/Manual, 1/3~1/100000s |
|
Gain Control(AGC) |
Auto/Manual |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
ROI |
Yes(4 areas) |
|
Back Light Compensation |
BLC / HLC / WDR(120dB) |
|
Lens |
3.6mm(2.8mm Optional) |
|
IRIS |
Fixed |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Angle Of View |
3.6mm: Horizontal: 81° Vertical: 44° Diagonal: 95° 2.8mm: Horizontal:93° Vertical: 53° Diagonal: 111° |
|
ICR |
Auto(ICR)/Color/B/W |
|
DORI Distance |
3.6mm- 80m(Detect) 32m(Observe) 16m(Recognize) 8m(Identify) 2.8mm- 50m(Detect) 22.4m(Observe) 11.2m(Recognize) 15.1m(Identify) |
|
Close Focus Distance |
2.8mm- 0.8m ; 3.6mm- 1.4m |
|
Motion Detection |
Off / On(4 area, Rectangle) |
|
Video Compression |
Smart H.265+/H.265/Smart H.264+/H.264/ H.264B/ MJPEG(only supported by the sub stream) |
|
Bit Rate |
H.265: 12 Kbps–6144 Kbps H.264: 32 Kbps–6144 Kbps |
|
Resolution |
2688 × 1520(2688 × 1520); 2560 × 1440(2560 × 1440); 2304 × 1296(2304 × 1296); 1080p(1920 × 1080); 1.3M(1280 × 960); 720p(1280 × 720); D1(704 × 576/704 × 480); VGA(640 × 480); CIF(352 × 288/352 ×240) |
|
Video Streaming |
Main Stream: 2688 × 1520(1 fps–20 fps) 2560 × 1440(1 fps–25/30 fps) Sub Stream: 704 × 576(1 fps–20/25 fps) 704 × 480(1 fps–20/30 fps) |
|
Privacy Mask |
4 Area |
|
Alarm Event |
Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception |
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour, ONVIF(Profile S/Profile G/Profile T); CGI; Milestone; Genetec; InstaOn |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Audio |
Built-in Mic |
|
Audio Compression |
G.711A; G.711Mu; G.726 |
|
SDK And API |
Yes |
|
Cyber Security |
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
|
IR |
IR Range of 30 Mtr., Smart IR |
|
Ethernet |
RJ-45(10/100Base-T) |
|
Micro SD |
FTP; NAS; SFTP |
|
Weatherproof Standard |
IP67 |
|
Casing |
Metal + Plastic |
|
Operating Temperature |
-40°C to +55°C(-40°F to +131°F) |
|
Storage Temperature |
-40°C to +60°C(-40°F to +140°F) |
|
Humidity |
less than ≤ 95% |
|
Power Source |
DC12V, PoE(802.3af) |
|
Power Consumption |
<5.0W |
|
Dimension |
162.6 mm × Φ70 mm |
|
Weight |
0.22kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
