2-MP 1/3.2Inch CMOS image sensor, low luminance, and high-definition image
-
(1920 × 1080) @30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, and the Maximum illumination distance is 30 m
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Built in Mic
-
12 VDC power supply, easy for installation
-
IP67 protection
-
Series Overview
-
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises
-
Functions
-
Smart H.265+ & Smart H.264+
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Smart Illumination
-
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
-
Motion Detection
-
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
-
Cyber Security
-
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage
-
These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device
-
Protection (IP67, Wide Voltage)
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage

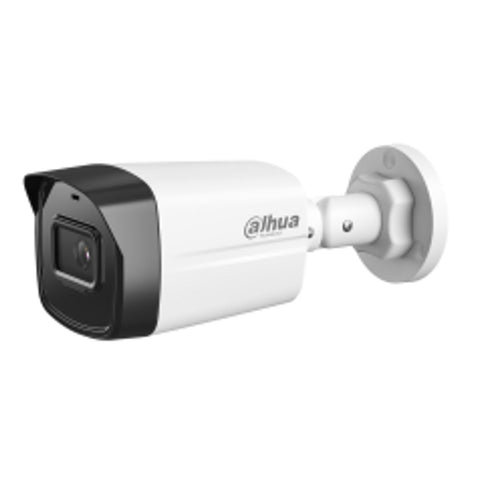

| Brand | Dahua |
| Product Type | Network Bullet Camera |
| Product Model | DH-IPC-HFW1230TL2-A |
| Camera |
| Image Sensor | 1/3.2Inch CMOS |
| Effective Pixels | 1920(H) x1080(V) |
| RAM/ROM | 64MB/16MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| IR Distance | Up to 30 m (98.43 ft) (IR LED) |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 2 |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6 mm |
| Maximum Aperture | F2.0 |
| Angle Of View | H: 79°; V: 43°; D: 94° |
| Focus Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm | 55.0 m (180.45 ft) | 22.0 m (72.18 ft) | 11.0 m (36.09 ft) | 5.5 m (18.04 ft) |
| Video |
| Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Streaming Capability | 2 Streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate | Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 12Kbps ~ 4096Kbps H.264: 32Kbps ~ 4096Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| BLC Mode | BLC / HLC /DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 areas, Rectangle) |
| Region Of Interest | Off / On (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio |
| Built-In MIC | Yes, Built-In MIC |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception |
| Network |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol
| IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P |
| Interoperability | ONVIF (Profile S; Profile T); CGI |
| User/Host | 6 (Total bandwidth: 24 M) |
| Edge Storage | FTP |
| Web Viewer | IE, Chrome, Firefox |
| Mobile Client | iOS;Android |
| Cyber Security | Configuration encryption;Trusted
execution;Digest;Security logs;HTTPS;Trusted
upgrade;WSSE;Trusted boot;Account lockout;Generation
and importing of X.509 certification;Video encryption |
| Power |
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 1.2 W (12 VDC); 2.1 W (PoE) Maximum (ICR switch + illuminator intensity): 2.8 W (12 VDC); 4 W (PoE) |
| Operating Conditions | –40 °C to +50 °C (–40 °F to +122 °F) / Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Casing | Plastic |
| Dimensions | 198.9 × 80.2 × 76.2 mm |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight |
|
