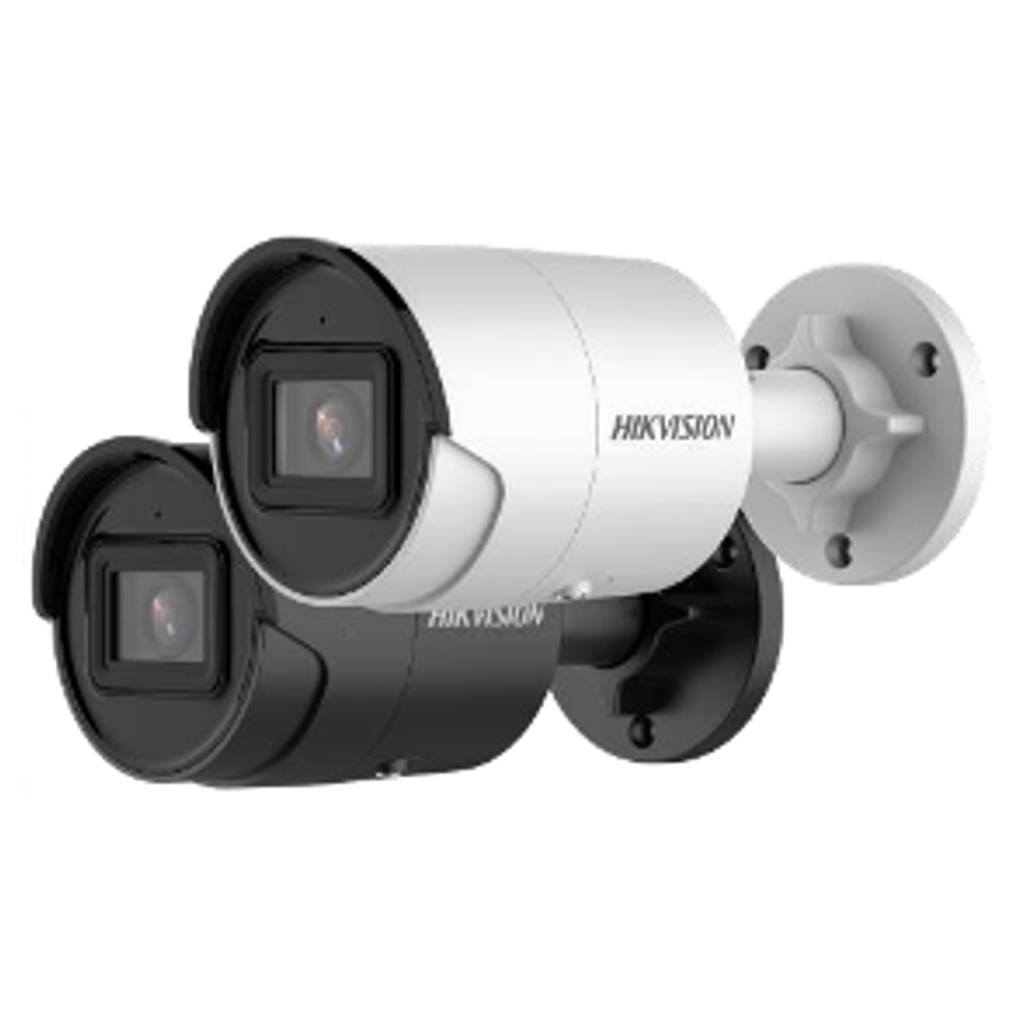

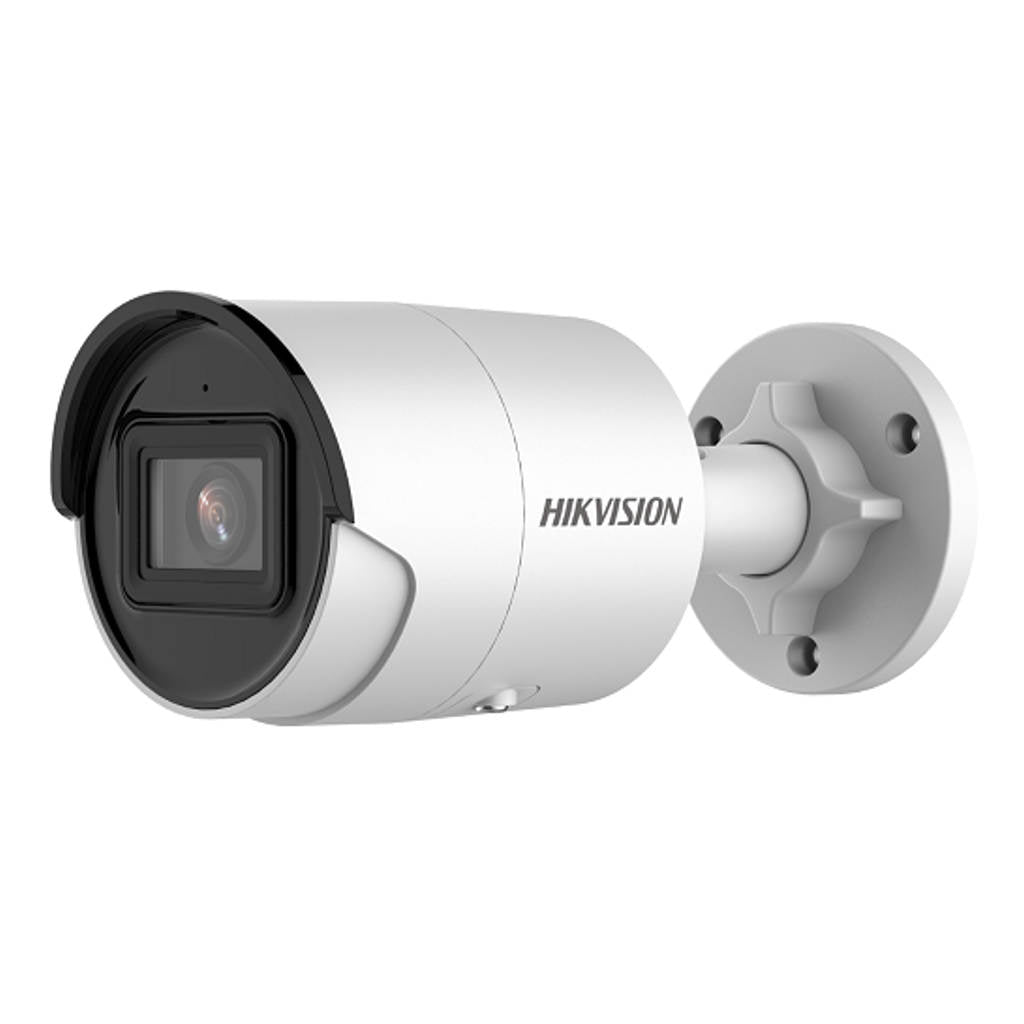

Hikvision Pro Series AcuSense Fixed Bullet Network Camera 4MP DS-2CD2043G2-IU
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Clear imaging against strong backlight due to 120 dB WDR technology
-
Efficient H.265+ compression technology
-
-U: Built-in microphone for real-time audio security
-
Water and dust resistant (IP67)
-
Focus on human and vehicle targets classification based on deep learning
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Bullet Camera |
|
Product Code |
DS-2CD2043G2-IU |
|
Series |
Pro |
|
Camera |
|
|
Image Sensor |
1/3′′ Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6 AGC ON) 0 Lux with IR on |
|
Shutter Speed |
1/3 s to 1/100 000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
120 dB |
|
Day & Night |
ICR Cut |
|
Angle Adjustment |
Pan: 0° to 360° tilt: 0° to 90° rotate: 0° to 360° |
|
Lens |
|
|
Lens Type & Fov |
2.8 mm horizontal FOV 103° vertical FOV 55° diagonal FOV 122° 4 mm horizontal FOV 84° vertical FOV 45° diagonal FOV 100° 6 mm horizontal FOV 52° vertical FOV 28° diagonal FOV 61° |
|
Aperture |
F1.6 |
|
Lens Mount |
M12 |
|
DORI |
|
|
DORI |
2.8 mm: D: 67 m O: 26 m R: 13 m I: 6 m 4 mm: D: 80 m O: 31 m R: 16 m I: 8 m 6 mm: D: 120 m O: 47 m R: 24 m I: 12 m |
|
Illuminator |
|
|
IR Range |
Up to 40 m |
|
Wavelength |
850 nm |
|
Video |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50Hz: 25fps (2688 × 1520 1920 × 1080 1280 × 720) 60Hz: 30fps (2688 × 1520 1920 × 1080 1280 × 720) |
|
Sub Stream |
50Hz: 25 fps (640 × 480 640 × 360) 60Hz: 30 fps (640 × 480 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) 60 Hz: 10 fps (1920 × 1080 1280 × 720 640 × 480 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main Stream supports |
|
H.265+ |
Main Stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
Yes |
|
Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Environment Noise Filtering |
-U: Yes |
|
Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Bit Rate |
-U: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC) |
|
Network |
|
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video Interface (Profile S Profile G) ISAPI SDK |
|
Protocols |
TCP/IP ICMP HTTP HTTPS FTP DHCP DNS DDNS RTP RTSP NTP UPnP SMTP IGMP 802.1X QoS IPv6 UDP Bonjour SSL/TLS PPPoE |
|
User/Host |
Up to 32 users. 3 user levels: administrator operator and user |
|
Security |
Password protection complicated password HTTPS encryption IP address filter Security Audit Log basic and digest authentication for HTTP/HTTPS TLS 1.1/1.2 WSSE and digest authentication for Open Network Video Interface |
|
Networkstorage |
MicroSD/SDHC/SDXC card (256 GB) local storage and NAS(NFS SMB/CIFS) auto network replenishment (ANR) |
|
Client |
iVMS-4200 Hik-Connect Hik-Central |
|
Web Browser |
Plug-in requIRed live view: IE 10 IE 11 Plug-in free live view : Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
Image |
|
|
Day/Night Switch |
Day Night Auto Schedule |
|
Image Enhancement |
BLC HLC 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mIRror privacy mask saturation brightness contrast sharpness gain white balance adjustable by client software or web browser |
|
Interface |
|
|
Built-In Microphone |
-U: Yes |
|
On-Board Storage |
Built-in micro SD up to 256 GB |
|
Hardware Reset |
Yes |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification) video tampering alarm exception |
|
Face Detection |
Yes |
|
Deep Learning Function |
Web Browser |
|
Web Browser |
Plug-in requIRed live view: IE 10 IE 11 Plug-in free live view : Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
General |
|
|
Linkage Method |
Upload to FTP/memory card/NAS notify surveillance center trigger record trigger capture |
|
Web Browser |
Plug-in requIRed live view: IE 10 IE 11 Plug-in free live view : Chrome 57.0+ FIRefox 52.0+ Local service: Chrome 57.0+ FIRefox 52.0+ |
|
General Function |
Anti-flicker heartbeat password reset via e-mail pixel counter |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% reverse polarity protection PoE: (802.3af 36 V to 57 V) Class 3 |
|
Power Consumption And |
12 VDC 0.5 A max. 6 W |
|
Current |
PoE (802.3af 36 V to 57 V) 0.2 A to 0.13 A max. 7 W |
|
Power Interface |
Ø 5.5 mm coaxial power plug |
|
Approval |
|
|
Emc |
FCC (47 CFR Part 15 Subpart B); CE-EMC (EN 55032: 2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6 2016); KC (KN 32: 2015 KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) |
|
Camera Dimension |
Ø70 × 161.7 mm (Ø2.76′′ × 6.37′′) |
|
Camera Weight |
Approx. 490 g (1.1 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
