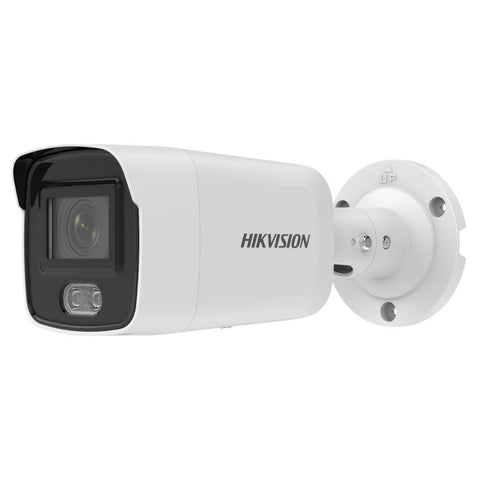

Hikvision Pro Series ColorVu Fixed Bullet Network Camera 4MP DS-2CD2047G2-LU
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Efficient H.265+ compression technology
-
Clear imaging against strong backlight due to 130 dB WDR technology
-
Built-in microphone for real-time audio security(-U)
-
Focus on human and vehicle targets classification based ondeep learning
-
24/7 colorful imaging
-
Water and dust resistant (IP67)
Product Specification
|
Brand |
Hikvision |
|
Product Type |
Bullet Camera |
|
Product Code |
DS-2CD2047G2-LU |
|
Series |
Pro |
|
Camera |
|
|
Image Sensor |
1/1.8" Progressive Scan CMOS |
|
Min. Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
|
Shutter Speed |
1/3 s to 1/100,000 s |
|
Slow Shutter |
Yes |
|
P/N |
P/N |
|
Wide Dynamic Range |
130 dB |
|
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
|
Lens |
|
|
Lens Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
|
IRis Type |
Fixed |
|
Lens Type & FOV |
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
|
Depth Of Focus |
2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞ |
|
Aperture |
F1.0 |
|
Lens Mount |
M16 |
|
DORI |
|
|
DORI |
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
|
Illuminator |
|
|
Supplement Light Type |
WhiteLight |
|
White Light Range |
40 m |
|
Smart Supplement Light |
Yes |
|
Video |
|
|
Max. Resolution |
2688 × 1520 |
|
Main Stream |
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
|
Third Stream |
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under CErtain settings. |
|
Video Compression |
Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under CErtain settings. |
|
Video Bit Rate |
32 Kbps to 8 Mbps |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
H.265 Type |
Main Profile |
|
H.264+ |
Main stream supports |
|
H.265+ |
Main stream supports |
|
Bit Rate Control |
CBR/VBR |
|
Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
|
Region Of Interest (ROI) |
1 fixed region for main stream and sub-stream |
|
Audio |
|
|
Environment Noise Filtering |
-U: Yes |
|
Audio Sampling Rate |
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
|
Audio Compression |
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
|
Audio Bit Rate |
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
|
Network |
|
|
Simultaneous Live View |
Up to 6 channels |
|
API |
Open Network Video InterFace (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
|
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
|
User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterFace |
|
Network Storage |
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|
Client |
iVMS-4200, Hik-Connect, Hik-CEntral |
|
Web Browser |
Plug-in requIRed live view: IE 10+ Plug-in free live view: Chrome 57.0+, FIRefox 52.0+ Local serviCE: Chrome 57.0+, FIRefox 52.0+ |
|
Image |
|
|
SNR |
≥ 52 dB |
|
Day/Night Switch |
Auto, Schedule |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Image Parameters Switch |
Yes |
|
Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balanCE adjustable by client software or web browser |
|
InterFace |
|
|
Built-In Microphone |
-U: Yes |
|
On-Board Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
|
Hardware Reset |
Yes |
|
Communication InterFace |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Event |
|
|
Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exCEption |
|
Smart Event |
SCEne change detection |
|
Deep Learning Function |
|
|
Face Capture |
Yes |
|
Perimeter Protection |
Line crossing detection, intrusion detection, region entranCE detection, region exiting detection |
|
General |
|
|
Linkage Method |
Upload to NAS/memory card/FTP, notify surveillanCE CEnter, trigger recording, trigger capture, send email |
|
Firmware Version |
V5.5.112 |
|
Web Client Language |
33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|
General Function |
Anti-flicker, heartbeat, mIRror, privacy mask, flash log, password reset via email, pixel counter |
|
Software Reset |
Yes |
|
Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Startup And Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
|
Power Supply |
12 VDC ± 25% PoE: 802.3af, Class 3 |
|
Power Consumption And |
12 VDC, 0.5 A, max. 6 W |
|
Current |
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W |
|
Power InterFace |
Ø 5.5 mm coaxial power plug |
|
Approval |
|
|
Emc |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC/EN 60950-1) |
|
Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|
Protection |
IP67 (IEC 60529-2013) |
|
Camera Dimension |
215.2 mm × 78.8 mm × 78.6 mm (8.5" × 3.1" × 3.1") |
|
Camera Weight |
Approx. 695 g (1.5 lb.) |
|
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
