SKU # 1000083034

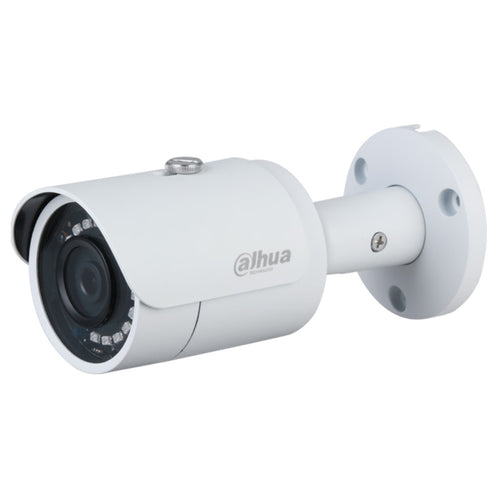

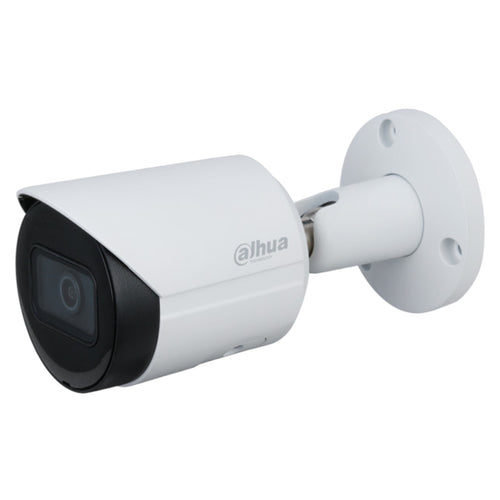

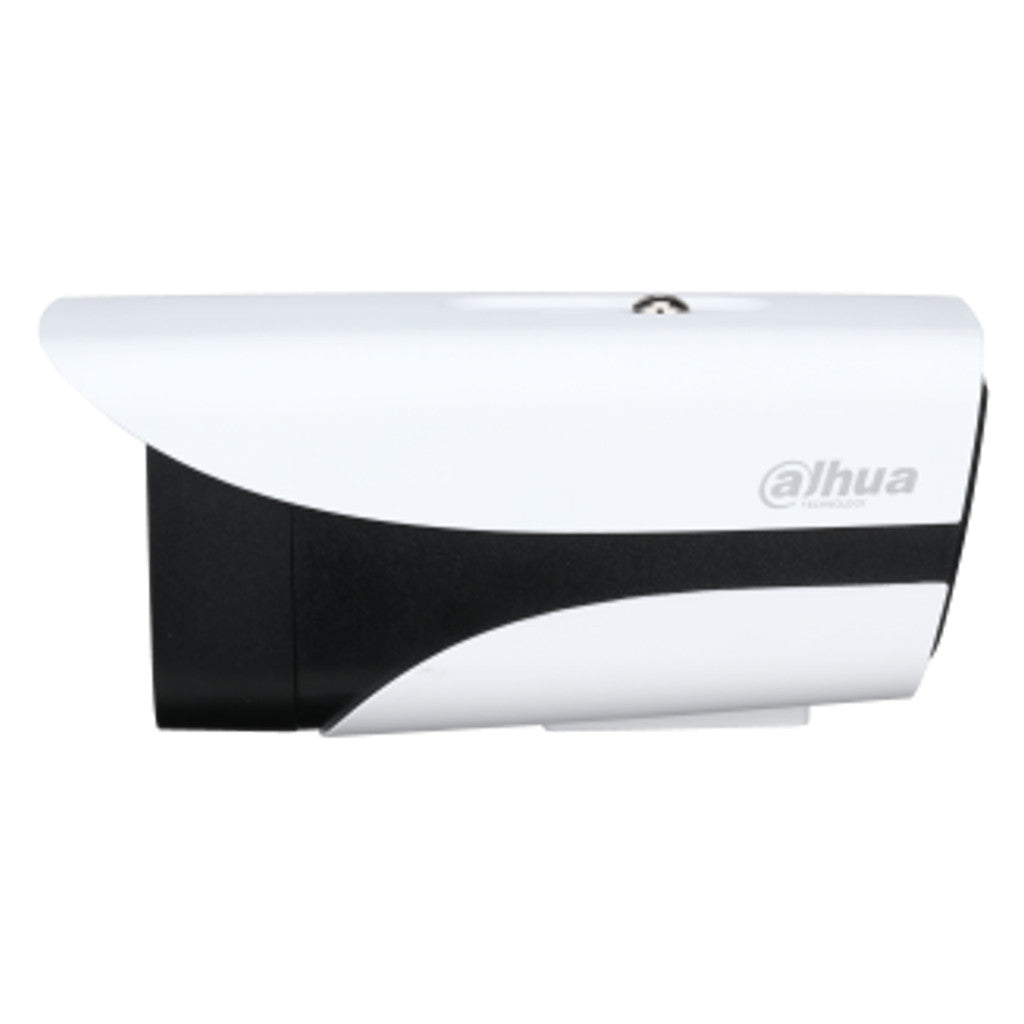

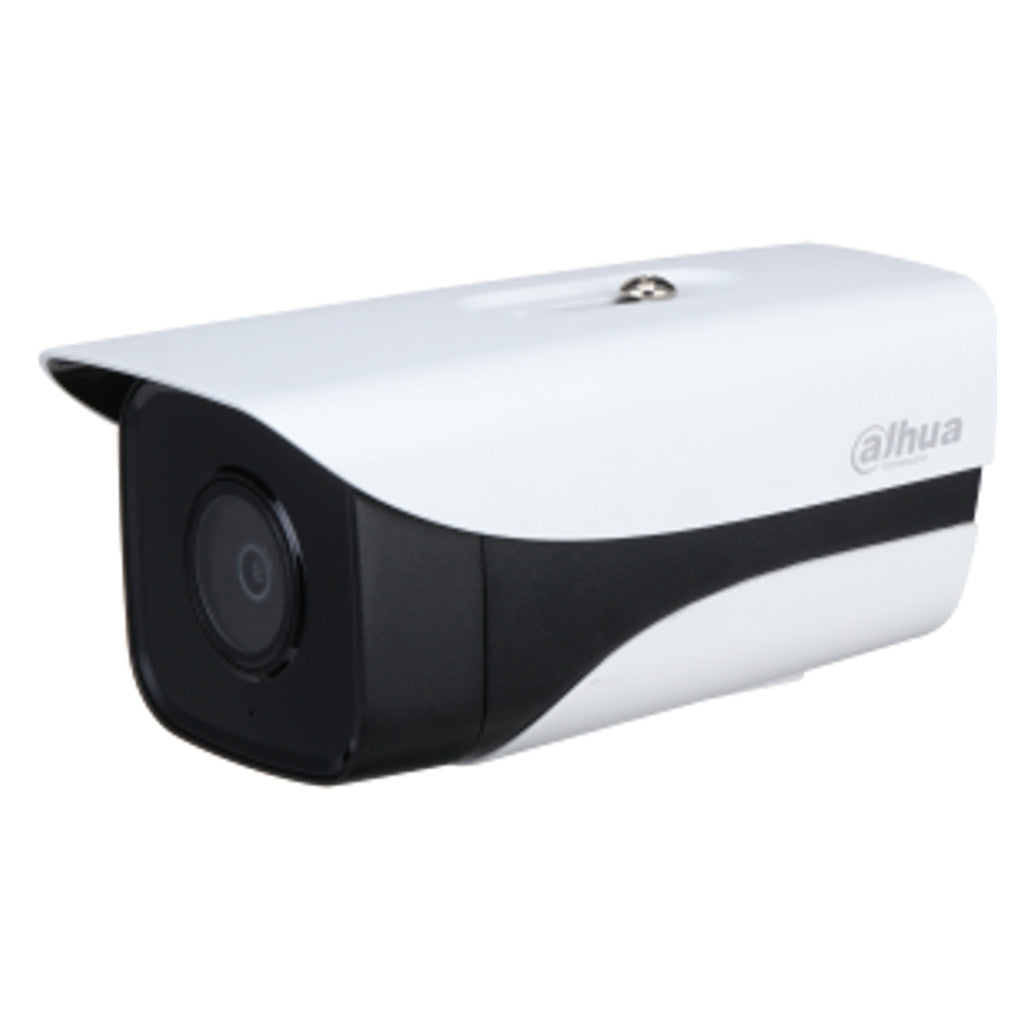

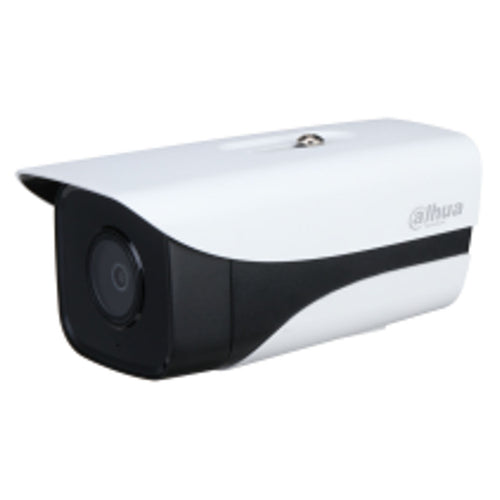

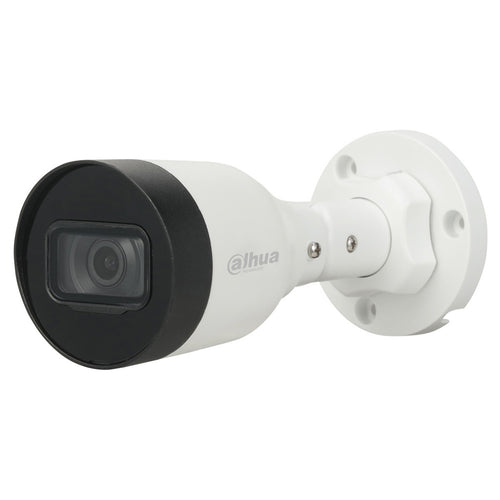

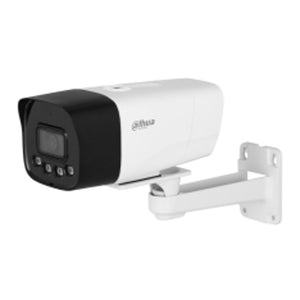

Dahua Entry IR Fixed-Focal Bullet Netwok Camera 2MP DH-IPC-HFW1230M-A-I1-B-S5
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
-
Outputs max. 2MP (1920 × 1080) @25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in efficient IR illuminator, and the max. illumination distance is 50 m
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, and illegal access
-
Built-in Mic
-
12V DC/PoE power supply
-
IP67 protection
-
Smart H.265+ & Smart H.264+
-
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission
-
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
-
Motion Detection
-
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
-
Image Flip
-
For narrow and long scenes, Dahua image flip technology flips the image by 90°/270° to realize better surveillance in rotation mode
-
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
|
Brand |
Dahua |
||||
|
Product Type |
Network Camera |
||||
|
Model |
DH-IPC-HFW1230M-A-I1-B-S5 |
||||
|
Series |
Entry |
||||
|
Camera |
|||||
|
Image Sensor |
1/2.8" CMOS |
||||
|
Max. Resolution |
1920 (H) × 1080 (V) |
||||
|
ROM |
16 MB |
||||
|
RAM |
64 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.01 Lux @F2.0 |
||||
|
S/N Ratio |
> 56 dB |
||||
|
Illumination Distance |
3.6 mm: 30 m (98.4 ft) 6 mm: 50 m (164.0 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
1 (IR LED) |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Lens Mount |
M12 |
||||
|
Focal Length |
3.6 mm; 6 mm |
||||
|
Max. Aperture |
3.6 mm: F2.0 6 mm: F2.0 |
||||
|
Field Of View |
3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° 6 mm: Horizontal: 53°; Vertical: 30°; Diagonal: 60° |
||||
|
Iris Control |
Fixed |
||||
|
Close Focus Distance |
3.6 mm: 0.8 m (2.6 ft) 6 mm: 2.2 m (7.2 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recogniz |
Identify |
|
3.6 mm |
49.7 m (163.1 ft) |
19.9 m (65.3 ft) |
9.9 m (32.5 ft) |
5.0 m (16.4 ft) |
|
|
6 mm |
82.8 m (271.7 ft) |
33.1 m (108.6 ft) |
16.6 m (54.5 ft) |
8.3 m (27.2 ft) |
|
|
Video |
|
||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
||||
|
Smart Codec |
Smart H.265+/Smart H.264+ |
||||
|
Video Frame Rate |
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps |
||||
|
Day/Night |
Auto (ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
DWDR |
||||
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D NR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region Of Interest (RoI) |
Yes (4 areas) |
||||
|
Smart Illumination |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-In MIC |
Yes |
||||
|
Audio Compression |
G.711A; G.711Mu; G.726; PCM |
||||
|
Alarm |
|||||
|
Alarm Event |
Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
SDK and API |
Yes |
||||
|
Cyber Security |
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
||||
|
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
||||
|
Interoperability |
ONVIF (Profile S/Profile T); CGI; P2P; Genetec |
||||
|
User/Host |
6 (Total bandwidth: 36 M) |
||||
|
Storage |
FTP |
||||
|
Browser |
IE Chrome F refox |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
|||||
|
Certification |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
Basic power consumption: 1.5W (12V DC); 2.3W (PoE) Max. power consumption (ICR + H.265 + IR intensity): 3.6W (12V DC); 4.7W (PoE) |
||||
|
Operating Conditions |
–40°C to +60°C (–40°F to +140°F) |
||||
|
Storage Temperature |
≤ 95% |
||||
|
Protection Grade |
–40°C to +60°C (–40°F to +140°F) |
||||
|
Structure |
|||||
|
Casing |
Metal + plastic |
||||
|
Dimensions |
194 mm × 96 mm × 89 mm (7.6" × 3.8" × 3.5") |
||||
|
Net Weight |
0.64 kg (1.4 lb) |
||||
|
Gross Weight |
0.78 kg (1.7 lb) |
||||
|
Warranty |
As Per Manufacturer Terms and Condition |
||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
