SKU # 1000134808

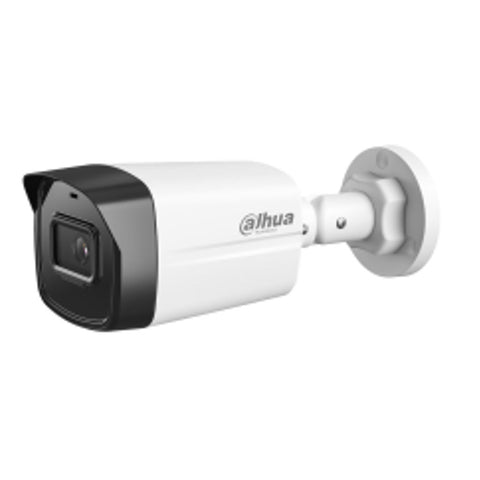

Dahua 2 MP Entry IR Fixed Focal Network Bullet Camera DH-IPC-HFW1230TL2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
2-MP 1/3.2" CMOS image sensor, low luminance, and high-definition image
-
Outputs max 2 MP (1920 × 1080) @30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, and the max illumination distance is 30 m
-
Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
12 VDC power supply, easy for installation
-
IP67 protection
-
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/
residences, small-sized retail stores, and other small and medium-sized enterprises -
Functions
-
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart
encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission -
Smart Illumination
-
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts Illuminations intensity automatically to display the details of the moving target
-
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records
-
Cyber Security
-
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage
-
These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device
-
Protection (IP67, Wide Voltage)
-
IP67: The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes
-
Wide voltage: The camera allows ±30% (for some power supplies)
-
input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
ProductSpecification
| Brand | Dahua | ||||
| Product Type | Network Bullet Camera | ||||
| Product Model | DH-IPC-HFW1230TL2 | ||||
| Camera | |||||
| Image Sensor | 1/3.2" CMOS | ||||
| Effective Pixels | 1920(H) x1080(V) | ||||
| RAM/ROM | 64MB/16MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on) | ||||
| S/N Ratio | >56 dB | ||||
| IR Distance | Up to 30 m (98.43 ft) (IR LED) | ||||
| IR On/Off Control | Auto/ Manual | ||||
| IR LEDs | 2 | ||||
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm | ||||
| Maximum Aperture | F2.0 | ||||
| Angle Of View | H: 79°; V: 43°; D: 94° | ||||
| Focus Control | Fixed | ||||
| Close Focus Distance | 0.8 m (2.62 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6 mm
| 55.0 m (180.45 ft) | 22.0 m (72.18 ft) | 11.0 m (36.09 ft)
| 5.5 m (18.04 ft) | |
| Video | |||||
| Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| Streaming Capability | 2 Streams | ||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) | ||||
| Frame Rate | Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.265: 12Kbps ~ 4096Kbps H.264: 32Kbps ~ 4096Kbps | ||||
| Day/Night | Auto (ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC /DWDR | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | Off / On (4 areas, Rectangle) | ||||
| Region Of Interest | Off / On (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Image Rotation | 0°/180° | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 Areas | ||||
| Alarm | Network disconnection; IP conflict; illegal access; motion detection; audio detection; video tampering; security exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; P2P | ||||
| Interoperability | ONVIF (Profile S; Profile T); CGI | ||||
| User/Host | 6 (Total bandwidth: 24 M) | ||||
| Edge Storage | FTP | ||||
| Web Viewer | IE, Chrome, Firefox | ||||
| Cyber Security | Configuration encryption; Trusted execution; Digest; Security logs; HTTPS; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption. | ||||
| Power | |||||
| Power Supply | 12 VDC/PoE | ||||
| Power Consumption | Basic: 1.2 W (12 VDC); 2.1 W (PoE) Maximum (ICR switch + illuminator intensity): 2.8 W (12 VDC); 4 W (PoE) | ||||
| Environmental | |||||
| Operating Conditions | –40 °C to +50 °C (–40 °F to +122 °F) / Less than 95% RH | ||||
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) / Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Casing | Plastic | ||||
| Dimensions | 198.9 × 80.2 × 76.2 mm | ||||
| Net Weight | 0.25 kg (0.55 lb) | ||||
| Gross Weight | 0.37 kg (0.82 lb) | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
