SKU # 1000095077

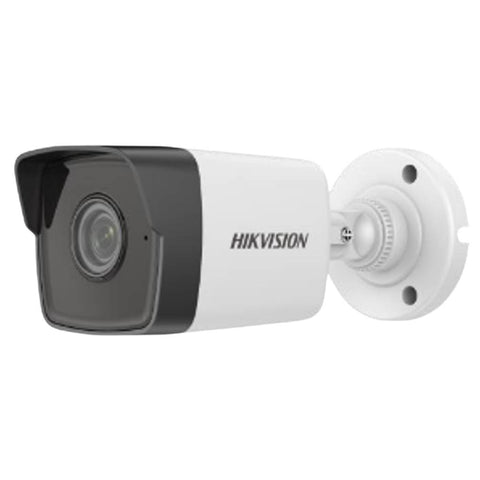

Hikvision Fixed Bullet Network Camera 4MP DS-2CD1043G0-I
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Efficient H.265+ compression technology
-
Clear imaging even with strong back lighting due to 120 dB WDR
-
EXIR 2.0: advanced infrared technology with long IR range
-
-UF: Built-in microphone for real-time audio security
Product Specification
Brand |
Hikvision |
Product Type |
Bullet Camera |
Product Code |
DS-2CD1043G0-I |
Series |
Value |
Camera | |
Image Sensor |
1/3" Progressive Scan Cmos |
Min. Illumination |
Color: 0.01 Lux @ (f2.0 Agc On) B/W: 0 Lux With IR |
Shutter Speed |
1/3 S To 1/100 000 S |
Slow Shutter |
Yes |
Wide Dynamic Range |
120 Db |
Day & Night |
IR Cut Filter |
Angle Adjustment |
Pan: 0° To 360° Tilt: 0° To 180° Rotate: 0° To 360° |
Lens | |
Focal Length & Fov |
2.8 Mm Horizontal Fov 98.0° Vertical Fov 53.1° Diagonal Fov 114.7° 4 Mm Horizontal Fov 78.7° Vertical Fov 43.1° Diagonal Fov 92.3° |
Lens Mount |
M12 |
Focus |
Fixed |
Aperture |
F2.0 |
Illuminator | |
IR Wavelength |
850 Nm |
IR Range |
Up To 30 M |
Video | |
Max. Resolution |
2560 × 1440 |
Main Stream |
50 Hz: 20 Fps (2560 × 1440) 25 Fps (2304 × 1296 1920 × 1080 1280 × 720) 60 Hz: 20 Fps (2560 × 1440) |
Sub-Stream |
30 Fps (2304 × 1296 1920 × 1080 1280 × 720) 50 Hz: 25 Fps (640 × 480 640 × 360) 60 Hz: 30 Fps (640 × 480 640 × 360) |
Video Compression |
Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/Mjpeg |
Video Bit Rate |
32 Kbps To 8 Mbps |
H.264 Type |
Baseline Profile/Main Profile/High Profile |
H.265 Type |
Main Profile |
H.264+ |
Main Stream Supports |
H.265+ |
Main Stream Supports |
Region Of Interest (ROI) |
1 Fixed Region For Main Stream |
Audio | |
Audio Compression |
-uf: G.711ulaw/G.711alaw/G.722.1/G.726/Mp2l2/Pcm/Aac |
Audio Bit Rate |
-uf: 64 Kbps (g.711)/16 Kbps (g.722.1)/16 Kbps (g.726)/32 To 160 Kbps (mp2l2)/16 To 64 Kbps (aac) |
Audio Sampling Rate |
-uf: 8 Khz/16 Khz |
Environment Noise Filtering |
-uf: Yes |
Network | |
Protocols |
Tcp/Ip Icmp Http Https Ftp Dhcp Dns Ddns Rtp Rtsp Rtcp Pppoe Ntp Upnptm Smtp Snmp Igmp 802.1x Qos Ipv6 Bonjour Ipv4 Udp Ssl/Tls |
Simultaneous Live View |
Up To 6 Channels |
API |
Open Network Video Interface IsAPI |
User/Host |
Up To 32 Users. 3 Levels: Administrator Operator And User |
Client |
Ivms-4200 Hik-Connect |
Web Browser |
Plug-In RequIRed Live View: Ie 10+ Plug-In Free Live View: Chrome 57.0+ FIRefox 52.0+ Local Service: Chrome 57.0+ FIRefox 52.0+ |
Image | |
Image Settings |
Saturation Brightness Contrast Sharpness Agc White Balance Adjustable By Client Software Or Web Browser |
Day/Night Switch |
Auto Schedule Day Night |
Image Enhancement |
Blc 3d DNR |
Interface | |
Ethernet Interface |
1 Rj45 10 M/100 M Self-Adaptive Ethernet Port |
On-Board Storage |
-uf: Built-In Memory Card Slot Support Microsd Card Up To 256 Gb |
Built-In Microphone |
-uf: Yes |
Hardware Reset |
-uf: Yes |
Event | |
Basic Event |
Motion Detection Video Tampering Exception |
General | |
Linkage Method |
Upload To Ftp Notify Surveillance Center Send Email -uf Also Supports: Upload To Memory Card Trigger Recording Trigger Capture |
Camera Material |
Metal & Plastic |
Storage Conditions |
-30 °c To 60 °c (-22 °f To 140 °f). Humidity 95% Or Less (non-condensing) |
Startup And Operating Conditions |
-30 °c To 60 °c (-22 °f To 140 °f). Humidity 95% Or Less (non-condensing) |
Web Client Language |
English Ukrainian |
General Function |
Anti-Flicker Heartbeat MIRror Password Protection Privacy Mask Watermark Ip Address Filter |
FIRmware Version |
V5.5.120 |
Power Consumption And Current |
12 Vdc 0.4 A Max. 5 W Poe: (802.3af 36 V To 57 V) 0.2 A To 0.15 A Max. 6.5 W |
Power Supply |
12 Vdc ± 25% Poe: 802.3af Class 3 |
Power Interface |
Ø 5.5 Mm Coaxial Power Plug |
Approval | |
Emc |
Fcc Sdoc (47 Cfr Part 15 Subpart B); Ce-Emc (en 55032: 2015 En 61000-3-2: 2014 En 61000-3-3: 2013 En 50130-4: 2011 +a1: 2014); Rcm (as/nzs Cispr 32: 2015); Ic Voc (ices-003: Issue 6 2016); Kc (kn 32: 2015 Kn 35: 2015) |
Safety |
Ul (ul 60950-1); Cb (iec 60950-1:2005 + Am 1:2009 + Am 2:2013 Iec 62368-1:2014); Ce-Lvd (en 60950-1:2005 + Am 1:2009 + Am 2:2013 Iec 62368-1:2014); Bis (is 13252(Part 1):2010+A1:2013+A2:2015) |
Camera Dimension |
177.6 Mm × 66.2 Mm × 67.8 Mm (7.0" × 2.6" × 2.7") |
Camera Weight |
Approx. 270 G (0.6 Lb.) |
Waranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Network Bullet Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
