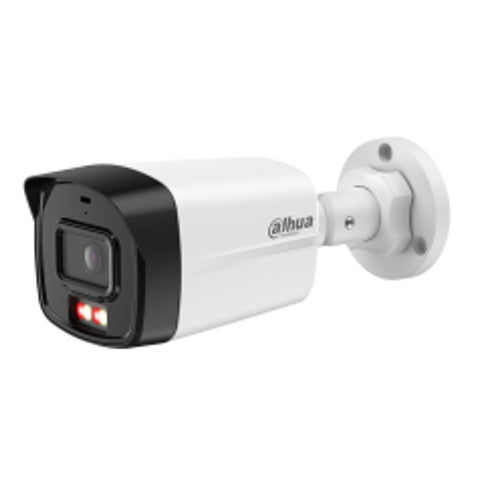

Dahua 2 MP Smart Dual Light WizSense Network Bullet Camera DH-IPC-HFW1239TL-A-IL
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
ProductDescription
-
Key Features
-
2-MP /2.8Inch CMOS image sensor, low luminance, and high definition image
-
Outputs maximum 2 MP (1920 × 1080)@30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in multi-core light, the max. IR distance is 30 m and the maximum warm light distance is 15 m
-
DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Built in Mic
-
12 VDC/PoE power supply, easy for installation
-
IP67 protection
ProductSpecification
| Brand | Dahua | ||||
| Product Type | Network Bullet Camera | ||||
| Product Model | DH-IPC-HFW1239TL-A-IL | ||||
| Camera | |||||
| Image Sensor | 1/2.8Inch CMOS | ||||
| Maximum Resolution | 1920 (H) × 1080 (V) | ||||
| ROM | 16 MB | ||||
| RAM | 64 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Minimum Illumination
| 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) | ||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | up to 30 m (98.43 ft) (IR); up to 15 m (Warm light) | ||||
| Illuminator On/Off Control | Auto; Manual | ||||
| Illuminator Number | 2 (Multi-core (IR + warm) light) | ||||
| Pan/Tilt/Rotation Range
| Pan: 0°–360° | ||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Maximum Aperture | F1.6 | ||||
| Field Of View | 2.8 mm: H: 105°; V: 56°; D: 126° 3.6 mm: H: 87°; V: 44°; D: 105° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft) 3.6 mm: 1.3 m (4.27 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm
| 43.9 m (144.03 ft) | 17.5 m (57.41 ft) | 8.8 m (28.87 ft) | 4.4 m (14.44 ft) | |
| 3.6 mm
| 58.9 m (193.24 ft) | 23.6 m (77.43 ft) | 11.8 m (38.71 ft) | 5.9 m (19.36 ft) | |
| Intelligence | |||||
| IVS (Perimeter Protection) | NA | ||||
| Smart Search | NA | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| Video Frame Rate
| Main stream: 1920 × 1080@(1–25/30 fps ) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | ||||
| Stream Capability | 2 Streams | ||||
| Resolution | 2MP 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–4096 kbps; | ||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | DWDR | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto; Manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region Of Interest (RoI) | Yes (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Image Rotation | 0°/180° | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio | |||||
| Built-In MIC | Yes | ||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726 | ||||
| Alarm | |||||
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| SDK And API | Yes | ||||
| Network Protocol
| IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||
| User/Host | 6 (Total bandwidth: 36 M) | ||||
| Storage | FTP; SFTP; Micro SD card (support maximum 256 GB) | ||||
| Browser | IE; Chrome; Firefox | ||||
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care | ||||
| Mobile Client | iOS; Android | ||||
| Cyber Security
| Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade | ||||
| Certification | |||||
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||
