| Brand | Prama |

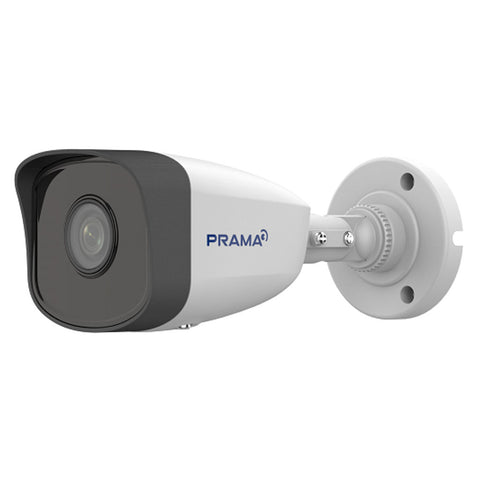

| Product Type | Bullet Camera |
| Product Model | PT-NC140D3-I(D) |
| Camera |
| Image Sensor | 1/3 inch progressive scan CMO |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360° |
| Lens |
| Focal Length & FOV | 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° |
| Lens Mount | M12 |
| Focus | Fixed |
| Aperture | F2.0 |
| Illuminator |
|
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
| Video |
| Maximum Resolution | 2560 × 1440 |
| Main Stream
| 50 Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720 |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Network |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP,
SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | PRAMA VMS Standard, PRAMA-ONLINE |
| Web Browser | Plug-in requIRed live view: IE 10+
Plug-in free live view: Chrome 57.0+, FIRefox 52.0+
Local service: Chrome 57.0+, FIRefox 52.0+ |
| Image |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable
by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Image Enhancement | BLC, 3D DNR |
| Interface |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
| Basic Event | Motion detection, video tampering, exception |
| General |
| Linkage Method | Upload to FTP, notify surveillance center, send email |
| Camera Material | Metal & Plastic |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing |
| Startup and Operating
Conditions | 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing |
| Web Client Language | English |
| General Function | Anti-flicker, heartbeat, mIRror, password protection, privacy mask,
watermark, IP address filter |
| Firmware Version | V5.5.120 |
| Power Consumption and
Current | 12 VDC, 0.4 A, Maximum 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, Maximum 6.5 W |
| Power Supply | 12 VDC ± 25%
PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Protection | IP67 (IEC 60529-2013) |
| Warranty | As Per Manufacturer Terms and Condition |
