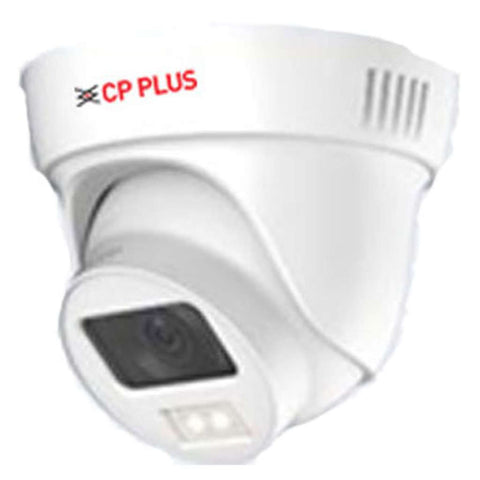

CP Plus 2.4MP Full Color Guard+ Dome Camera 20Mtr CP-GPC-DA24PL2C-SE

CP Plus 2.4MP Full Color Guard+ Dome Camera 20Mtr CP-GPC-DA24PL2C-SE


₹ 2,110.00

Quantity

Pack Qty : 1



Delivery Availability
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres)

  • Max 25/30fps@2.4MP

  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC

  • 3.6mm Fixed lens (2.8mm Optional)

  • Illumination Distance of 20 Mtrs, IP67

  • Support 24/7 color Imaging

  • Support Built-in Mic

  • CVI/CVBS/AHD/TVI switchable

  • Functions

  • Illumination Distance

  • Numerous crystal Illumination provide detailed images even in very low light conditions

  • These Illumination adjust the infrared intensity for distinct images in dark environments for up to
    20mtrs

  • UNI+ Technology

  • CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and HDx,making upgrading simple and hassle-free

  • Power Protection

  • With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions

  • True Day/Night (ICR)

  • When the scene is too dark,the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens

  • It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens

  • Plug & Play

  • CP PLUS Guard+ cameras are simple to configure and install

Product Specification

Brand

CP Plus

Product Type

Dome Camera

Product Model

CP-GPC-DA24PL2C-SE

Image Sensor

1/2.8" 2.4MP CMOS (0.9071 centimetres)

Minimum Illumination

0.01Lux/F1.6, 0 Lux white light on

Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s

White Balance

Auto / Manual

Lens

3.6mm (2.8mm Optional)

Lens Type

Fixed-Focal

Mount Type

M12

Maximum Aperture

F1.6

Iris Type

Fixed

S/N Ratio

>65dB

Close Focus Distance

2.8mm: 0.7m ; 3.6mm: 1.2m

DORI Distance

2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4mm (Identify)
3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify)

Noise Reduction

2D-NR

Gain Control (AGC)

Auto/Manual

Back Light Compensation

BLC/ DWDR

Angle Of View

2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical)
3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)

Video Streaming

CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps;
AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps;
NTSC: 1080P@30fps; CVBS: PAL: 960H; NTSC: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio

Built-in Mic

Illumination

Illumination Distance of 20 Mtr

Smart Light

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Power Source

12V DC ±30%

Power Consumption

Maximum 3.1W (12V DC, White Light on)

Operating Temperature

-40°C ~ +55°C; Less than <95% RH (non-condensation)

Storage Temperature

-40°C ~ +55°C; Less than <95% RH (non-condensation)

Weatherproof Standard

IP67

Casing

Plastic

Colour

White

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (MM) ΦxH

97 x 86.6

Unit Of Measurement

1 Piece

Weight

0.350 kg

Generic Name

Dome Camera

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
