Out of Stock!

SKU # 1000122415

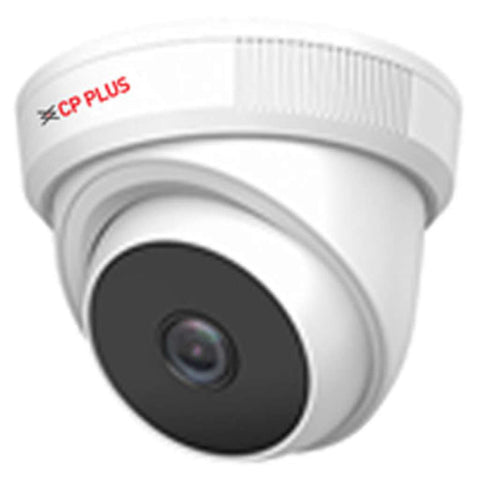

CP Plus 5MP Full HD IR Dome Camera 20Mtr CP-USC-DC51PL2C

CP Plus 5MP Full HD IR Dome Camera 20Mtr CP-USC-DC51PL2C


₹ 2,060.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get Rs. 50/- off on a purchase of Rs. 1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 1/2.7” 5MP Progressive scan CMOS Image Sensor (0.9407 centimetres)

  • Max 25fps@5MP (16:9 video output)

  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC

  • 3.6mm Fixed lens (2.8mm optional)

  • IR Range of 30Mtrs., Smart IR, IP67

  • CVI/CVBS/AHD/TVI switchable

  • Support Starlight Technology

  • Functions

  • LED

  • LEDs provide detailed images even in very low light conditions

  • These LEDs adjust the infrared intensity for distinct images in dark environments for up to 40mtrs

  • UNI+ Technology

  • CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and HDx,making upgrading simple and hassle-free

  • OSD Menu Support

  • CP PLUS HD analog cameras come with their own menu using which the camera settings can be managed, for instance, the signal type can be changed and other sensor level adjustments
    be made

  • Starlight Technology

  • This camera is widely used to provide sharper and clearer picture quality with the help of its exceptional starlight sensitivity as the camera improves night vision in low light conditions

  • This technology is useful in conditions with extremely low light as the starlight technology turns almost completely dark images into those of clear colors

  • Power Protection

  • With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions

  • Plug & Play

  • CP PLUS Analog HD cameras are simple to configure and install

Product Specification

Brand

CP Plus

Product Type

Bullet Camera

Product Model

CP-USC-TA50L3-S

Image Sensor

1/2.7" 5MP PS CMOS (0.9407 centimetres)

Minimum Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Effective Pixels

2880 (H) × 1620 (V)

Shutter Speed

PAL: 1/25s–1/100000s ; NTSC: 1/30s-1/100000s

White Balance

Auto / Manual

Close Focus Distance

3.6 m : 1.6 m (5.2 ft); 2.8 mm: 0.9 m (3.0 ft)

Mount Type

M12

Maximum Aperture

F1.6

Lens Type

Fixed-Focal

Iris Type

Fixed Iris

Lens

3.6mm (2.8mm optional)

DORI Distance

3.6mm: 80m (Detect) 32m (Observe) 16m (Recognize) 8m (Identify)
2.8mm: 63.6m (Detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify)

S/N Ratio

>65dB

Back Light Compensation

BLC/HLC/DWDR

Angle Of View

3.6mm: 109° × 92° × 48° (diagonal × horizontal × vertical)
2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical)

Video Streaming

CVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps;
1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30fps TVI: PAL: 4M@25 fps;
NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

ICR

Auto switch by ICR

Noise Reduction

2D-NR

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Gain Control (AGC)

Auto/Manual

IR

IR Range of 30Mtr., Smart IR

Power Source

12V DC ±30%

Power Consumption

Maximum 3.7W (12V DC, IR on)

Operating Temperature

-40°C ~ +60°C (-40°F ~ +140°F) ; <95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)

Weatherproof Standard

IP67

Casing

Plastic throughout the whole casing

Colour

White

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (MM) LxHxD

161.3 x 69.7 x 70

Unit Of Measurement

1 Piece

Weight

0.190 kg

Generic Name

Bullet Camera

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
