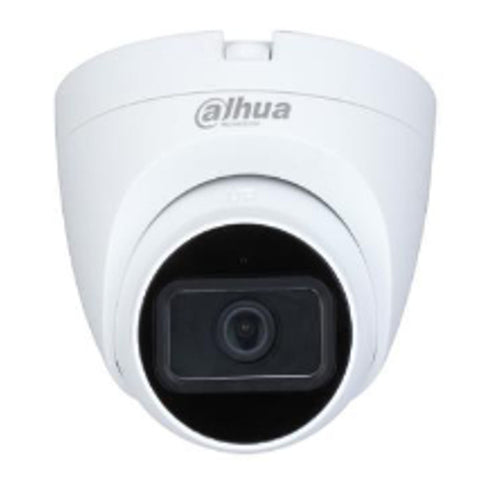

Dahua 5 MP HDCVI Starlight IR Eyeball Dome Camera DH-HAC-HDW1501TRQP-A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
The parameters and datasheets below can only be applied to 1501-S2 series
-
In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version
-
Maximum 25 fps@5MP (16:9 video output)
-
Quick-to-install eyeball saves installation time
-
3.6 mm fixed lens (2.8 mm optional)
-
Maximum IR length 25 m, Smart IR
-
Built-in mic
-
CVI/CVBS/AHD/TVI switchable
-
IP50, DC12V
-
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI The Lite series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price
-
It offers various motorized/fixed lens models with a multi-language OSD and HD/SD switchable output
-
Its structural flexibility and high cost-per-formance makes the camera an ideal choice for SMB solutions
-
Functions
-
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e video, audio, data and power
-
Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm
-
Moreover, HDCVI technology supports PoC for construction flexibility
-
Easy Installation
-
HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball
-
Quick-to-install camera reduces time and labor costs
-
Long Distance Transmission
-
HDCVI technology guarantees real-time transmission at long distance without any loss
-
It supports up to 700 m for 5MP HD video via coaxial cable, and up to 300 m via UTP cable
-
Simplicity
-
HDCVI technology inherits the feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection
-
HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling
-
The Plug And Play
-
approach enables full HD video surveillance without the hassle of con- figuring a network
Product Specification
| Brand | Dahua | ||||
| Product Type | Dome Camera | ||||
| Product Model | DH-HAC-HDW1501TRQP-A | ||||
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Maximum Resolution | 2880 (H) × 1620 (V) | ||||
| Pixel | 5MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25–1/100000 s NTSC: 1/30–1/100000 s | ||||
| Minimun Illumination | 0.01 Lux/F1.6, 30IRE, 0 Lux IR on | ||||
| S/N Ratio | More than 65 dB | ||||
| Illumination Distance | 25m（82.0 ft） | ||||
| Illuminator On/Off Control | Auto;manual | ||||
| Lens | |||||
| Lens Type | Fixed lens / Fixed iris | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6 mm (2.8 mm Optional) | ||||
| Maximum Aperture | F1.6 | ||||
| Angle Of View | 2.8 mm: 132° × 111° × 58° (diagonal × horizontal × vertical) 3.6 mm: 109° × 92° × 48° (diagonal × horizontal × vertical) | ||||
| Focus Control | N/A | ||||
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 63.6 m (208.7 ft) | 25.4 m (83.3 ft) | 12.7 m (41.7 ft) | 56.4 m (21.0ft) | |
| 3.6mm | 80 m (262.5 ft) | 32 m (105.0 ft) | 16 m (52.5 ft) | 8 m (26.2 ft) | |
| Pan / Tilt / Rotation | |||||
| Pan / Tilt / Rotation | Pan: 0° – 360° Tilt: 0° – 90° Rotation: 0° – 360° | ||||
| Video | |||||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480 | ||||
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H | ||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Day/Night | Auto (ICR) / Manual | ||||
| OSD Menu | Multi-language | ||||
| BLC Mode | BLC / HLC / DWDR | ||||
| WDR | DWDR | ||||
| Gain Control | AGC | ||||
| Noise Reduction | 2D | ||||
| White Balance | Auto;manual | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off / On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3- 3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | ||||
| Interface | |||||
| Audio Interface | One channel built-in mic | ||||
| Eelectrical | |||||
| Power Supply | 12V DC ±30% | ||||
| Power Consumption | Maximum 3.0W (12V DC, IR on) | ||||
| Environmental | |||||
| Operating Conditions | –40°C to +60°C (–40°F to +140°F) /Less than 95% RH Start up should be done at above –40°C (–40°F) | ||||
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) /Less than 95% RH | ||||
| Ingress Protection & Vandal Resistance | IP50 | ||||
| Construction | |||||
| Casing | Plastic | ||||
| Dimensions | Φ97.1 × 93.0 mm | ||||
| Gross Weight | 0.23 kg (0.51lb) | ||||
| Net Weight | 0.17 kg (0.37lb) | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
| Dimension (CM) - L x B x H | 198.9 × 80.2 × 76.2 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.23 kg |
| Generic Type | Dome Camera |
| Manufacturer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Packer Details | Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
| Importer Details | Dahua Technology India Pvt.L |
