SKU # 1000083046

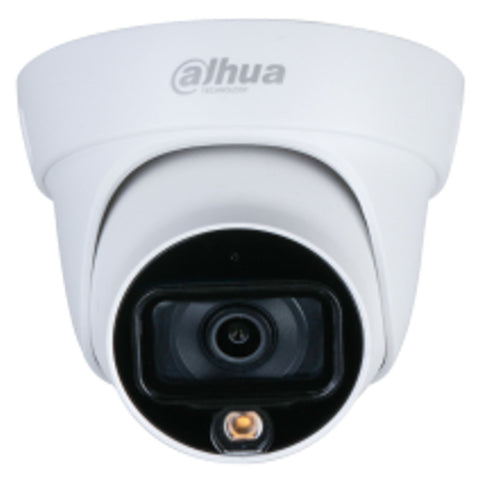

Dahua Full Color Dome Audio Camera 2MP DH-HAC-HDW1209TLQP-A-LED
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Full-color starlight
-
20m LED distance
-
Max. 30fps@1080P
-
CVI/CVBS/AHD/TVI switchable
-
Audio Yes
-
2.8mm fixed lens
-
IP67, 12V±30% DC
Product Specification
Brand |
Dahua |
||||
Product Type |
Dome Camera |
||||
Model |
DH-HAC-HDW1209TLQP-A-LED |
||||
Camera | |||||
Image Sensor |
1/2.8 inch 2.16 Mega Pixels CMOS |
||||
Effective Pixels |
1920 (H)×1080 (V), 2MP |
||||
Electronic Shutter Speed |
PAL:1/25s–1/100000s |
||||
Minimum Illumination |
0.005Lux/F1.6, 30IRE, 0Lux white Light on |
||||
Fill Light (White Light) Distance |
Distance up to 20m (65.61ft) |
||||
Fill Light On/Off Control |
Auto; Manual |
||||
Fill Light Number |
1 |
||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||
HDW1209TLQP-A-LED Full Color Lens | |||||
Lens Type |
Fixed-focal |
||||
Mount Type |
M12 |
||||
Focal Length |
2.8m |
||||
Max. Aperture |
F1.6 |
||||
Angle of View |
2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical) |
||||
Iris Type |
Fixed iris |
||||
Close Focus Distance |
2.8mm: 0.6m (1.97ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize ont> |
Identify |
2.8mm |
38.6m (126.6ft) |
15.4m (50.5ft) |
7.7m (25.3ft) |
3.9m (12.8ft) |
|
3.6mm |
55.2m (181.1ft) |
22.1m (72.5ft) |
11.0m (36.0ft) |
5.5m (18.0ft) |
|
Video | |||||
Video Frame Rate |
CVI: |
||||
BLC |
BLC/HLC/WDR |
||||
WDR |
DWDR |
||||
White Balance |
Auto; Manual |
||||
Gain Control |
Auto; Manual |
||||
Noise Reduction |
2D NR |
||||
Smart Light |
Yes |
||||
Electronic Defog |
Yes |
||||
Digital Zoom |
16X |
||||
Mirror |
Off/On |
||||
Privacy Masking |
Off/On (4 area, rectangle) |
||||
Certification | |||||
Certifications |
CE (EN55032, EN55024, EN50130-4,EN60950-1) |
||||
Interface | |||||
Audio Interface |
Audio Yes |
||||
Port | |||||
Video Port |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
Power | |||||
Power Supply |
12V ±30% DC |
||||
Power Consumption |
Max 3W (12V DC, white light on) |
||||
Environment | |||||
Operating Temperature |
-40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
||||
Storage Temperature |
-40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
||||
Protection Grade |
IP67 |
||||
Structure | |||||
Casing |
Inner core: metal+plastic; cover: plastic;pedestal: plastic |
||||
Dimensions |
φ97mm×85.8mm (φ3.82″×3.38″) |
||||
Net Weight |
0.22Kg (0.49lb) |
||||
Gross Weight |
0.28Kg (0.62lb) |
||||
Warranty |
As Per Manufacturer Terms and Condition |
||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
