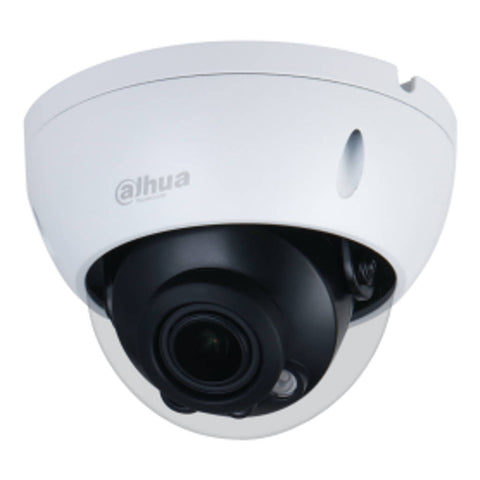

Dahua Lite IR Vari Focal Dome Network Camera 4MP DH-IPC-HDBW2431RP-ZAS-S2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
4MP, 1/3” CMOS image sensor, low illuMinimumance, high image definition
Outputs 4MP (2560 × 1440)@25/30 fps, Maximum supports 4MP (2688 × 1520)@20 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, trIPwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports Maximum 256 GB Micro SD card
12V DC/PoE power supply
IP67, IK10 protection
Series Overview
With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidthand storage space
This camera adopts the latest starlight technology and displays better color image in the condition of low Illumination
Itsupports SD card storage, dust-proof function, waterproof functio andvandalprooffunction,complying with the standards of IP67
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmissio
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightnesscontrast
The bright and dark area can get clear video even in high brightness environment or with backlight shadow
Starlight
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuMinimumance. It widely applies to various environments of low illuMinimumance
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as trIPwire and intrusion
Cyber Security
Dahua network cameras employ a series of security technologies,including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage
These technologies improve the camera's defense against external cyber threatsandpreventmalicious programs from compromising the device
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soa
It has dust-proof function, and the enclosure can works normal after soakingin 1 m deep water for 30 Minimumutes
-
Wide voltage: The camera allows ±30% (for some power supplies)
input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Product Specification
| Brand | Dahua | ||||
| Product Type | Netwok Camera | ||||
| Product Code | DH-IPC-HDBW2431RP-ZAS-S2 | ||||
| Image Sensor | 1/3” 4Megapixel progressive CMOS | ||||
| Maximum Resolution | 2688 (H) × 1520 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
| Minimum Illumination | 0.008 Lux @ F1.5 | ||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | 40 m (131.23 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | 2 (IR LED) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° | ||||
| Lens Type | Motorized vari-focal | ||||
| Mount Type | φ14 | ||||
| Focal Length | 2.7 mm–13.5 mm | ||||
| Maximum Aperture | F1.5 | ||||
| Field of View | Horizontal: 104°–27° Vertical: 55°–15° Diagonal: 124°–31° | ||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 0.8 m–0.8 m (2.62 ft–2.62 ft) | ||||
| DORI Distance | |||||
| Lens | Detect | Observe | Recognize | Identify | |
| W | 64 m (209.97 ft) | 25.6 m (83.99 ft) | 12.8 m (41.99 ft) | 6.4 m (21 ft) | |
| T | 220 m (721.78 ft) | 88 m (288.71 ft) | 44 m (144.36 ft) | 22 m (72.18 ft) | |
| IVS | TrIPwire; intrusion | ||||
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+/ Smart H.264+ | ||||
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps-20 fps) 2560 × 1440 (1 fps-25/30 fps) Sub stream: 704 × 576 (1 fps-25 fps) 704 × 480 (1 fps-30 fps) | ||||
| Stream Capability | 2 streams | ||||
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest(ROI) | Yes (4 areas) | ||||
| Smart Illumination | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 4 areas | ||||
| Audio Compression | G.711a; G.711Mu; G.726 | ||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; trIPwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm | ||||
| Network | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logsIP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusteexecution; trusted upgrade | ||||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; MilestoneGenetec | ||||
| User/Host | 20 | ||||
| Storage | FTP; Micro SD card (support Maximum 256 G); NAS; SFTP | ||||
| Browser | IE Chrome Firefox | ||||
| Management Software | Smart PSS; DSS; DMSS | ||||
| Mobile Phone | IOS; AndROId | ||||
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 1 channel In: 5mA 5VDC | ||||
| Alarm Output | 1 channel Out: 300mA 12VDC | ||||
| Power Supply | 12V DC/PoE (802.3af) | ||||
| Power Consumption | < 6.5W | ||||
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than ≤ 95% RH | ||||
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) | ||||
| Protection | IP67, IK10 | ||||
| Casing | Metal | ||||
| Dimensions | Φ122 × 88.9 mm | ||||
| Weight | 0.63 kg | ||||
| Warranty | As Per Manufacturer Terms and Condition | ||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
