SKU # 1000094965

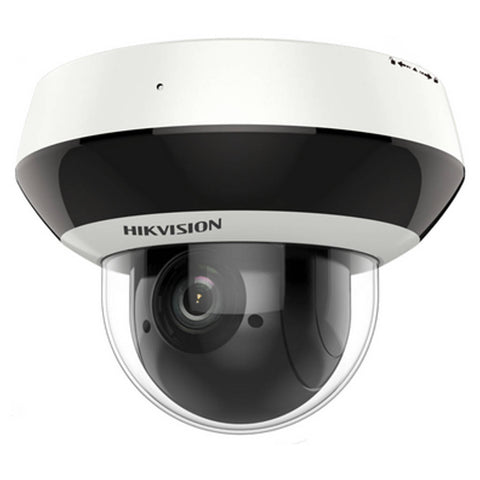

Hikvision Value Series IR Network Speed Dome Camera 2 Inch 4MP 4X DS-2DE2A404IW-DE3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
-
Up to 20m IR range ensures safety at night
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-2DE2A404IW-DE3 |
|
Product Model |
Dome Camera |
|
Series |
Value |
|
Lens |
Lens |
|
Focal Length |
2.8 mm to 12 mm, 4× optical zoom |
|
FOV |
Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele) |
|
Aperture |
F1.2 |
|
Zoom Speed |
Approx.2 s (optical lens, wide-tele) |
|
Working Distance |
10 mm to 1500 mm (wide-tele) |
|
Image |
|
|
Image Enhancement |
3D DNR, EIS, Regional Exposure, Regional Focus |
|
Max. Resolution |
2560 × 1440 |
|
Main Stream |
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub-Stream |
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
|
Third Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
|
Interface |
|
|
Audio Input |
1-ch audio input (mic in/line in) , 1 built-in microphone |
|
Audio Output |
1-ch audio output |
|
Network Interface |
1 RJ45 10 M/100 M Ethernet, PoE |
|
Network |
|
|
Protocols |
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;SMTP;RTCP;RTP;ISUP |
|
Network Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
|
API |
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
|
Simultaneous Live View |
Up to 20 channels |
|
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
|
Client |
iVMS-4200, Hik-Central, Hik-Connect |
|
Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
|
Web Browser |
IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+ |
|
Alarm Linkage |
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
|
Compression Standard |
|
|
H.264+ |
Yes |
|
H.265+ |
Yes |
|
H.264 Type |
Baseline Profile/Main Profile/High Profile |
|
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG |
|
Video Bitrate |
32 Kbps to 16384 Kbps |
|
Audio Compression |
G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
|
Audio Bitrate |
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2) |
|
SVC |
Yes |
|
Camera |
|
|
Image Sensor |
1/3" progressive scan CMOS |
|
Min.lllumination |
Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
|
White Balance |
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
|
Gain |
Auto/Manual |
|
Shutter Time |
50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s |
|
Day & Night |
IR Cut Filter |
|
Digital Zoom |
16× |
|
Privacy Mask |
24 programmable privacy masks |
|
Focus Mode |
Auto/Semi-automatic/Manual |
|
WDR |
120 dB WDR |
|
Supplement Light |
|
|
IR Distance |
20 m |
|
Smart IR |
Yes |
|
Ptz |
|
|
Movement Range(pan) |
0° to 355° |
|
Movement Range(Tilt) |
From 0° to 90° |
|
Pan Speed |
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
|
Tilt Speed |
Configurable, from 0.1°/s to 100°/s Preset Speed: 100°/s |
|
Proportional Zoom |
Yes |
|
Presets |
300 |
|
Power-off Memory |
yes |
|
Smart Features |
|
|
Basic Event Detection |
Motion Detection, Video Tampering Detection, Exception |
|
Smart Detection |
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
|
Smart Record |
ANR (Automatic Network Replenishment), Dual-VCA |
|
ROI |
Main stream, sub-stream, and third stream respectively support four fixed areas. |
|
General |
|
|
Power |
12 VDC (Max. 10.9 W, including Max. 4.2 W for IR) PoE 802.3af (Max. 12.2 W, including Max. 4.2 W for IR) |
|
Working Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Power |
12 VDC (Max. 10.9 W, including Max. 4.2 W for IR) PoE 802.3af (Max. 12.2 W, including Max. 4.2 W for IR) |
|
Protection Level |
IP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5 |
|
Material |
Aluminum alloy, PC, PC+ABS |
|
Working Humidity |
≤ 90% |
|
Dimension |
Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00") |
|
Weight |
0.53 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
