SKU # 1000102847

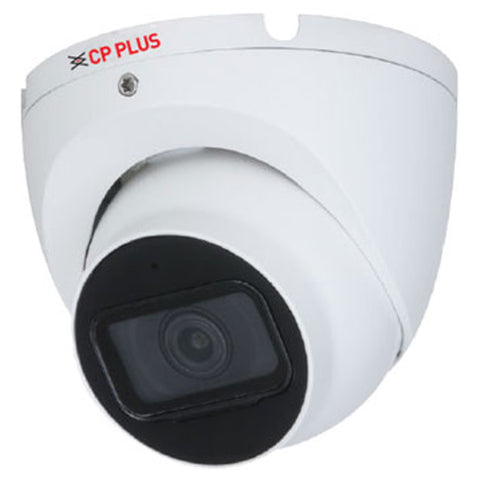

CP Plus IR Network Dome Camera 8MP 30Mtr CP-UNC-DA81L3C
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.7” 8MP PS CMOS Image Sensor(0.9407 centimetres)
-
Maximum 8MP(3840 × 2160)@15fps and supports(2688 × 1520) @25/30fps
-
Smart H.265+ and Smart H.264+ dual-stream encoding
-
DWDR, Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
3.6mm lens(2.8mm optional)
-
IR Range of 30 Mtrs, IP67, PoE
-
Support Built-in Mic
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
Product Specification
| Brand | CP Plus |
| Product Type | Dome Camera |
| Product Model | CP-UNC-DA81L3C |
| Image Sensor | 1/2.7” 8MP PS CMOS Image Sensor(0.9407 centimetres) |
| Minimum Illumination | 0.04 Lux@F2.0(Color, 30 IRE) 0.004 Lux@F2.0(B/W, 30 IRE) 0 Lux(IR on) |
| Effective Pixels | 3840(H) x 2160(V) |
| Bodytype | Dome |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Lens | 3.6mm(2.8mm Optional) |
| IRIS | Fixed |
| Close Focus Distance | 2.8mm: 1.0m ; 3.6mm: 1.9m |
| S/N Ratio | >56dB |
| Gain Control(AGC) | Auto/Manual |
| Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Video Compression | Smart H.265+/H.265/Smart H.264+/H.264/ H.264B/ MJPEG(only supported by the sub stream) |
| Maximum Aperture | F2.0 |
| Angle Of View | 3.6mm: Horizontal: 87°; Vertical: 47°; Diagonal: 104° 2.8mm: Horizontal: 105°; Vertical: 56°; Diagonal: 125° |
| Lens Type | Fixed-focal |
| Back Light Computer | BLC/ HLC/ DWDR |
| Frame Rate | Main stream: 3840 × 2160(1 fps–15 fps) 2688 × 1520(1 fps–25/30 fps) Sub stream: 704 × 576(1 fps–25 fps) 704 × 480(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| DORI Distance | 3.6mm– 106.7m(Detect) 42.7m(Observe) 21.3m(Recognize) 10.7m(Identify) 2.8mm– 74.7m(Detect) 29.9m(Observe) 14.9m(Recognize) 7.5m(Identify) |
| Resolution | 3840 × 2160(3840 × 2160); 3072 × 2048(3072 × 2048); 3072 ×1728(3072 × 1728); 2592 × 1944(2592 × 1944); 2688 × 1520(2688 × 1520); 3M(2048 × 1536); 2304 × 1296(2304 × 1296); 1080p(1920 × 1080); 1.3M(1280 × 960); 720p(1280 × 720); D1(704 × 576/704 × 480); VGA(640 × 480); CIF(352 × 288/352 × 240) |
| Motion Detection | OFF/ON(4 areas, rectangular) |
| Privacy Mask | 4 areas |
| ICR | Auto(ICR)/Color/B/W |
| ROI | Yes(4 areas) |
| Bit Rate | H.264: 32 Kbps–8192 Kbps ; H.265: 12 Kbps–8192 Kbps |
| Audio | Built-in Mic |
| Audio Compression | G.711A; G.711Mu; G.726; PCM |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast, ONVIF(Profile S/Profile T); CGI; InstaOn; Genetec; Milestone |
| SDK And API | Yes |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception |
| Ethernet | RJ-45(10/100Base-T) |
| User Account | 6(Total bandwidth: 48 M) |
| Smart Phone | iPhone, iPad, Android Phone |
| IR Range | IR Range of 30 Mtr., Smart IR |
| Operating Temperature | -40° C ~ +55° C(-40° F ~ +131° F) / Less than <95% RH |
| Power Source | DC12V, PoE(802.3af) |
| Power Consumption | 2.3W(12V DC); 3.1W(PoE) |
| Weatherproof Standard | IP67 |
| Dimension | 85.6 mm × Φ94.0 mm |
| Casing | Metal |
| Weight | 0.32 kg |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country of Origin |
India |
