SKU # 1000061441

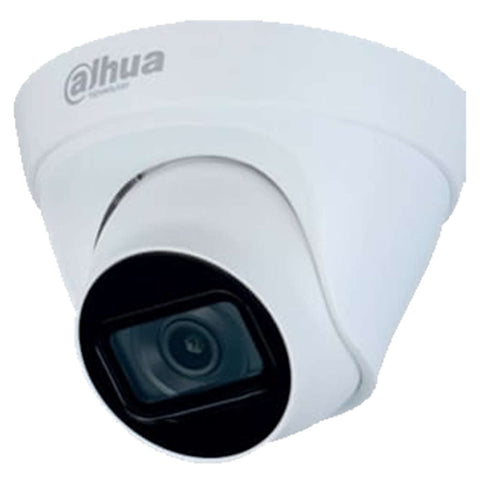

Dahua 2MP Entry IR Fixed Focal Eyeball Network Camera DH-IPC-HDW1230T1P-S4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
-
Outputs max. 2MP (1920 × 1080p) @25/30 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max. IR distance: 30 m
-
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-
Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
-
12V DC/PoE power support
-
IP67 protection
Product Specification
|
Brand |
Dahua |
|
Product Type |
Network Camera |
|
Product Code |
DH-IPC-HDW1230T1P-S4 |
|
Camera |
|
|
Image Sensor |
1/2.7" 2Megapixel progressive CMOS |
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
ROM |
16 MB |
|
RAM |
64 MB |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
|
Min. Illumination |
0.01 Lux @F2.0 |
|
IR Distance |
30 m (98.4 ft) |
|
IR On/Off Control |
Auto/Manual |
|
IR LEDs Number |
1 |
|
Pan/Tilt/Rotation Range |
Horizontal: 0°–355° Vertical: 0°–78° Rotation: 0°–360° |
|
Lens |
|
|
Lens Type |
Fixed |
|
Mount Type |
M12 |
|
Focal Length |
2.8 mm 3.6 mm |
|
Max. Aperture |
F2.0 F2.0 |
|
Field of View |
2.8 mm: Horizontal: 105° Vertical: 57° Diagonal: 125° 3.6 mm: Horizontal: 87° Vertical: 47° Diagonal: 104° |
|
Iris Type |
Fixed aperture |
|
Close Focus Distance |
0.5 m (1.6 ft) 0.9 m (3.0 ft) |
|
Video |
|
|
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
|
Smart Codec |
Yes |
|
Video Frame Rate |
Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
Stream Capability |
2 streams |
|
Resolution |
1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240) |
|
Bit Rate Control |
CBR/VBR |
|
Video Bit Rate |
H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
BLC |
Yes |
|
HLC |
Yes |
|
WDR |
DWDR |
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
|
Gain Control |
Manual/Auto |
|
Noise Reduction |
3D DNR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Region of Interest(RoI) |
Yes (4 areas) |
|
Electronic Image Stabilization(EIS) |
Yes |
|
Smart IR |
Yes |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) |
|
Mirror |
Yes |
|
Privacy Masking |
4 areas |
|
Network |
|
|
Network |
RJ-45 (10/100 Base-T) |
|
Protocol |
IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
|
Interoperability |
ONVIF (Profile G); CGI; P2P; Genetec |
|
User/Host |
20 |
|
Edge Storage |
FTP; Dahua Cloud |
|
Browser |
IE Chrome Firefox |
|
Management Software |
Smart PSS; DSS; DMSS |
|
Mobile Phone |
IOS; Android |
|
Certification |
|
|
Certifications |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
|
Power |
|
|
Power Supply |
12V DC/PoE (802.3af) |
|
Power Consumption |
<4.3 W |
|
Environment |
|
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
|
Ingress Protection |
IP67 |
|
Structure |
|
|
Casing |
Metal + plastic |
|
Dimensions |
85.5 mm × Φ109 mm (3.4" × Φ4.3") |
|
Net Weight |
0.24 kg (0.5 lb) |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
