SKU # 1000076168

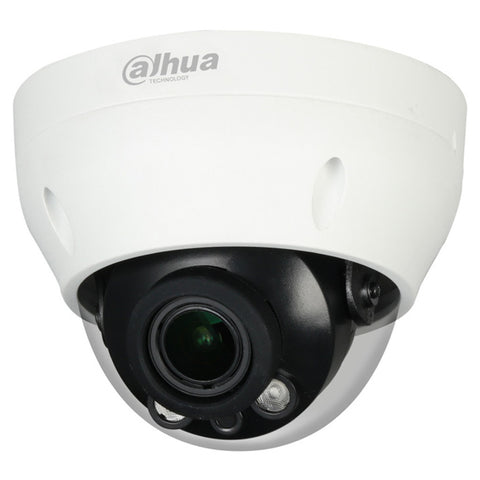

Dahua Entry IR Vari-focal Dome Netwok Camera 4MP DH-IPC-HDPW1431R1P-ZS-S4
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
4MP, 1/3” CMOS image sensor, low illuminance, high image definition
-
Outputs 4MP (2560 × 1440) 25/30 fps, and supports max. 4MP (2688 × 1520) 20 fps
-
H.265 codec, high compression rate, ultra-low bit rate
-
Built-in IR LED, max. IR distance: 40 m
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
-
Image Rotation, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
-
Supports max. 256 GB SD card
-
12V DC/PoE power supply
-
IP67 protection
-
Features
-
Smart H.265+ & Smart H.264+
-
Motion Detection
-
Wide Dynamic Range (WDR)
-
Smart Illumination
-
Cyber Security
-
Protection (IP67, wide voltage)
Product Specification
Brand |
Dahua |
||||
Product Type |
Network Camera |
||||
Series |
Entry |
||||
Product Code |
DH-IPC-HDPW1431R1P-ZS-S4 |
||||
Camera | |||||
Image Sensor |
1/3 ”4Megapixel progressive CMOS |
||||
Max. Resolution |
2688 (H) ×1520 (V) |
||||
Rom |
128 MB |
||||
Ram |
128 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
||||
S/N Ratio |
> 56 dB |
||||
Min. Illumination |
0.03 Lux F1.7 |
||||
Illumination Distance |
40 m (131.2 ft) |
||||
Illuminator On/Off Control |
Auto/Manual |
||||
Illuminator Number |
2 (IR LED) |
||||
Pan/Tilt/Rotation Range |
Pan : 0°–355° Tilt: 0°–75° Rotation 0°–355° |
||||
Lens | |||||
Lens Type |
Motorized vari-focal |
||||
Mount Type |
φ14 |
||||
Focal Length |
2.8 mm–12 mm |
||||
Max. Aperture |
F1.7 |
||||
Field Of View |
Horizontal: 98°–31° Vertical: 55°–18° Diagonal: 116°–36° |
||||
IRIS Type |
Fixed |
||||
Close Focus Distance |
0.8 m (2.6 ft) |
||||
Dori Distance | |||||
Lens |
Detect |
Observe |
Recognize |
Identify |
|
W |
66.0 M (183.7 Ft) |
26.4 m (73.5 ft) |
13.2 m (36.7 ft) |
6.6 m (18.4 ft) |
|
T |
200.0 M (656.2 Ft) |
80.0 m (262.5 ft) |
40.0m (131.2 ft) |
20.0 m (65.6 ft) |
|
Video | |||||
Video Compression |
H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
||||
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
Video Frame Rate |
Main Stream: 2688 × 1520 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) Sub Stream: 704 × 576 (1 fps–20/25 fps) 704 × 480 (1 fps–20/30 fps) |
||||
Stream Capability |
2 streams |
||||
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240) |
||||
Bit Rate Control |
CBR; VBR |
||||
Video Bit Rate |
H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
||||
Day/Night |
Auto(ICR)/Color/B/W |
||||
BLC |
Yes |
||||
Hlc |
Yes |
||||
WDR |
120 dB |
||||
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
Gain Control |
Manual/Auto |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region Of Interest(Roi) |
Yes (4 areas) |
||||
Smart Illumination |
Yes |
||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Alarm | |||||
Alarm Event |
Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection; |
||||
Network | |||||
Network |
RJ-45 (10/100 Base-T) |
||||
Sdk And Api |
Yes |
||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
||||
User/Host |
20 |
||||
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
||||
Browser |
IE Chrome Firefox |
||||
Management Software |
Smart PSS; DSS; DMSS |
||||
Mobile Phone |
IOS; Android |
||||
Certifications |
CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
||||
Power | |||||
Power Supply |
12V DC/POE (802.3af) |
||||
Power Consumption |
< 6.4W |
||||
Environment | |||||
Operating Conditions |
-30°C to +55°C (-22°F to +131°F) /less than≤95% |
||||
Strorage Conditions |
-40°C to +60°C (-40°F to +140°F) |
||||
Protection |
IP67 |
||||
Structure | |||||
Casing |
Plastic |
||||
Dimensions |
98.1 mm × Φ122 mm (3.9" × Φ4.8") |
||||
Net Weight |
0.39 kg (0.9 lb) |
||||
Gross Weight |
0.57 kg (1.3 lb) |
||||
Warranty |
As Per Manufacturer Terms and Condition |
||||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Dome Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
